Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

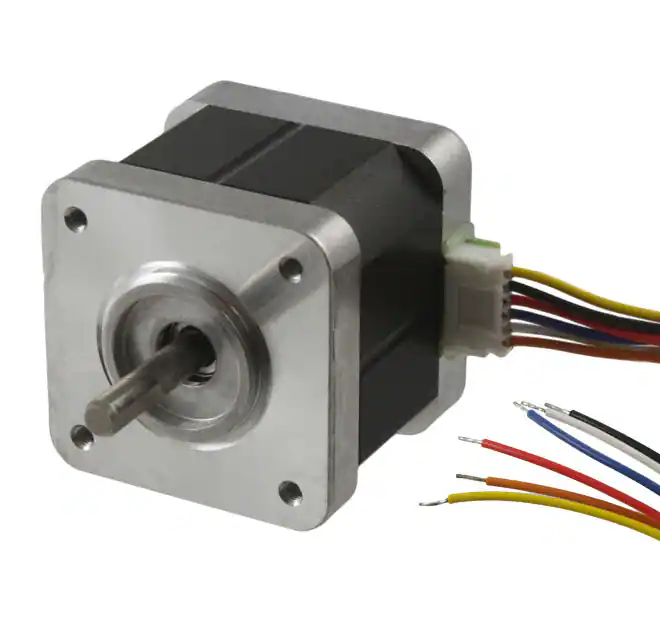

17PY-Z845-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
17PY | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.2 A | 400.0 | 0.9° | ±5% | 36.82 / 260 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 2.9 Ohms | Flatted Shaft |
|

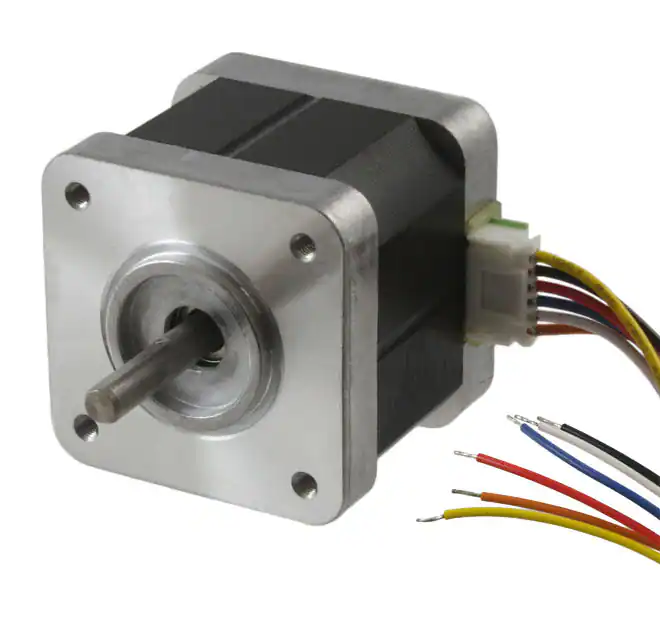

17PY-Z858-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
17PY | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 750 mA | 400.0 | 0.9° | ±5% | 36.82 / 260 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 7.4 Ohms | Flatted Shaft |
|

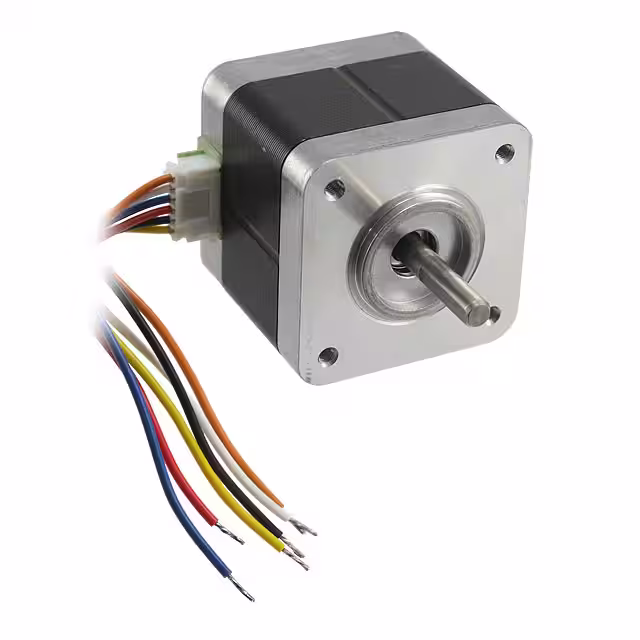

17PM-K845-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
17PM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.2 A | 200.0 | 1.8° | ±5% | 38.24 / 270 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 2.9 Ohms | Flatted Shaft |
|

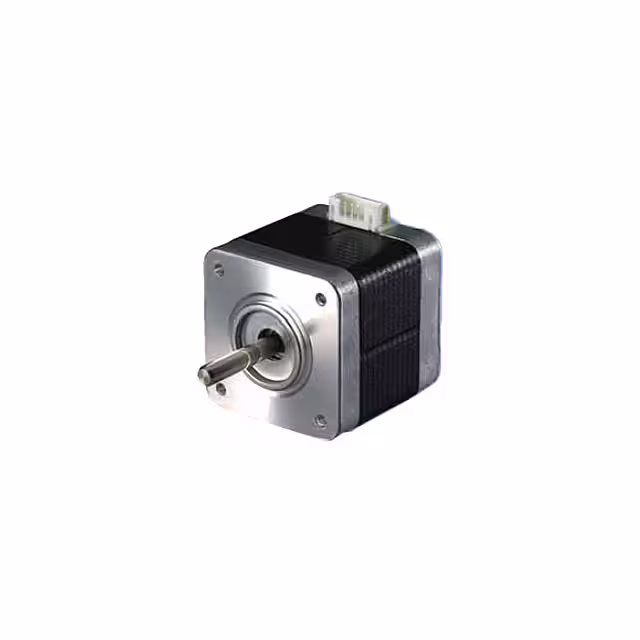

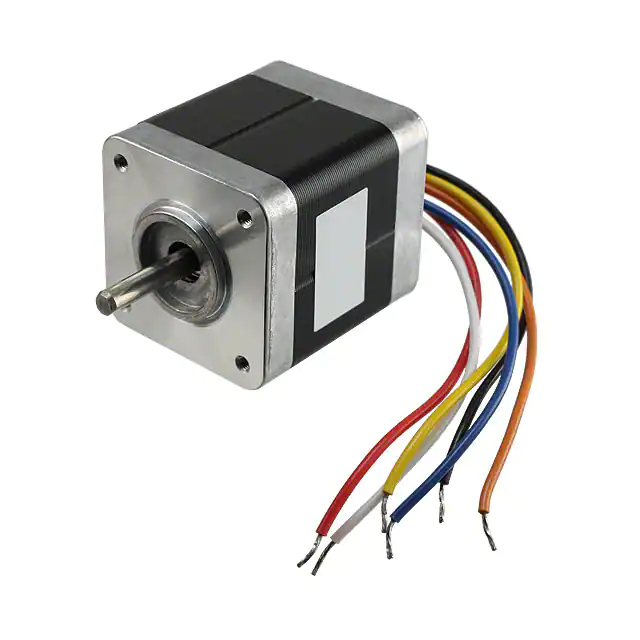

17PM-K858-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
17PM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 750 mA | 200.0 | 1.8° | ±5% | 38.24 / 270 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 7.4 Ohms | Flatted Shaft |
|

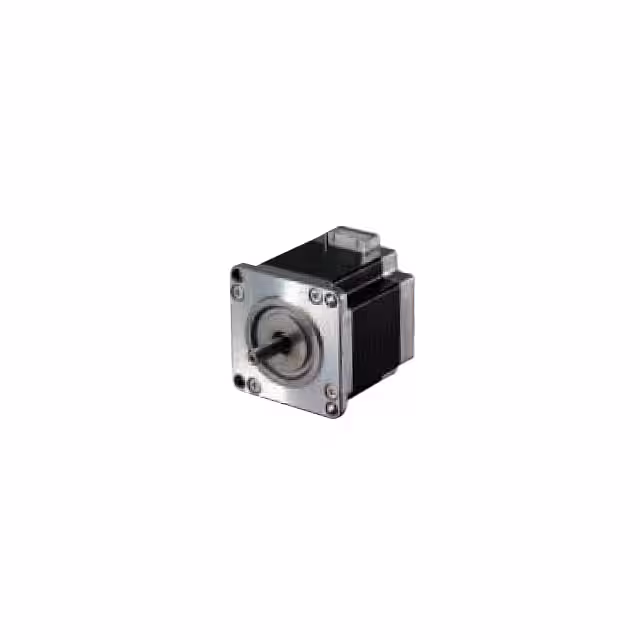

23KY-K251USTEP MOTOR HYBRID UNIPOLAR 24V |
0 |
|
Datasheet |
23KY | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.8 A | 400.0 | 0.9° | - | 66.57 / 470 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.813" (20.64mm) | 1.856" (47.14mm) | Connector | - | 1.6 Ohms | Round Shaft |
|

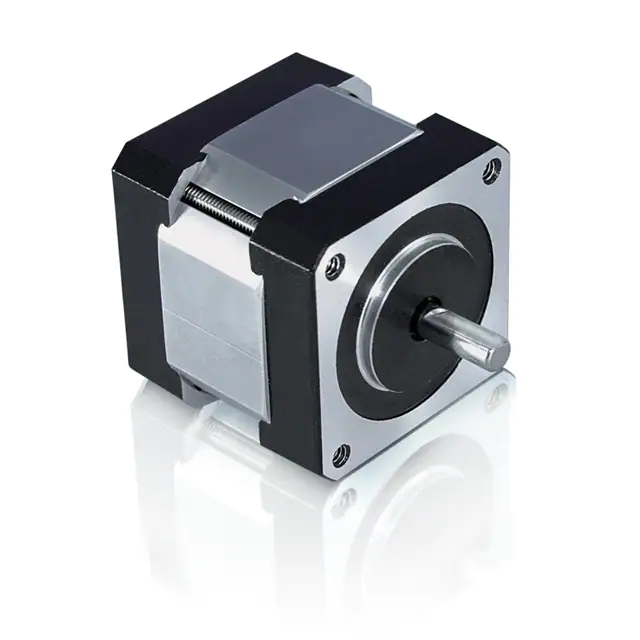

WO-417-13-13STEPPER MOTOR |
0 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 24VDC | 800 mA | 400.0 | 0.9° | - | 28.4 / 200.5 | Square - 1.650" L x 1.650" W (41.90mm x 41.90mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 13 Ohms | Round Shaft |
|

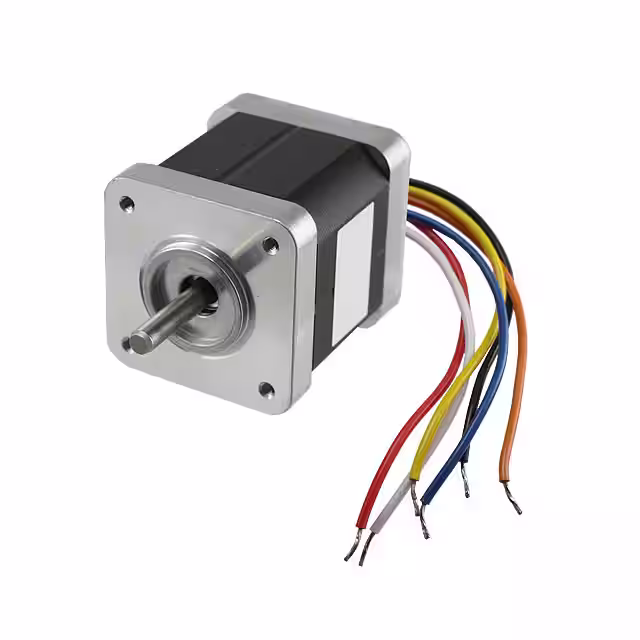

17PY-Z455-00VSSTEP MOTOR HYBRID UNIPOLAR 24V |
0 |
|
Datasheet |
17PY | Bulk | Active | Hybrid | Unipolar | 24VDC | 800 mA | 400.0 | 0.9° | ±5% | 46.74 / 330 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 7.3 Ohms | Flatted Shaft |
|
|
23KY-K040BSTEPPER MOTOR HYBRID BIPOLAR 24V |
0 |
|
Datasheet |
23KY | Bulk | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 400.0 | 0.9° | ±5% | 148.71 / 1050 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.813" (20.64mm) | 1.856" (47.14mm) | Connector | - | 0.9 Ohms | Round Shaft |
|

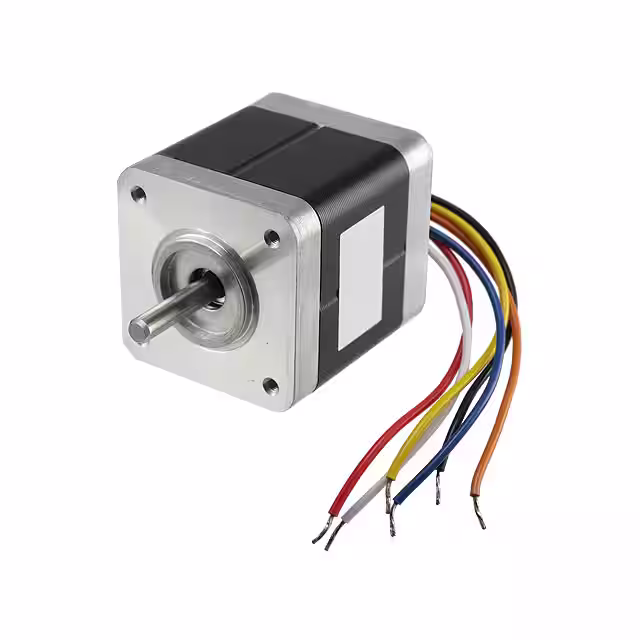

17PM-K444-00VSSTEP MOTOR HYBRID UNIPOLAR 24V |
0 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.2 A | 200.0 | 1.8° | ±5% | 48.15 / 340 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 3.3 Ohms | Flatted Shaft |
|
|
23KY-K050USTEP MOTOR HYBRID UNIPOLAR 24V |
0 |
|
Datasheet |
23KY | Bulk | Active | Hybrid | Unipolar | 24VDC | 2 A | 400.0 | 0.9° | - | 126.05 / 890 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.813" (20.64mm) | 1.856" (47.14mm) | Connector | - | 1.8 Ohms | Round Shaft |
|

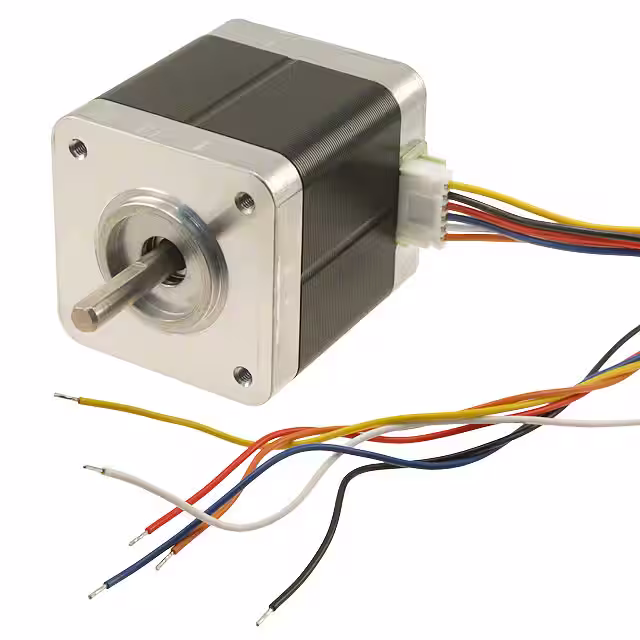

17PM-K444-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
17PM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.2 A | 200.0 | 1.8° | ±5% | 48.15 / 340 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 3.3 Ohms | Flatted Shaft |
|
|
23KY-K748USTEP MOTOR HYBRID UNIPOLAR 24V |
0 |
|
Datasheet |
23KY | Bulk | Active | Hybrid | Unipolar | 24VDC | 2 A | 400.0 | 0.9° | - | 177.04 / 1250 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.813" (20.64mm) | 1.856" (47.14mm) | Connector | - | 2.3 Ohms | Round Shaft |
|
17PM-KA39BSTEPPER MOTOR HYBRID BIPOLAR 24V |
0 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | ±5% | 86.39 / 610 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | - | 6 Ohms | Round Shaft |
|

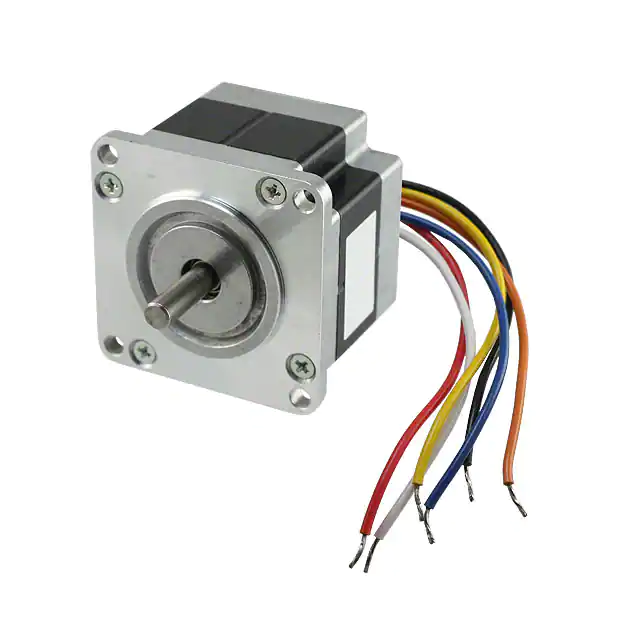

23KM-K267-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 900 mA | 200.0 | 1.8° | ±5% | 67.98 / 480 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 5.8 Ohms | Flatted Shaft |
|

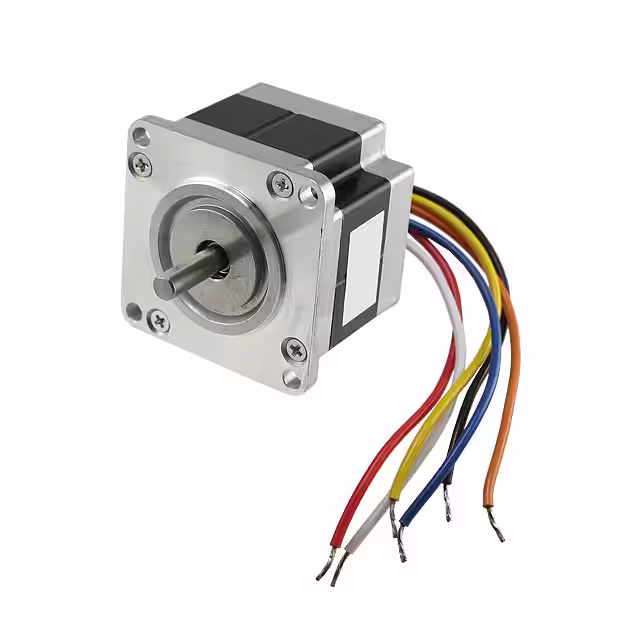

23KM-K244-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2.9 A | 200.0 | 1.8° | ±5% | 67.98 / 480 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 0.6 Ohms | Flatted Shaft |
|
SM3.4-F20-HHD9MOTORS & SOLENOIDS |
0 |
|
- |
SM3.4-F20 | Bulk | Active | Permanent Magnet | Bipolar | 3V | - | 20.0 | 18° | - | - | Round - 0.134" Dia (3.40mm) | - | 0.024" (0.60mm) | - | - | PC Pin | -10°C ~ 50°C | 25 Ohms | Round Shaft |
|
|
SM3.4-F20-HHD11MOTORS & SOLENOIDS |
0 |
|
- |
SM3.4-F20 | Bulk | Active | Permanent Magnet | Bipolar | 3V | - | 20.0 | 18° | - | - | Round - 0.134" Dia (3.40mm) | - | 0.024" (0.60mm) | - | - | PC Pin | -10°C ~ 50°C | 25 Ohms | Round Shaft |
|
|
SM3.4-F20-HHD10MOTORS & SOLENOIDS |
0 |
|
- |
SM3.4-F20 | Bulk | Active | Permanent Magnet | Bipolar | 3V | - | 20.0 | 18° | - | - | Round - 0.134" Dia (3.40mm) | - | 0.024" (0.60mm) | - | - | PC Pin | -10°C ~ 50°C | 25 Ohms | Round Shaft |
|
|
82910502STEPPER MOTOR PM UNIPOLAR 17V |
0 |
|
Datasheet |
82910 | Bulk | Active | Permanent Magnet | Unipolar | 17VDC | 140 mA | 24.0 | 15° | - | 2.1 / 15 | Round - 1.409" Dia (35.80mm) | - | 0.079" (2.00mm) | 0.354" (9.00mm) | 1.650" (42.00mm) | Wire Leads | - | 115 Ohms | Round Shaft |
|
|
82910001STEPPER MOTOR PM BIPOLAR 4.7V |
0 |
|
Datasheet |
82910 | Bulk | Active | Permanent Magnet | Bipolar | 4.7VDC | 520 mA | 48.0 | 7.5° | ±5% | 3.5 / 25 | Round - 1.409" Dia (35.80mm) | - | 0.079" (2.00mm) | 0.354" (9.00mm) | 1.650" (42.00mm) | Wire Leads | - | 9 Ohms | - |
