Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD57-1-1260-CANOPENPANDRIVE NEMA23, 48V, 0.55NM |
0 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200.0 | 1.8° | - | 77.89 / 550 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|
PD57-1-1260-TMCLPANDRIVE NEMA23, 48V, 0.55NM |
0 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200.0 | 1.8° | - | 77.89 / 550 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|
103H89222-5241STEP, F2, 106, 1.8, , , BIPOLAR/ |
1 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 100VAC | 6 A | 200.0 | 1.8° | - | 1869 / 13200 | Square - 4.173" x 4.173" (106.00mm x 106.00mm) | - | 0.630" (16.00mm) | 1.378" (35.00mm) | 3.500" (88.90mm) | Wire Leads | -10°C ~ 50°C | 0.45 Ohms | - |
|
PD57-2-1260-CANOPENPANDRIVE NEMA23, 48V, 1.01NM |
1 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200.0 | 1.8° | - | 143.03 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|
PD60-4-1160-TMCLSTEPPER MOTOR HYBRID BIPOLAR 48V |
1 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 48VDC | 2.8 A | 200.0 | 1.8° | - | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|

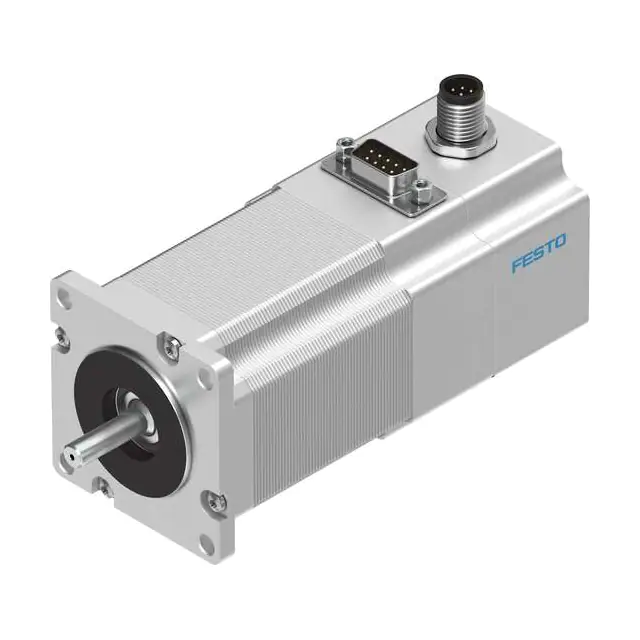

EMMS-ST-57-M-SE-G2STEPPER MOTOR |
0 |
|
Datasheet |
- | Bulk | Last Time Buy | Hybrid | Bipolar | 48VDC | 5 A | 200.0 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | - | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | -10°C ~ 50°C | 0.25 Ohms | Round Shaft |
|
PD57-2-1378-TMCLPANDRIVE NEMA23, 48V, 1.01NM |
1 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200.0 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.8 Ohms | Integrated Controller, Flatted Shaft |
|
PD60-4H-1378-CANOPENPANDRIVE NEMA24, 48V, 3.1NM |
1 |
|
- |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.1VDC | 9 A | 200.0 | 1.8° | ±5% | 424.93 / 3000 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.15 Ohms | Integrated Controller, Flatted Shaft |
|
ERMS-25-90-ST-M-H1-PLK-AAROTARY DRIVE UNIT |
1 |
|
Datasheet |
- | Bulk | Active | Hybrid | - | 24VDC | 3 A | 200.0 | 1.8° | ±0.05% | 382.4 / 2700 | Rectangular - 4.563" x 3.268" (115.90mm x 83.00mm) | - | - | 0.394" (10.00mm) | 2.560" (65.00mm) | Wire Leads with Connector | 0°C ~ 50°C | - | Round Shaft |
|

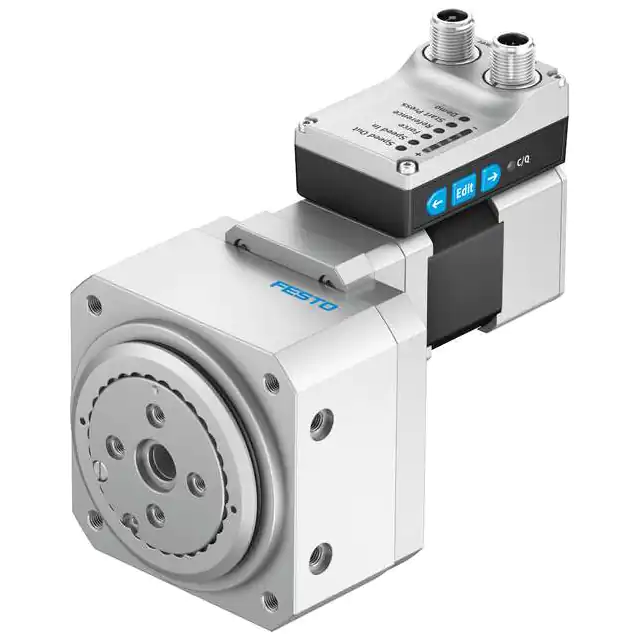

ERMS-32-180-ST-M-H1-PLK-AAROTARY DRIVE UNIT |
1 |
|
Datasheet |
- | Bulk | Active | Hybrid | - | 24VDC | 5.3 A | 2.0 | 180° | ±0.1% | 793.20 / 5600 | Rectangular - 5.425" x 4.134" (137.80mm x 105.00mm) | - | - | 0.472" (12.00mm) | 3.346" (85.00mm) | Wire Leads with Connector | 0°C ~ 50°C | - | Round Shaft |
|
PM25L-075-047PERMANENT MAGNET STEPPER MOTOR |
0 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 12VDC | 0.47 A | 48.0 | 7.5° | - | 3.47 / 24.51 | Round - 0.591" Dia (15.00mm) | - | 0.079" (2.00mm) | 0.394" (10.00mm) | 1.260" (32.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 8 Ohms | - |
|

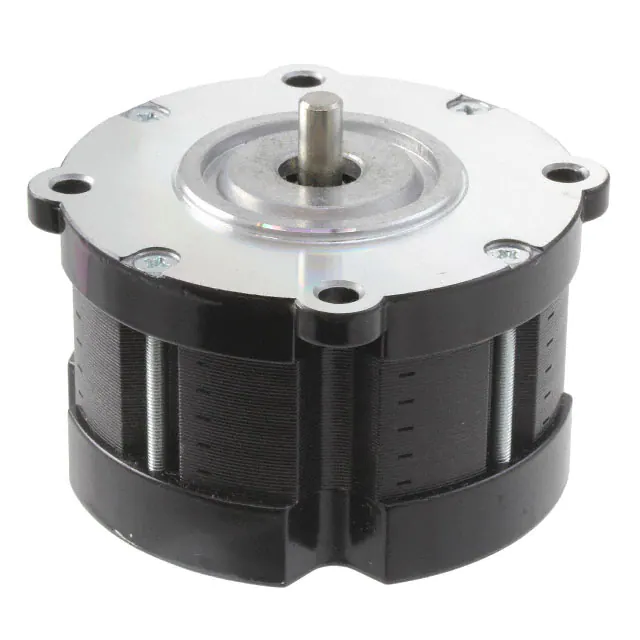

29SM-K242BT01CASTEPPER MOTOR HYBRID BIPOLAR 24V |
0 |
|
Datasheet |
29SM | Box | Active | Hybrid | Bipolar | 24VDC | - | 200.0 | 1.8° | ±5% | - | Round - 2.795" Dia (71.00mm) | - | 0.236" (6.00mm) | 0.453" (11.50mm) | 1.856" (47.14mm) | Connector | -10°C ~ 50°C | - | Round Shaft |
|
WO-417-11-18STEPPER MOTOR |
0 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 24VDC | 600 mA | 400.0 | 0.9° | - | 16 / 113 | Square - 1.650" L x 1.650" W (41.90mm x 41.90mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 10 Ohms | Round Shaft |
|
17PY-Z053-00VSSTEP MOTOR HYBRID UNIPOLAR 24V |
0 |
|
Datasheet |
17PY | Bulk | Active | Hybrid | Unipolar | 24VDC | 850 mA | 400.0 | 0.9° | ±5% | 22.7 / 160 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 4.2 Ohms | Flatted Shaft |
|
WO-4209M-01SSTEPPER MOTOR |
0 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 24VDC | 840 mA | 400.0 | 0.9° | - | 51 / 360 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 6.1 Ohms | Round Shaft |
|
|
11PM-K043-BPVSSTEP MOTOR HYBRID BIPOLAR 24V |
0 |
|
Datasheet |
11PM-K | Bulk | Active | Hybrid | Bipolar | 24VDC | 1.5 A | 200.0 | 1.8° | - | 14.16 / 100 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | - | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.910" (23.11mm) | Connector | - | 1.3 Ohms | - |
|
23KM-K762-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
0 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1 A | 200.0 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 8.6 Ohms | Flatted Shaft |
|
NEMA17-16-06SD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
0 |
|
Datasheet |
NEMA17-AMT112S | Box | Active | - | Bipolar | 24 ~ 48VDC | 700 mA | 200.0 | 1.8° | ±0.2% | 63 / 444.88 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 10.8 Ohms | Integrated Encoder, Flatted Shaft |
|
NEMA11-18-01D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
0 |
|
Datasheet |
NEMA11-AMT112S | Box | Active | - | Bipolar | 24 ~ 48VDC | 670 mA | 200.0 | 1.8° | ±0.2% | 13.7 / 96.74 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | 0.791" (20.10mm) | 0.909" (23.10mm) | Connector | -20°C ~ 50°C | 7.1 Ohms | Integrated Encoder |
|
|
NEMA11-20-01D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
0 |
|
Datasheet |
NEMA11-AMT112S | Box | Active | - | Bipolar | 24 ~ 48VDC | 670 mA | 200.0 | 1.8° | ±0.2% | 16.6 / 117.22 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | 0.791" (20.10mm) | 0.909" (23.10mm) | Connector | -20°C ~ 50°C | 8.6 Ohms | Integrated Encoder |
