Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E5G0423N-CSWITCH ROTARY |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
711-11-T3ESWITCH ROTARY 11POS 7A 125V |
0 |
|
Datasheet |
711 | Bulk | Obsolete | 11 | Fixed | 3 | 1 | SP11T | Non-Shorting (BBM) | 7A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | 62.70mm |
|
|
53M15-08-3-08NSWITCH ROTARY 8POS 250MA 115V |
0 |
|
Datasheet |
53 | Bulk | Active | 8 | Fixed | 8 | 3 | 3P8T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 88.82mm |
|
|
412-5T2ESWITCH ROTARY 5POS 50A 300V |
0 |
|
Datasheet |
412 | Bulk | Active | 5 | Fixed | 2 | 1 | SP5T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 127.80mm |
|
|
53M15-08-3-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Datasheet |
53 | Bulk | Active | 2 | Fixed | 8 | 3 | 3PDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 88.82mm |
|
|
59M18-07A20NSWITCH ROTARY 20POS 250MA 115V |
0 |
|
Datasheet |
59 | Bulk | Active | 20 | Continuous | 7 | 1 | SP20T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 80.37mm |
|
|
312-8T2ESWITCH ROTARY 8POS 30A 300V |
0 |
|
Datasheet |
312 | Bulk | Active | 8 | Fixed | 2 | 1 | SP8T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 117.50mm |
|
|
312-9T2ESWITCH ROTARY 9POS 30A 300V |
0 |
|
Datasheet |
312 | Bulk | Active | 9 | Fixed | 2 | 1 | SP9T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 117.50mm |
|
|
59M18-06A20NSWITCH ROTARY 20POS 250MA 115V |
0 |
|
Datasheet |
59 | Bulk | Active | 20 | Continuous | 6 | 1 | SP20T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 71.91mm |
|

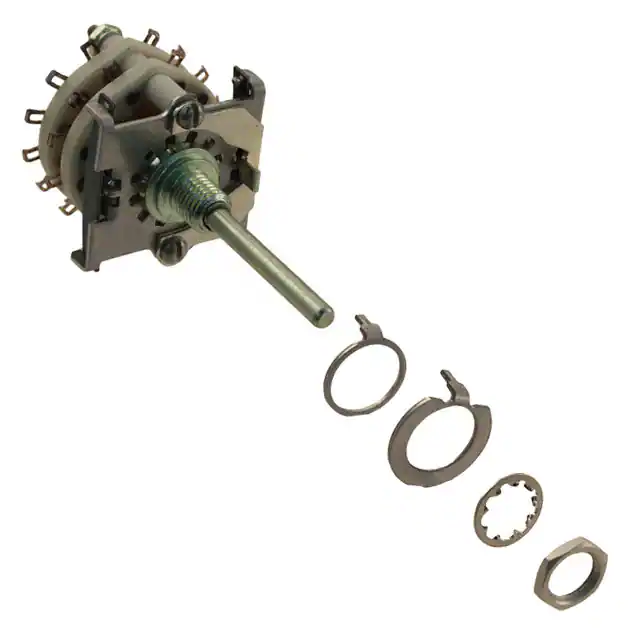

D2C0405NSWITCH ROTARY 2-5POS 250MA 115V |
0 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (3.17mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.14mm |
|
|
412-7T2SWITCH ROTARY 7POS 50A 300V |
0 |
|
Datasheet |
412 | Bulk | Active | 7 | Fixed | 2 | 1 | SP7T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 127.80mm |
|
|
D2C0603NSWITCH ROTARY 2-3POS 250MA 115V |
0 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 3 | Adjustable | 2 | 3 | 3P3T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (3.17mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.14mm |
|
|
312-10T2ESWITCH ROTARY 10POS 30A 300V |
0 |
|
Datasheet |
312 | Bulk | Active | 10 | Fixed | 2 | 1 | SP10T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 117.50mm |
|
|
412-6T2ESWITCH ROTARY 6POS 50A 300V |
0 |
|
Datasheet |
412 | Bulk | Active | 6 | Fixed | 2 | 1 | SP6T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 127.80mm |
|
|
59HS18-06B20NSWITCH ROTARY 20POS 250MA 115V |
0 |
|
Datasheet |
59 | Bulk | Active | 20 | Fixed | 6 | 1 | SP20T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 71.91mm |
|
|
E4C0608SSWITCH ROTARY 2-8POS 9A 115V |
0 |
|
Datasheet |
E4 | Bulk | Active | 2 ~ 8 | Adjustable | 3 | 2 | DP8T | Shorting (MBB) | 9A (AC), 11A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 47.63mm | 20° | Silver (Ag) | - | Panel Mount | Solder Lug | - | 88.21mm |
|
|
E4C0317SSWITCH ROTARY 2-17POS 9A 115V |
0 |
|
- |
E4 | Bulk | Active | 2 ~ 17 | Adjustable | 3 | 1 | SP17T | Shorting (MBB) | 9A (AC), 11A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 47.63mm | 20° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 88.21mm |
|
|
312-11T2ESWITCH ROTARY 11POS 30A 300V |
0 |
|
Datasheet |
312 | Bulk | Active | 11 | Fixed | 2 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 117.50mm |
|
|
412-7T2ESWITCH ROTARY 7POS 50A 300V |
0 |
|
Datasheet |
412 | Bulk | Active | 7 | Fixed | 2 | 1 | SP7T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 127.80mm |
|
|
59HS18-06-2-10SSWITCH ROTARY 10POS 250MA 115V |
0 |
|
Datasheet |
59 | Bulk | Active | 10 | Fixed | 6 | 2 | DP10T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 71.91mm |
