Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

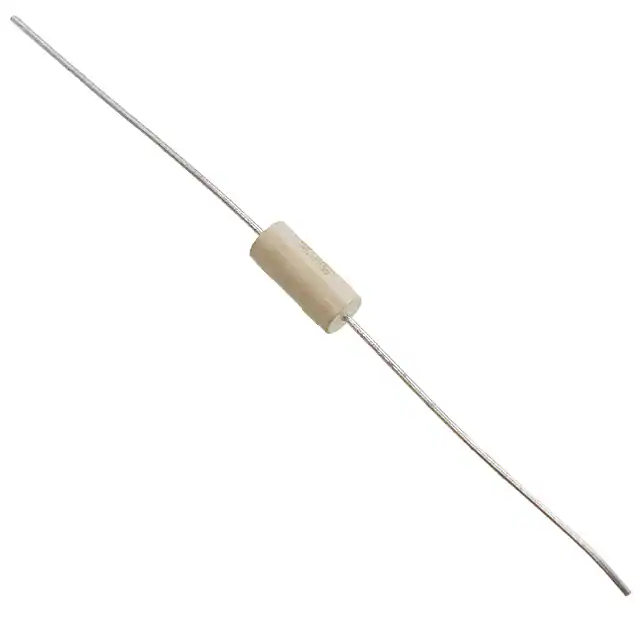

ER1537-12KRFIXED IND 1UH 785MA 290 MOHM TH |
435 |
|
Datasheet |
Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 1 µH | ±10% | 785 mA | - | Unshielded | 290mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
ER1537-06KSFIXED IND 470NH 1.225A 120 MOHM |
410 |
|
Datasheet |
Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 470 nH | ±10% | 1.225 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
ER1537-18KSFIXED IND 1.8UH 525MA 650MOHM TH |
380 |
|
Datasheet |
Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 1.8 µH | ±10% | 525 mA | - | Unshielded | 650mOhm Max | 33 @ 7.9MHz | 150MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
ER153722KSFIXED IND 2.7UH 385MA 1.2 OHM TH |
356 |
|
Datasheet |
Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 2.7 µH | ±10% | 385 mA | - | Unshielded | 1.2Ohm Max | 33 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
ER1537-28JSFIXED IND 4.7UH 260MA 2.6 OHM TH |
393 |
|
Datasheet |
Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 4.7 µH | ±5% | 260 mA | - | Unshielded | 2.6Ohm Max | 33 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
ER1641-473KRFIXED IND 47UH 195MA 2.11 OHM TH |
308 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 195 mA | - | Unshielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

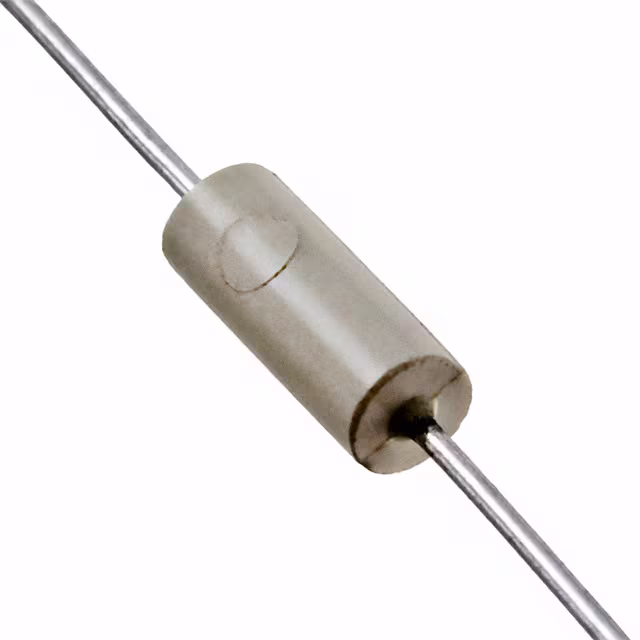

ER1025-92KRFIXED IND 1MH 28MA 72 OHM TH |
182 |
|
Datasheet |
Military, MIL-PRF-39010/10, ER1025 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±10% | 28 mA | - | Unshielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

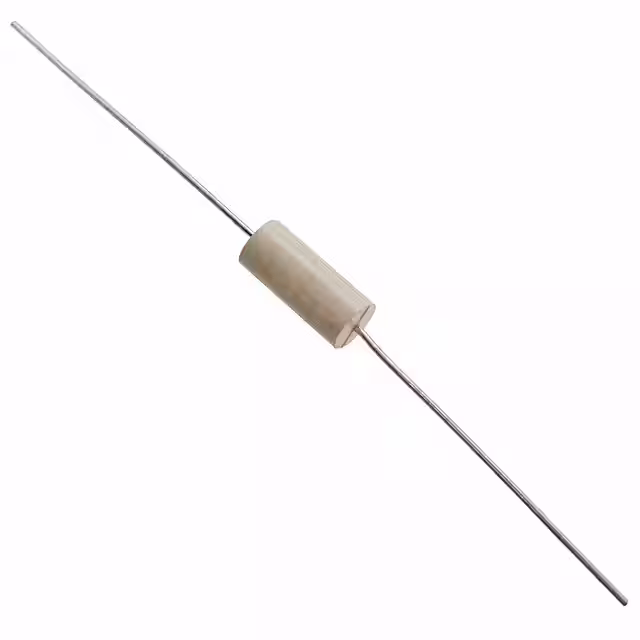

ER1840-02KSFIXED IND 220NH 2.7A 35 MOHM TH |
427 |
|
Datasheet |
Military, MIL-PRF-39010/04, ER1840 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±10% | 2.7 A | - | Unshielded | 35mOhm Max | 50 @ 25MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
ER1840-30KRFIXED IND 10UH 440MA 605 MOHM TH |
381 |
|
Datasheet |
Military, MIL-PRF-39010/05, ER1840 | Axial | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±10% | 440 mA | - | Unshielded | 605mOhm Max | 30 @ 7.9MHz | 42MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
ER1840-01JSFIXED IND 180NH 2.7A 35 MOHM TH |
463 |
|
Datasheet |
Military, MIL-PRF-39010/04, ER1840 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±5% | 2.7 A | - | Unshielded | 35mOhm Max | 50 @ 25MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
85036-A0FIXED IND 100UH 1.35 OHM SMD |
97 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 100 µH | ±25% | - | 250mA | Shielded | 1.35Ohm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.300" L x 0.300" W (7.62mm x 7.62mm) | - |
|
85081-A0FIXED IND 10.7UH 280 MOHM SMD |
100 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 10.7 µH | ±20% | - | 950mA | Shielded | 280mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | - |
|
|
85058-A0FIXED IND 210UH 330MA 2 OHM SMD |
87 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 210 µH | ±20% | 330 mA | 300mA | Shielded | 2Ohm | - | 3.1MHz | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | - |
|
MLP2012S2R2TT0S1FIXED IND 2.2UH 600MA 429MOHM SM |
7,680 |
|
Datasheet |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 600 mA | - | Shielded | 429mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
 TDK.jpg)
|

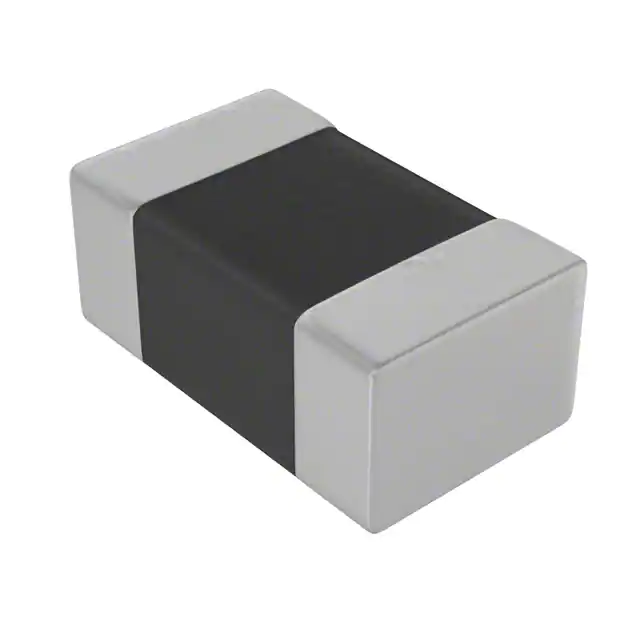

MLF2012DR12JT000FIXED IND 120NH 300MA 200MOHM SM |
3,998 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 120 nH | ±5% | 300 mA | - | Shielded | 200mOhm Max | 20 @ 25MHz | 360MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
NLCV25T-100K-EFRDFIXED IND 10UH 360MA 1.32OHM SMD |
3,795 |
|
Datasheet |
NLCV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 360 mA | - | Unshielded | 1.32Ohm Max | 15 @ 2.52MHz | 30MHz | AEC-Q200 | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
MLF2012K470KTD25FIXED IND 47UH 4MA 2.7 OHM SMD |
3,336 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 47 µH | ±10% | 4 mA | - | Shielded | 2.7Ohm Max | 35 @ 2MHz | 11MHz | AEC-Q200 | -40°C ~ 85°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012DR82MT000FIXED IND 820NH 150MA 650MOHM SM |
2,900 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±20% | 150 mA | - | Shielded | 650mOhm Max | 25 @ 25MHz | 130MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
BSCH001005052N0SCSINDUCTOR RF |
288,902 |
|
Datasheet |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2 nH | ±0.3nH | 400 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 8.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
BSCQ0006030322NH00FIXED IND 22NH 190MA 1.29OHM SMD |
227,300 |
|
Datasheet |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±3% | 190 mA | - | Unshielded | 1.29Ohm Max | 14 @ 500MHz | 1.9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
