Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

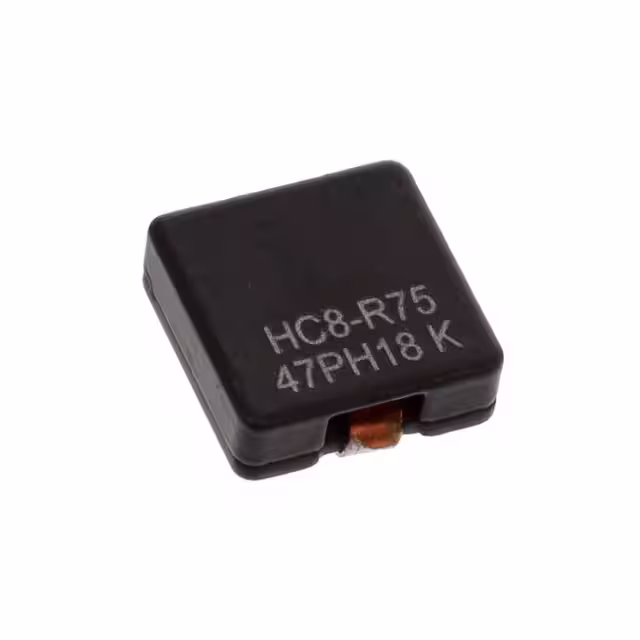

HC8-R75-RFIXED IND 750NH 18.8A 3.4MOHM SM |
2,115 |
|
Datasheet |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 750 nH | ±20% | 18.8 A | 32.7A | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
B82559A2102A024FIXED IND 1UH 54.4A 0.45MOHM SMD |
263 |
|
Datasheet |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 54.4 A | 78.5A | Shielded | 0.45mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.972" L x 0.898" W (24.70mm x 22.80mm) | 0.504" (12.80mm) |
|
SH150S-3.00-77FIXED IND 77UH 3A 80 MOHM SMD |
189 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 77 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|

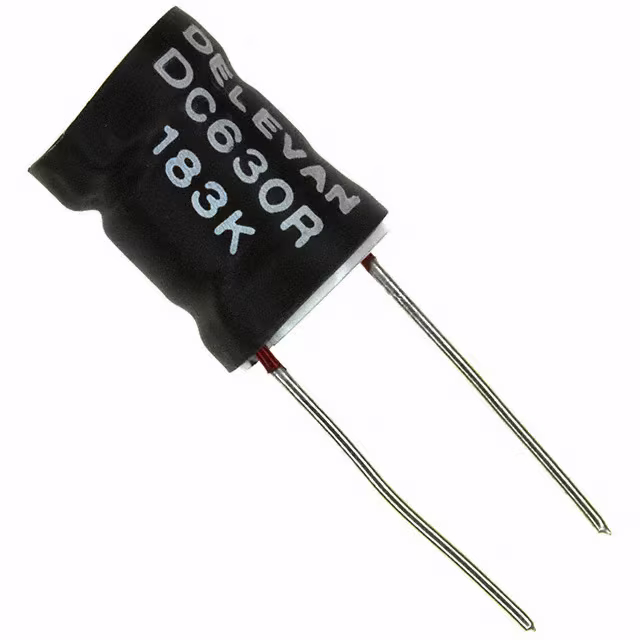

DC630R-183KFIXED IND 18UH 7A 20 MOHM TH |
350 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 7 A | 16A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
1110-120K-RCFIXED IND 12UH 9A 11 MOHM TH |
708 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 9 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
CLB1108-2-50TR-RFIXED IND 200NH 0.00028OHM SMD |
500 |
|
Datasheet |
CLB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±20% | - | 25A | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.315" (8.00mm) |
|

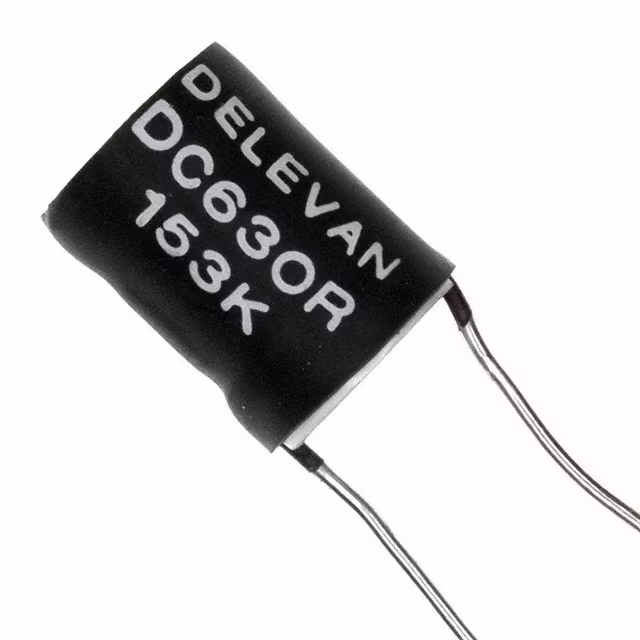

DC630R-153KFIXED IND 15UH 8.09A 15 MOHM TH |
486 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 8.09 A | 17.5A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
HCM1A1707-220-RFIXED IND 22UH 8A 23 MOHM SMD |
124 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 8 A | 11A | Shielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
SRP2313AA-330MFIXED IND 33UH 16A 15.4 MOHM SMD |
680 |
|
Datasheet |
SRP2313AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 33 µH | ±20% | 16 A | 10.5A | Shielded | 15.4mOhm Max | 30 @ 100kHz | 4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
SRP2313AA-1R5MFIXED IND 1.5UH 57A 1.15MOHM SMD |
461 |
|
Datasheet |
SRP2313AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 57 A | 48A | Shielded | 1.15mOhm Max | 60 @ 100kHz | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
SRP2313AA-2R2MFIXED IND 2.2UH 52A 1.25MOHM SMD |
460 |
|
Datasheet |
SRP2313AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 52 A | 43A | Shielded | 1.25mOhm Max | 60 @ 100kHz | 19MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|

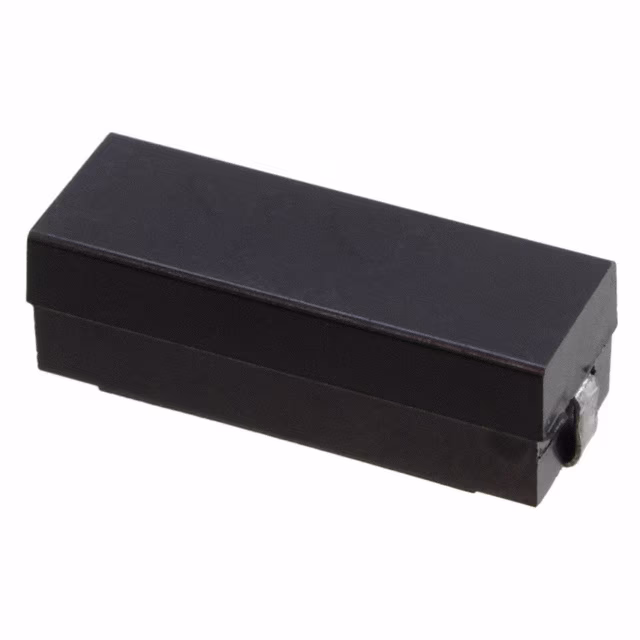

M27/370-01FIXED IND 1UH 6.27A 9 MOHM SMD |
898 |
|
Datasheet |
Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±15% | 6.27 A | 6.4A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
M27/370-13FIXED IND 10UH 3.27A 33 MOHM SMD |
579 |
|
Datasheet |
Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±15% | 3.27 A | 2A | Unshielded | 33mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
M27/370-06FIXED IND 2.7UH 5.03A 14MOHM SMD |
392 |
|
Datasheet |
Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±15% | 5.03 A | 3.9A | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
2500-76JFIXED IND 10MH 48MA 72 OHM TH |
2,876 |
|
Datasheet |
Military, MIL-PRF-M15305, MS90541 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 10 mH | ±5% | 48 mA | - | Unshielded | 72Ohm Max | 80 @ 250kHz | 950kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
M27/370-32FIXED IND 390UH 680MA 770MOHM SM |
914 |
|
Datasheet |
Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±15% | 680 mA | 320mA | Unshielded | 770mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
M27/370-25FIXED IND 100UH 1.3A 208MOHM SMD |
792 |
|
Datasheet |
Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±15% | 1.3 A | 640mA | Unshielded | 208mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
M27/370-49FIXED IND 10MH 120MA 23.4OHM SMD |
761 |
|
Datasheet |
Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±15% | 120 mA | 60mA | Unshielded | 23.4Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
M27/370-39FIXED IND 1.5MH 340MA 3 OHM SMD |
381 |
|
Datasheet |
Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±15% | 340 mA | 160mA | Unshielded | 3Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
1120-152K-RCFIXED IND 1.5MH 800MA 1.26OHM TH |
224 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 800 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
