Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMLB104T-R22MSFIXED IND 220NH 36A 0.93MOHM SMD |
433 |
|
Datasheet |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 220 nH | ±20% | 36 A | 59A | Shielded | 0.93mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLB104T-2R2MSFIXED IND 2.2UH 12A 7MOHM SMD |
300 |
|
Datasheet |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 12 A | 16A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
MDH10060C-221MA=P3FIXED IND 220UH 880MA 350MOHM SM |
280 |
|
Datasheet |
MDH10060C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 880 mA | 880mA | Shielded | 350mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
19R155CFIXED IND 1.5MH 630MA 1.2 OHM TH |
212 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 1.5 mH | ±10% | 630 mA | - | Unshielded | 1.2Ohm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | Radial Lead | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|

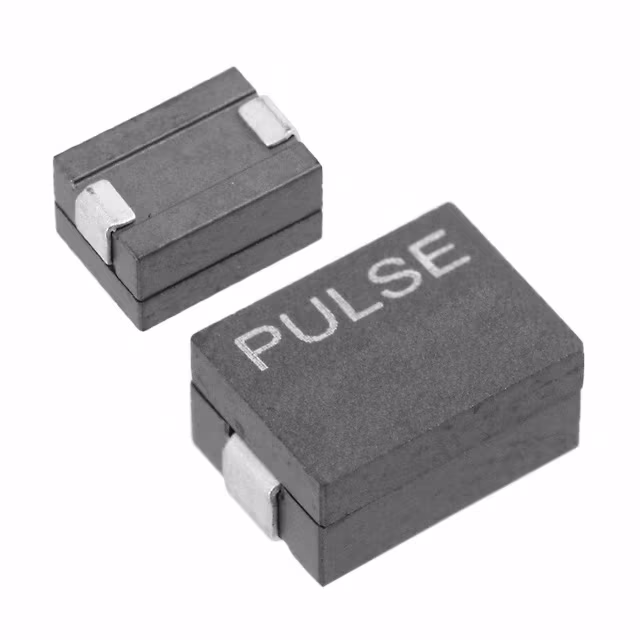

PA0511.101NLTFIXED IND 120NH 31A 0.39MOHM SMD |
2,900 |
|
Datasheet |
PA0511NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±20% | 31 A | 52A | Shielded | 0.39mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.96mm) |
|
PA5121.201HLTFIXED IND 200NH 13A 0.65MOHM SMD |
2,142 |
|
Datasheet |
PA5121.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 200 nH | ±10% | 13 A | 25A | Shielded | 0.65mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.283" W (7.80mm x 7.20mm) | 0.211" (5.35mm) |
|
UP0.4C-100-RFIXED IND 10UH 1.16A 156MOHM SMD |
7,798 |
|
Datasheet |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.16 A | 1.16A | Unshielded | 156mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
MPLCG0630L4R7FIXED IND 4.7UH 5.5A 0.041OHM SM |
5,156 |
|
Datasheet |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 5.5 A | 5.4A | Shielded | 41mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | 0.118" (3.00mm) |
|
|
MPLCG0630L1R0FIXED IND 1UH 11.9A 0.009OHM SMD |
3,962 |
|
Datasheet |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 11.9 A | 11.3A | Shielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | 0.118" (3.00mm) |
|
|
MPLCG0630L1R5FIXED IND 1.5UH 9.9A 0.015OHM SM |
3,123 |
|
Datasheet |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 9.9 A | 8.3A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | 0.118" (3.00mm) |
|
P1166.333NLTFIXED IND 33UH 940MA 205MOHM SMD |
3,069 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 940 mA | 1A | Shielded | 205mOhm Max | - | 15MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
MPIA2510V2-1R0-RFIXED IND 1UH 3.1A 52 MOHM SMD |
2,695 |
|
Datasheet |
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 3.1 A | 4.3A | Shielded | 52mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
P1167.474NLTFIXED IND 470UH 290MA 2.18OHM SM |
2,680 |
|
Datasheet |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 290 mA | 290mA | Shielded | 2.18Ohm Max | - | 2.6MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
|
P1167.272NLTFIXED IND 2.7UH 3.5A 16 MOHM SMD |
2,416 |
|
Datasheet |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±30% | 3.5 A | 3.5A | Shielded | 16mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
|
P1166.154NLTFIXED IND 150UH 460MA 860MOHM SM |
2,145 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 460 mA | 460mA | Shielded | 860mOhm Max | - | 6.3MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
ASPI-1306S-220M-TFIXED IND 22UH 3.1A 59 MOHM SMD |
1,925 |
|
Datasheet |
ASPI-1306S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.1 A | 6A | Shielded | 59mOhm Max | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
|
P1166.102NLTFIXED IND 1UH 4.9A 7.5 MOHM SMD |
1,745 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 4.9 A | 5.2A | Shielded | 7.5mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
PF0464.502NLFIXED IND 5UH 3.55A 30 MOHM SMD |
1,701 |
|
Datasheet |
PF0464NL | Nonstandard | Tray | Active | - | - | 5 µH | ±20% | 3.55 A | 2.4A | Shielded | 30mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|
|
MPIA2512V2-R68-RFIXED IND 680NH 3.4A 35MOHM SMD |
1,590 |
|
Datasheet |
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 680 nH | ±20% | 3.4 A | 6A | Shielded | 35mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
|
P1166.103NLTFIXED IND 10UH 1.6A 70 MOHM SMD |
1,415 |
|
Datasheet |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.6 A | 1.8A | Shielded | 70mOhm Max | - | 29MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
