Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR1806-2R2MLFIXED IND 2.2UH 9A 6.8 MOHM SMD |
685 |
|
Datasheet |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 9 A | 22A | Unshielded | 6.8mOhm Max | 22 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|

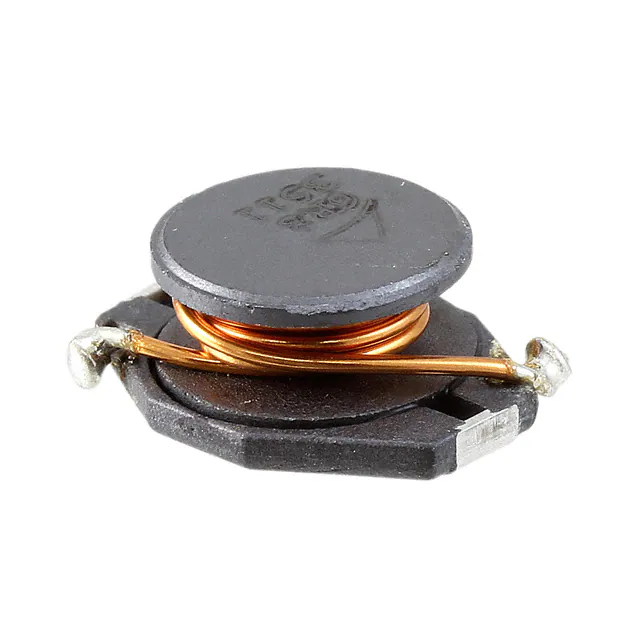

B82476B1683M100FIXED IND 68UH 1.65A 160MOHM SMD |
499 |
|
Datasheet |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.65 A | 1.4A | Unshielded | 160mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

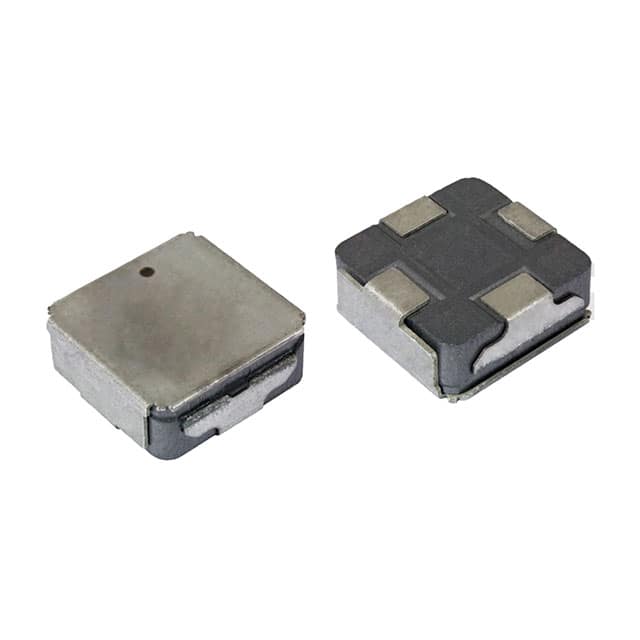

IHLE4040DDEW1R0M5AFIXED IND 1UH 23.5A 0.00307OHM |
471 |
|
Datasheet |
IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 23.5 A | 24A | Shielded | 3.07mOhm Max | - | 37.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|

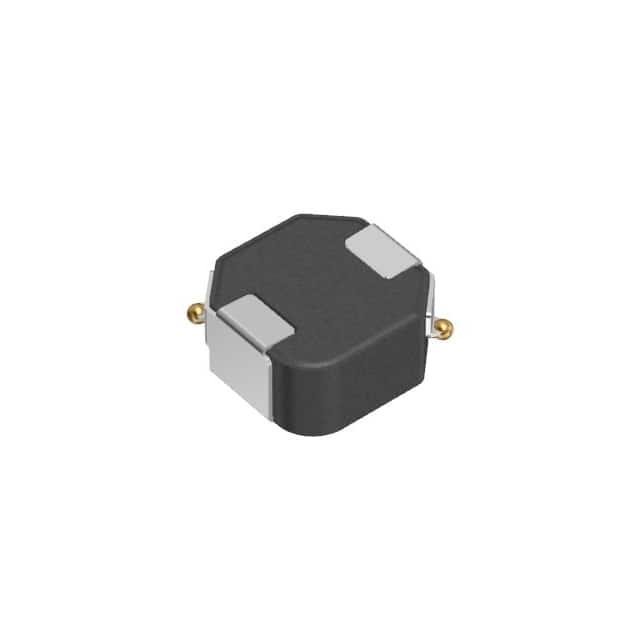

SPM4020T-1R0M-DZINDUCTORS FOR POWER CIRCUITS, FO |
321 |
|
Datasheet |
SPM-DZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 4.9 A | 10.9A | Shielded | 28.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.161" W (4.30mm x 4.10mm) | 0.079" (2.00mm) |
|
|
SPM4020T-2R2M-DZINDUCTORS FOR POWER CIRCUITS, FO |
320 |
|
Datasheet |
SPM-DZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 3.1 A | 6.2A | Shielded | 66mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.161" W (4.30mm x 4.10mm) | 0.079" (2.00mm) |
|
|
SDR1806-1R0MLFIXED IND 1UH 10A 4 MOHM SMD |
146 |
|
Datasheet |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 10 A | 30A | Unshielded | 4mOhm Max | 21 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
P1167.683NLTFIXED IND 68UH 780MA 310MOHM SMD |
10,711 |
|
Datasheet |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 780 mA | 780mA | Shielded | 310mOhm Max | - | 8.8MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
MGAH10041R0M-101004 INDUCTOR 1UH 18A |
7,991 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 18 A | 28A | Shielded | 3.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
MGAH1004R22M-101004 INDUCTOR 0.22UH 32A |
7,975 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 220 nH | ±20% | 32 A | 55A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
MGAH10042R2M-101004 INDUCTOR 2.2UH 12A |
7,975 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 12 A | 18A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
MGAH1004R68M-101004 INDUCTOR 0.68UH 23A |
7,938 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 23 A | 30A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
MGAH1004680M-101004 INDUCTOR 68UH 2A |
7,933 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 68 µH | ±20% | 2 A | 3A | Shielded | 210mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
MGAH1004150M-101004 INDUCTOR 15UH 6.25A |
7,905 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 6.25 A | 7A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
MGAH10046R8M-101004 INDUCTOR 6.8UH 7A |
7,867 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 7 A | 10A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
MGAH10041R5M-101004 INDUCTOR 1.5UH 15A |
7,839 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 15 A | 26A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
MGAH1004330M-101004 INDUCTOR 33UH 4A |
7,807 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 4 A | 4.5A | Shielded | 92mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
MGAH1004470M-101004 INDUCTOR 47UH 3.3A |
7,428 |
|
Datasheet |
MGAH1004 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 47 µH | ±20% | 3.3 A | 3.5A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|

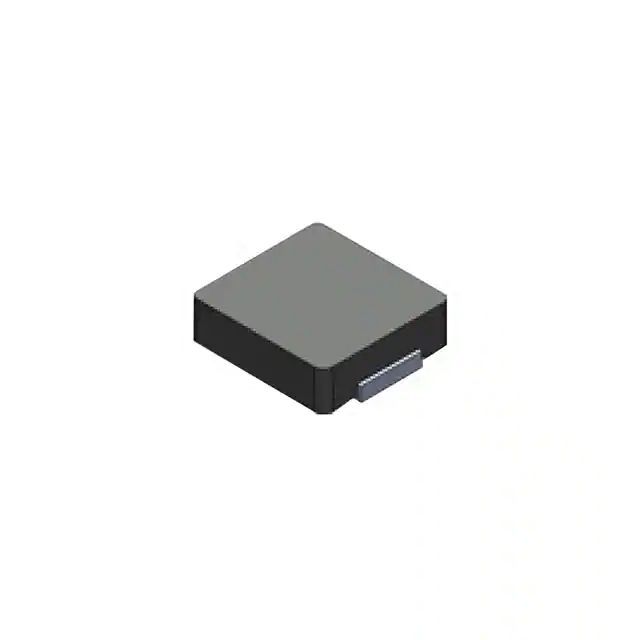

0415CDMCCDS-R56MCFIXED IND 560NH 8.7A 14.4MOHM SM |
5,990 |
|
Datasheet |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 8.7 A | 8.7A | Shielded | 14.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
0415CDMCCDS-R33MCFIXED IND 330NH 11.6A 8.4MOHM SM |
5,695 |
|
Datasheet |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 11.6 A | 11A | Shielded | 8.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
0415CDMCCDS-R47MCFIXED IND 470NH 8.4A 13.2MOHM SM |
5,410 |
|
Datasheet |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 8.4 A | 10A | Shielded | 13.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
