Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCDND3030KKTR47MMFIXED IND 470NH 3.9A 39 MOHM SMD |
4,000 |
|
Datasheet |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 3.9 A | 5.4A | Unshielded | 39mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LCDND3030KKT1R5MMFIXED IND 1.5UH 2.1A 100MOHM SMD |
4,000 |
|
Datasheet |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 2.1 A | 3A | Unshielded | 100mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LCDND3030KKT6R8MMFIXED IND 6.8UH 1A 437 MOHM SMD |
3,996 |
|
Datasheet |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 6.8 µH | ±20% | 1 A | 1.4A | Unshielded | 437mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

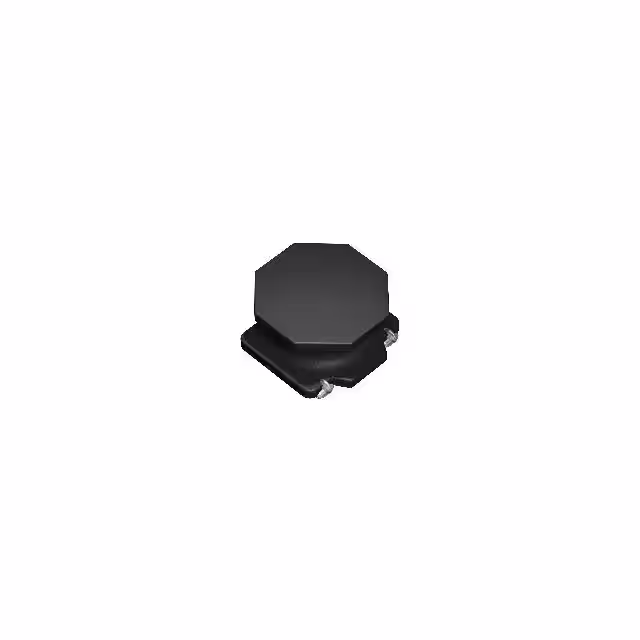

LCDND3030KKT3R3MMFIXED IND 3.3UH 1.35A 248MOHM SM |
3,990 |
|
Datasheet |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 1.35 A | 2A | Unshielded | 248mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
SRU1028A-680YFIXED IND 68UH 1A 300 MOHM SMD |
3,985 |
|
Datasheet |
SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1 A | 900mA | Shielded | 300mOhm Max | 20 @ 2.52MHz | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
SRU1028A-220YFIXED IND 22UH 1.6A 135 MOHM SMD |
3,813 |
|
Datasheet |
SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.6 A | 1.4A | Shielded | 135mOhm Max | 26 @ 2.52MHz | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
SRR6040A-120MFIXED IND 12UH 1.7A 55 MOHM SMD |
3,505 |
|
Datasheet |
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±20% | 1.7 A | 1.61A | Shielded | 55mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
LCDND3030KKT1R0MMFIXED IND 1UH 2.4A 86 MOHM SMD |
3,500 |
|
Datasheet |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 2.4 A | 4.4A | Unshielded | 86mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
SRU1038A-151YFIXED IND 150UH 900MA 476MOHM SM |
3,200 |
|
Datasheet |
SRU1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 900 mA | 800mA | Shielded | 476mOhm Max | 20 @ 796kHz | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
784383240068WE-MAIA SMT POWER INDUCTOR 0.68 |
3,000 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 680 nH | ±30% | 3.2 A | 5.85A | Shielded | 59mOhm Max | - | 102MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
784383240056WE-MAIA SMT POWER INDUCTOR 0.56 |
2,904 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 560 nH | ±30% | 3.3 A | 6A | Shielded | 49mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
1.2mm.jpg)
|
74438334012FIXED IND 1.2UH 2.65A 77MOHM SMD |
2,882 |
|
Datasheet |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 2.65 A | 6A | Shielded | 77mOhm Max | - | 66MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
78438324068WE-MAIA SMT POWER INDUCTOR 6.8 U |
2,822 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 6.8 µH | ±20% | 900 mA | 1.6A | Shielded | 640mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
78438324056WE-MAIA SMT POWER INDUCTOR 5.6 U |
2,757 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 5.6 µH | ±20% | 950 mA | 1.75A | Shielded | 465mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
78438324012WE-MAIA SMT POWER INDUCTOR 1.2 U |
2,737 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.2 µH | ±20% | 2.4 A | 4.5A | Shielded | 80mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
1mm.jpg)
|

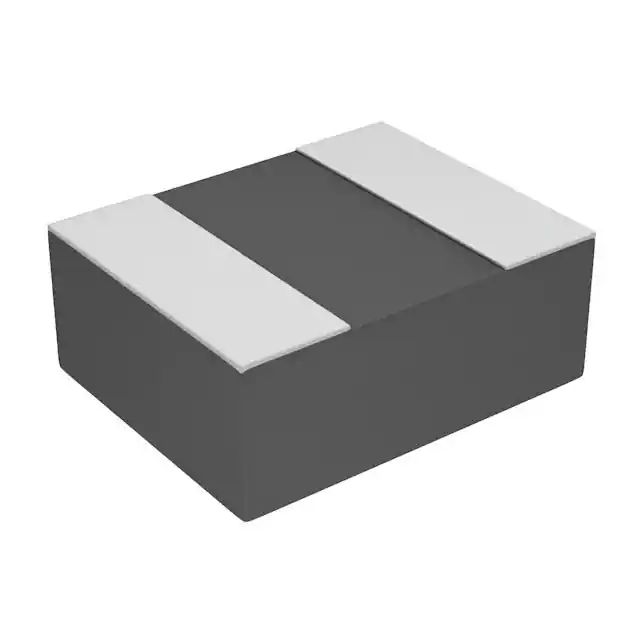

74438323082FIXED IND 8.2UH 700MA 743MOHM SM |
2,715 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 700 mA | 1.45A | Shielded | 743mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
78438324015WE-MAIA SMT POWER INDUCTOR 1.5 U |
2,487 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.5 µH | ±20% | 2.2 A | 3.7A | Shielded | 99mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SRR6040A-680MFIXED IND 68UH 750MA 240MOHM SMD |
2,118 |
|
Datasheet |
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 750 mA | 700mA | Shielded | 240mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
NS10165T220MNVVFIXED IND 22UH 3.1A 42 MOHM SMD |
2,005 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.1 A | 3.1A | Shielded | 42mOhm Max | - | 10.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
|
NS10165T100MNVVFIXED IND 10UH 4.66A 20.9MOHM SM |
2,000 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 4.66 A | 5.2A | Shielded | 20.9mOhm Max | - | 16.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
