Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL622-561K-RCFIXED IND 560UH 410MA 1.4 OHM TH |
1,283 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 410 mA | - | Unshielded | 1.4Ohm Max | 20 @ 796kHz | 1.8MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
MPL-AY3020-2R2FIXED IND 2.2UH 3A 64 MOHM SMD |
1,249 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | - | 3 A | 5.3A | Unshielded | 64mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
RL622-333K-RCFIXED IND 33MH 30MA 70 OHM TH |
1,248 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 30 mA | - | Unshielded | 70Ohm Max | 30 @ 79.6kHz | 100kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
RL622-680K-RCFIXED IND 68UH 1.2A 210 MOHM TH |
1,128 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.2 A | - | Unshielded | 210mOhm Max | 30 @ 2.52MHz | 4.9MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
EXLA1V0505-8R2-RIND MOLDED SHLD 8.2UH 4.6A |
1,074 |
|
Datasheet |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 8.2 µH | ±20% | 6.1 A | 6.1A | Shielded | 32.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
|
RL622-562K-RCFIXED IND 5.6MH 50MA 18 OHM TH |
1,008 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 50 mA | - | Unshielded | 18Ohm Max | 20 @ 252kHz | 400kHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
RL622-222K-RCFIXED IND 2.2MH 80MA 6.8 OHM TH |
1,000 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 80 mA | - | Unshielded | 6.8Ohm Max | 20 @ 252kHz | 900kHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|

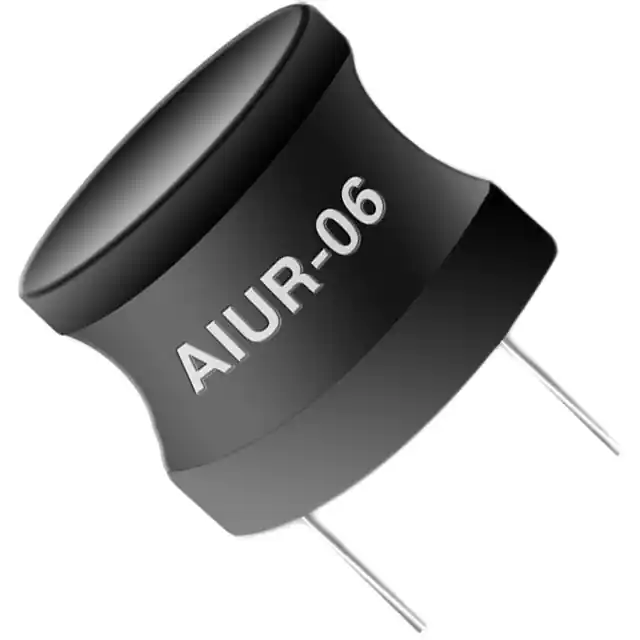

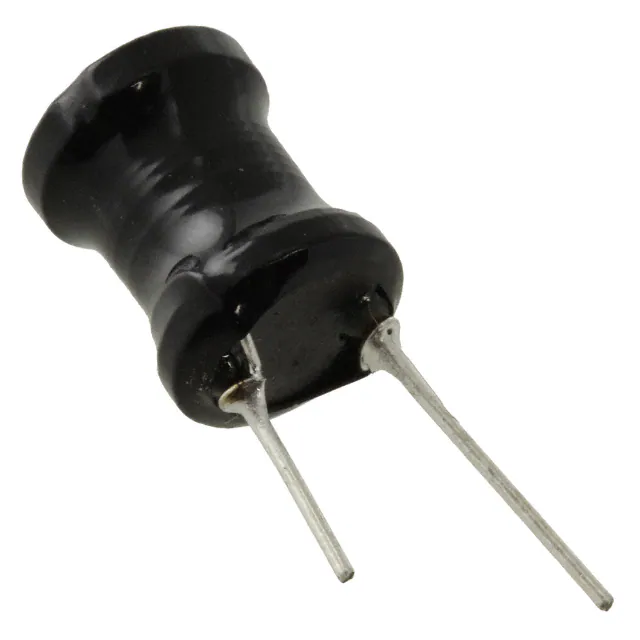

AIUR-06-270KFIXED IND 27UH 3.8A 46 MOHM TH |
1,000 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 3.8 A | 5.5A | Unshielded | 46mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
AIUR-06-272KFIXED IND 2.7MH 390MA 2.8 OHM TH |
1,000 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±10% | 390 mA | 540mA | Unshielded | 2.8Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
AIUR-06-3R9KFIXED IND 3.9UH 6.5A 16 MOHM TH |
998 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 6.5 A | 14.2A | Unshielded | 16mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
PM124SH-4R7M-RCFIXED IND 4.7UH 6A 18 MOHM SMD |
985 |
|
Datasheet |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6 A | 5.6A | Shielded | 18mOhm Max | 16 @ 7.96MHz | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
74404031220AFIXED IND 22UH 740MA 524MOHM SMD |
977 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 0.6 A | 600mA | Shielded | 524mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
RL622-150K-RCFIXED IND 15UH 2.3A 56 MOHM TH |
968 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.3 A | - | Unshielded | 56mOhm Max | 40 @ 2.52MHz | 12MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
SPM5020T-R86M-LRINDUCTORS FOR POWER CIRCUITS, WO |
968 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 860 nH | ±20% | 6.8 A | 10A | Shielded | 17.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.079" (2.00mm) |
|
|
EXLA1V0505-5R6-RIND MOLDED SHLD 5.6UH 5.3A |
920 |
|
Datasheet |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 7.2 A | 7.2A | Shielded | 24.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
|
RL622-121K-RCFIXED IND 120UH 840MA 320MOHM TH |
912 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 840 mA | - | Unshielded | 320mOhm Max | 20 @ 796kHz | 3.4MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
AIUR-06-121KFIXED IND 120UH 2A 127 MOHM TH |
865 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 2 A | 2.6A | Unshielded | 127mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
RL622-120K-RCFIXED IND 12UH 2.7A 50 MOHM TH |
804 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2.7 A | - | Unshielded | 50mOhm Max | 50 @ 2.52MHz | 13MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
SPM5020T-R47M-LRINDUCTORS FOR POWER CIRCUITS, WO |
764 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 8.6 A | 14A | Shielded | 11.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.079" (2.00mm) |
|
EST0645T150MDGAFIXED IND 15UH 2A 64 MOHM SMD |
715 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2 A | 1.7A | Shielded | 64mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.248" L x 0.240" W (6.30mm x 6.10mm) | 0.177" (4.50mm) |
