0Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WCLA3225V1-1R0-RCHIP IND 1.0UH 1.2A SMT 2 PAD |
2,897 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±10% | 1.2 A | - | Unshielded | 120mOhm Max | 10 @ 7.96MHz | 290MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
WL1608FS85NJTFM01FIXED IND 85NH 1.4A 60 MOHM SMD |
2,883 |
|
Datasheet |
WL-FS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 85 nH | ±5% | 1.4 A | - | Unshielded | 60mOhm Max | - | 1.38GHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 | 0.067" L x 0.037" W (1.70mm x 0.95mm) | 0.039" (1.00mm) |
|
|
WCLA3225V1-2R2-RCHIP IND 2.2UH 0.88A SMT 2 PAD |
2,875 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 880 mA | - | Unshielded | 170mOhm Max | 10 @ 7.96MHz | 190MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
SDWL1608CP24NJSTFFIXED IND 24NH 1.1A 85 MOHM SMD |
2,874 |
|
Datasheet |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 24 nH | ±5% | 1.1 A | - | Unshielded | 85mOhm Max | 42 @ 250MHz | 2.95GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
|
SDWL1608CP7N2JSTFFIXED IND 7.2NH 1.4A 70MOHM SMD |
2,870 |
|
Datasheet |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.2 nH | ±5% | 1.4 A | - | Unshielded | 70mOhm Max | 43 @ 250MHz | 5.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
|
WCLA3225V1-470-RCHIP IND 47.0UH 0.26A SMT 2 PAD |
2,834 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 260 mA | - | Unshielded | 1.9Ohm Max | 10 @ 2.52MHz | 10MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
LSXBD6060WHL2R2NFIXED IND 2.2UH 3.7A 26 MOHM SMD |
2,808 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2.2 µH | ±30% | 3.7 A | 4.2A | Shielded | 20mOhm | - | 68MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SDWL1608CP47NJSTFFIXED IND 47NH 680MA 240MOHM SMD |
2,805 |
|
Datasheet |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 680 mA | - | Unshielded | 240mOhm Max | 47 @ 250MHz | 2.3GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
|
WL1608FS4N9KTFM01FIXED IND 4.9NH 2.6A 15MOHM SMD |
2,800 |
|
Datasheet |
WL-FS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.9 nH | ±10% | 2.6 A | - | Unshielded | 15mOhm Max | - | 2.3GHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 | 0.067" L x 0.037" W (1.70mm x 0.95mm) | 0.039" (1.00mm) |
|
LSXBD3030QKT4R7MFIXED IND 4.7UH 1.04A 144MOHM SM |
2,745 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 4.7 µH | ±20% | 1.04 A | 1.02A | Shielded | 120mOhm | - | 40MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
WCLA3225V1-150-RCHIP IND 15.0UH 0.44A SMT 2 PAD |
2,674 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 440 mA | - | Unshielded | 660mOhm Max | 10 @ 2.52MHz | 17MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
NRS6045T1R3NMGKFIXED IND 1.3UH 4.2A 20.8MOHM SM |
2,650 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.3 µH | ±30% | 4.2 A | 8.2A | Shielded | 20.8mOhm Max | - | 95MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
WL1608FSR16KTFM01FIXED IND 160NH 1A 100 MOHM SMD |
2,620 |
|
Datasheet |
WL-FS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±10% | 1 A | - | Unshielded | 100mOhm Max | - | 900MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 | 0.067" L x 0.037" W (1.70mm x 0.95mm) | 0.039" (1.00mm) |
|
|
SDWL1608CPR12GSTFFIXED IND 120NH 420MA 720MOHM SM |
2,514 |
|
Datasheet |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±2% | 420 mA | - | Unshielded | 720mOhm Max | 47 @ 250MHz | 1.55GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
PM0805-68NK-RCFIXED IND 68NH 500MA 270MOHM SMD |
2,401 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 68 nH | ±10% | 500 mA | - | Unshielded | 270mOhm | 60 @ 500MHz | 1.45GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
WCLA3225V1-4R7-RCHIP IND 4.7UH 0.71A SMT 2 PAD |
2,353 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 710 mA | - | Unshielded | 260mOhm Max | 10 @ 7.96MHz | 54MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|

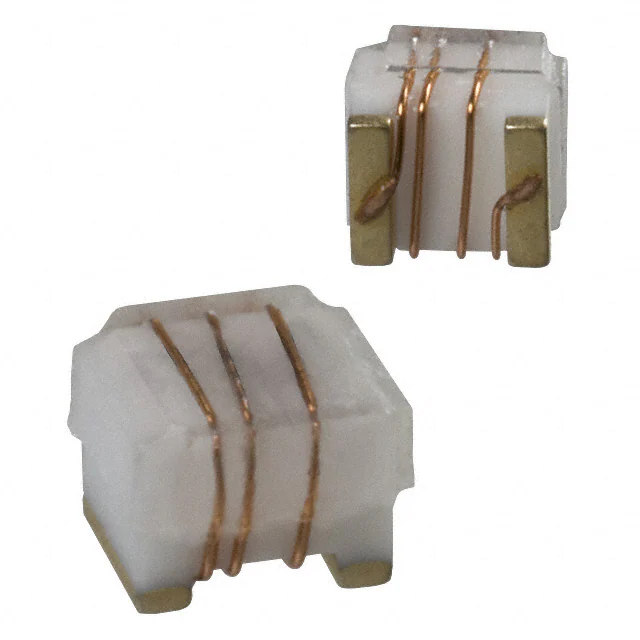

PM1008-3R3K-RCFIXED IND 3.3UH 185MA 1.9OHM SMD |
1,890 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 185 mA | - | Unshielded | 1.9Ohm | 22 @ 7.9MHz | 55MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
PM0805-R12K-RCFIXED IND 120NH 400MA 480MOHM SM |
1,875 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 120 nH | ±10% | 400 mA | - | Unshielded | 480mOhm | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
NRS6045T4R5MMGKFIXED IND 4.5UH 3.1A 39 MOHM SMD |
1,817 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.5 µH | ±20% | 3.1 A | 4.4A | Shielded | 39mOhm Max | - | 25MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
PM0805-6N8M-RCFIXED IND 6.8NH 600MA 60MOHM SMD |
1,500 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 6.8 nH | ±20% | 600 mA | - | Unshielded | 60mOhm | 60 @ 1GHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
