Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

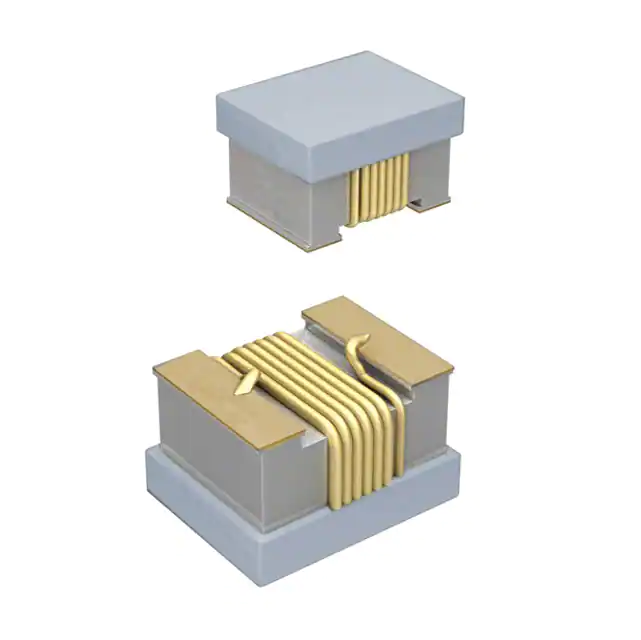

AISC-0805HQ-15NJ-TFIXED IND 15NH 1.2A 100 MOHM SMD |
2,638 |
|
Datasheet |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 1.2 A | - | Unshielded | 100mOhm Max | 80 @ 1GHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
E.JPG)
|
VLS2012ET-220MFIXED IND 22UH 330MA 1.764OHM SM |
2,545 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 22 µH | ±20% | 330 mA | 330mA | Shielded | 1.764Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
CW252016-15NKFIXED IND 15NH 500MA 100MOHM SMD |
2,147 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±10% | 500 mA | - | Unshielded | 100mOhm Max | 40 @ 350MHz | 2.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
.jpg)
|
VLS201612HBX-R33M-1FIXED IND 330NH 4.34A 35MOHM SMD |
2,134 |
|
Datasheet |
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 4.34 A | 3.87A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
CW252016-R82JFIXED IND 820NH 360MA 2.3OHM SMD |
2,000 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±5% | 360 mA | - | Unshielded | 2.3Ohm Max | 45 @ 100MHz | 350MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
NRH3010T100MNVFIXED IND 10UH 620MA 420MOHM SMD |
2,000 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 620 mA | 600mA | Shielded | 420mOhm Max | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
NRH3010T6R8MNVFIXED IND 6.8UH 745MA 300MOHM SM |
1,985 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 745 mA | 700mA | Shielded | 300mOhm Max | - | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

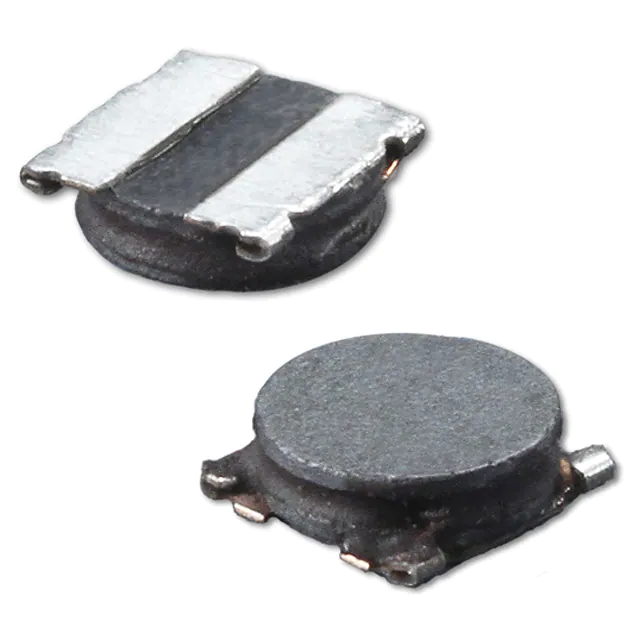

ASPI-0310FS-1R0N-T2FIXED IND 1UH 2.3A 50 MOHM SMD |
1,960 |
|
Datasheet |
ASPI-0310FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1 µH | ±30% | 2.3 A | 2.3A | Shielded | 50mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
BKPB002012102R2MA2FIXED IND 2.2UH 1.1A 190MOHM SMD |
1,947 |
|
Datasheet |
BKPB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.1 A | 400mA | Shielded | 190mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

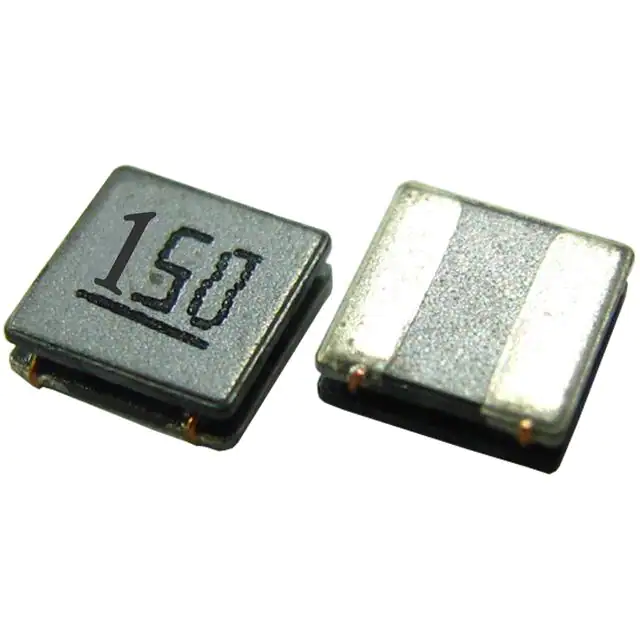

BWVH002520102R2MH1FIXED IND 2.2UH 1.4A 135MOHM SMD |
1,891 |
|
Datasheet |
BWVH | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.4 A | 1.6A | Shielded | 135mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
AISC-0805HQ-5N6J-TFIXED IND 5.6NH 1.6A 35 MOHM SMD |
1,543 |
|
Datasheet |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 1.6 A | - | Unshielded | 35mOhm Max | 98 @ 1.5GHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
AISC-0805HQ-22NJ-TFIXED IND 22NH 1.2A 100 MOHM SMD |
1,305 |
|
Datasheet |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 1.2 A | - | Unshielded | 100mOhm Max | 80 @ 500MHz | 2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
LSXND4040KKL1R0NDGFIXED IND 1UH 1.9A 67.2 MOHM SMD |
10,000 |
|
Datasheet |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.9 A | 2A | Shielded | 67.2mOhm Max | - | 116MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXND4040KKL470MDGFIXED IND 47UH 300MA 1.5 OHM SMD |
9,289 |
|
Datasheet |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 350 mA | 300mA | Shielded | 1.5Ohm Max | - | 13MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
AISM-1812-102K-TFIXED IND 1MH 30MA 40 OHM SMD |
0 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 30 mA | - | Unshielded | 40Ohm Max | 20 @ 252kHz | 2.5MHz | - | -40°C ~ 85°C | 252 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
BDHE00252012R47MQ1FIXED IND 470NH 4.5A 33 MOHM SMD |
5,963 |
|
Datasheet |
BDHE | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 4.5 A | 7A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
PM0603-56NJ-RCFIXED IND 56NH 600MA 310MOHM SMD |
5,900 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 56 nH | ±5% | 600 mA | - | Unshielded | 310mOhm | 35 @ 250MHz | 1.9GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
LCXNE3030KKT470MNFIXED IND 47UH 250MA 2.46OHM SMD |
5,460 |
|
Datasheet |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 285 mA | 250mA | Unshielded | 2.05Ohm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
B78108S1104J009FIXED IND 100UH 370MA 1.7 OHM TH |
5,360 |
|
Datasheet |
BC | Axial | Cut Tape (CT) | Active | Wirewound | - | 100 µH | ±5% | 370 mA | - | Unshielded | 1.7Ohm Max | 70 @ 796kHz | 5MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
CW160808-R27JFIXED IND 270NH 170MA 2.3OHM SMD |
5,329 |
|
Datasheet |
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 270 nH | ±5% | 170 mA | - | Unshielded | 2.3Ohm | 25 @ 100MHz | 990MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
