Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRAP124-1R0-RFIXED IND 1UH 11.65A 3.8MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet |
DRAP124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 11.65 A | 22A | Shielded | 3.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.181" (4.60mm) |
|
UP2.8B-2R2-RFIXED IND 2.2UH 3.1A 35.6MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3.1 A | 5.2A | Unshielded | 35.6mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
|
UP2.8B-101-RFIXED IND 100UH 780MA 622MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 780 mA | 840mA | Unshielded | 622mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
|
UP2.8B-1R5-RFIXED IND 1.5UH 3.3A 34.9MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.3 A | 6.4A | Unshielded | 34.9mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
|
UP2.8B-3R3-RFIXED IND 3.3UH 2.8A 47.4MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.8 A | 4.5A | Unshielded | 47.4mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
|
UP2.8B-4R7-RFIXED IND 4.7UH 2.7A 47.8MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.7 A | 3.9A | Unshielded | 47.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
|
UP2.8B-680-RFIXED IND 68UH 890MA 480MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 890 mA | 1A | Unshielded | 480mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
|
UP2.8B-6R8-RFIXED IND 6.8UH 2.4A 67 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.4 A | 3.2A | Unshielded | 67mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|

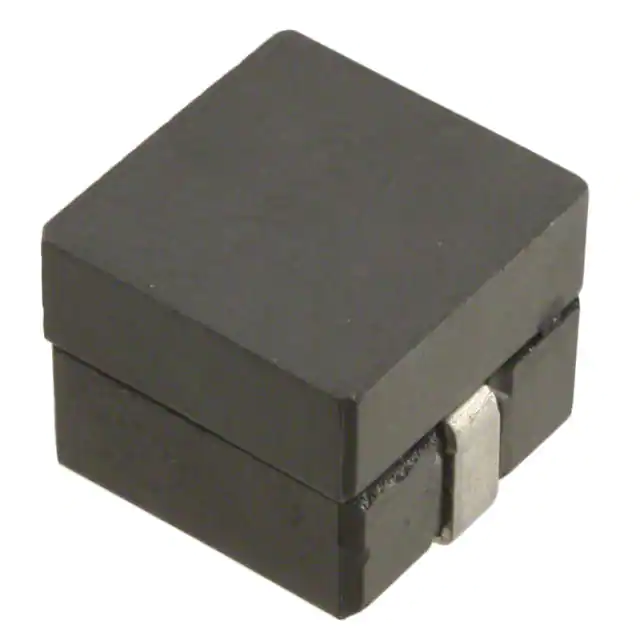

FP1109B1-R150-RFIXED IND 150NH 55A 0.19MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet |
FP1109 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 55 A | 64A | Unshielded | 0.19mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.323" W (11.00mm x 8.20mm) | 0.354" (9.00mm) |
|
MPI4040R1-R15-RFIXED IND 150NH 7A 11 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet |
MPI4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 150 nH | ±20% | 7 A | 26A | Shielded | 11mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
