Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD25-681-RFIXED IND 680UH 262MA 3.88OHM SM Eaton - Electronics Division |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 262 mA | 154mA | Shielded | 3.88Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-820-RFIXED IND 82UH 713MA 524.2 MOHM Eaton - Electronics Division |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 713 mA | 441mA | Shielded | 524.2mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SD25-821-RFIXED IND 820UH 230MA 5.04OHM SM Eaton - Electronics Division |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 230 mA | 139mA | Shielded | 5.04Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
FP1308R3-R26-RFIXED IND 260NH 68A 0.18MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet |
FLAT-PAC, FP1308R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 260 nH | ±10% | 68 A | 64A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.500" W (13.40mm x 12.70mm) | 0.315" (8.00mm) |
|

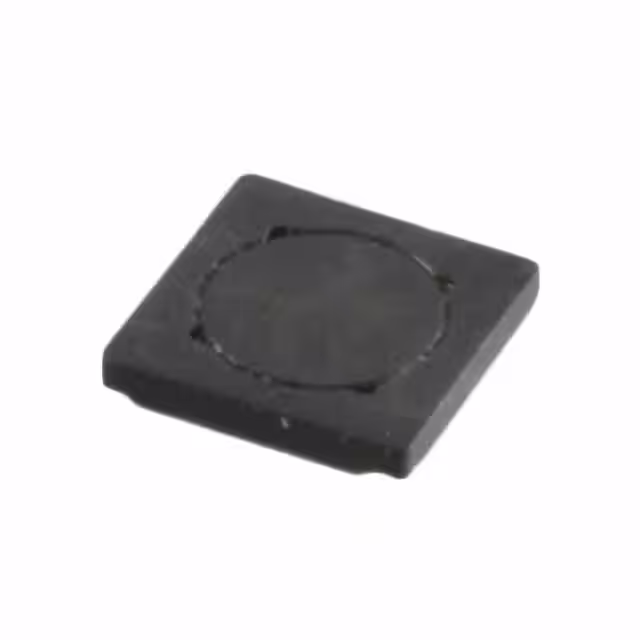

SD10-2R2-RFIXED IND 2.2UH 1.35A 91.2 MOHM Eaton - Electronics Division |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.35 A | 1.65A | Shielded | 91.2mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
TP2-100-RFIXED IND 10UH 1.1A 215.1MOHM SM Eaton - Electronics Division |
0 |
|
Datasheet |
THIN-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 10 µH | ±20% | 1.1 A | 680mA | Unshielded | 215.1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.370" L x 0.260" W (9.40mm x 6.60mm) | 0.087" (2.20mm) |
|
|
TP2-470-RFIXED IND 47UH 600MA 696.2 MOHM Eaton - Electronics Division |
0 |
|
Datasheet |
THIN-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 47 µH | ±20% | 600 mA | 300mA | Unshielded | 696.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.370" L x 0.260" W (9.40mm x 6.60mm) | 0.087" (2.20mm) |
|
|
TP2-6R8-RFIXED IND 6.8UH 1.2A 179.7 MOHM Eaton - Electronics Division |
0 |
|
Datasheet |
THIN-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 6.8 µH | ±20% | 1.2 A | 800mA | Unshielded | 179.7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.370" L x 0.260" W (9.40mm x 6.60mm) | 0.087" (2.20mm) |
|
|
UP2.8B-1R0-RFIXED IND 1UH 3.6A 28.6 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.6 A | 8A | Unshielded | 28.6mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
FP2-V050-RFIXED IND 50NH 37A 0.28 MOHM SMD Eaton - Electronics Division |
0 |
|
Datasheet |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 50 nH | ±15% | 37 A | 70A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.197" (5.00mm) |
