Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLG1005SR11JTD25FIXED IND 110NH 150MA 2.2OHM SMD |
2,635 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 110 nH | ±5% | 150 mA | - | Unshielded | 2.2Ohm Max | 8 @ 100MHz | 700MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

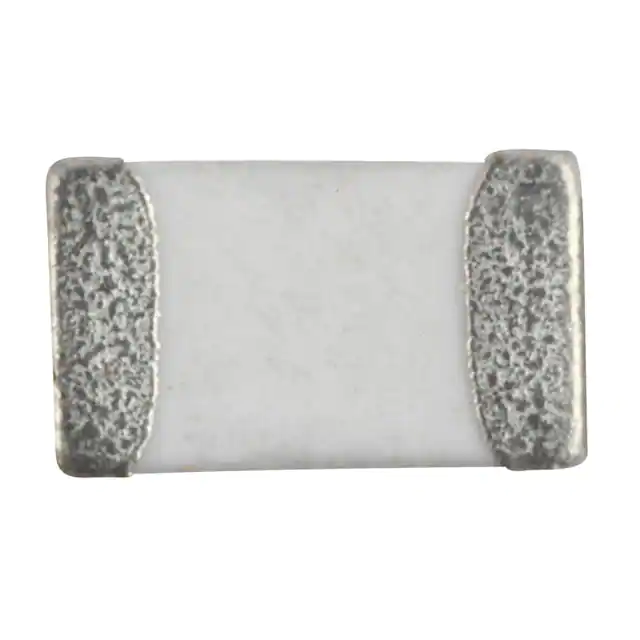

MCL2012V2-221-RFIXED IND 220NH 300MA 1.5OHM SMD |
2,582 |
|
Datasheet |
MCL2012V2 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 220 nH | ±5% | 300 mA | - | Unshielded | 1.5Ohm Max | 12 @ 100MHz | 400MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
7447840127GWE-MK MULTILAYER CERAMIC SMD IND |
2,566 |
|
Datasheet |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 27 nH | ±2% | 300 mA | - | Unshielded | 670mOhm Max | 8 @ 100MHz | 1.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005SR11JT000FIXED IND 110NH 150MA 2.2OHM SMD |
2,500 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 110 nH | ±5% | 150 mA | - | Unshielded | 2.2Ohm Max | 8 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLG0603P3N3CT000FIXED IND 3.3NH 450MA 200MOHM SM |
2,429 |
|
Datasheet |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.3 nH | ±0.2nH | 450 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 7.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LCCI0603S3N9GTARFIXED IND 3.9NH 1A 150 MOHM SMD |
2,370 |
|
Datasheet |
LCCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 1 A | - | Unshielded | 150mOhm Max | 10 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQP03TQ2N4B02DFIXED IND 2.4NH 550MA 150MOHM SM |
2,292 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Not For New Designs | Thick Film | Non-Magnetic | 2.4 nH | ±0.1nH | 550 mA | - | Unshielded | 150mOhm Max | 17 @ 500MHz | 11GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.32mm) |
|
|
7447860047GWE-MK MULTILAYER CERAMIC SMT IND |
2,251 |
|
Datasheet |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.7 nH | ±0.1nH | 300 mA | - | Unshielded | 160mOhm Max | 10 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MCL2012V2-3R3-RFIXED IND 3.3NH 500MA 130MOHM SM |
2,250 |
|
Datasheet |
MCL2012V2 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.3 nH | ±0.3nH | 500 mA | - | Unshielded | 130mOhm Max | 12 @ 100MHz | 5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
MCL1608V2-101-RFIXED IND 100NH 300MA 1.2OHM SMD |
2,249 |
|
Datasheet |
MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 700MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
7447840047GWE-MK MULTILAYER CERAMIC SMD IND |
2,207 |
|
Datasheet |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.7 nH | ±0.1nH | 300 mA | - | Unshielded | 230mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG0603P3N0CT000FIXED IND 3NH 450MA 200 MOHM SMD |
2,197 |
|
Datasheet |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3 nH | ±0.2nH | 450 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 7.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
MCL2012V1-R820-RFIXED IND 820NH 200MA 360MOHM SM |
2,092 |
|
Datasheet |
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 820 nH | ±20% | 200 mA | - | Unshielded | 360mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
7447860156GWE-MK MULTILAYER CERAMIC SMT IND |
2,012 |
|
Datasheet |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 56 nH | ±2% | 300 mA | - | Unshielded | 750mOhm Max | 12 @ 100MHz | 900MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG0603S36NJT000FIXED IND 36NH 50MA 2 OHM SMD |
1,953 |
|
Datasheet |
MLG | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 36 nH | ±5% | 50 mA | - | Unshielded | 2Ohm Max | 6 @ 100MHz | 1.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
7847806680WE-MCI MULTILAYER CERAMIC SMD IN |
1,940 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 68 nH | ±5% | 300 mA | - | Unshielded | 850mOhm Max | 12 @ 100MHz | 700MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
7847805680WE-MCI MULTILAYER CERAMIC SMD IN |
1,829 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 6.8 nH | ±5% | 300 mA | - | Unshielded | 220mOhm Max | 10 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
7847806391WE-MCI MULTILAYER CERAMIC SMD IN |
1,815 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 390 nH | ±5% | 150 mA | - | Unshielded | 2.3Ohm Max | 8 @ 50MHz | 350MHz | AEC-Q200 | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-,65-White-Field.jpg)
|

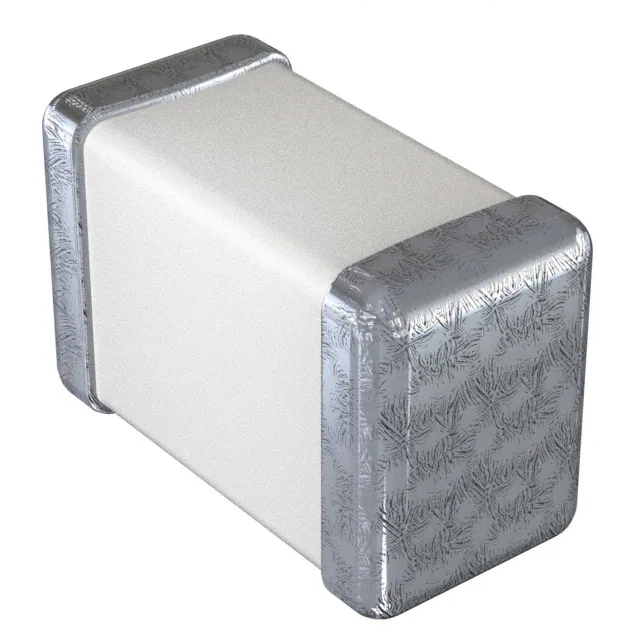

MCL1005-8R2-RFIXED IND 8.2NH 300MA 400MOHM SM |
1,788 |
|
Datasheet |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 8.2 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 3.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
7847805470WE-MCI MULTILAYER CERAMIC SMD IN |
1,650 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.7 nH | ±0.3nH | 300 mA | - | Unshielded | 160mOhm Max | 10 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
