Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447820033FIXED IND 3.3NH 320MA 230MOHM SM |
3,977 |
|
Datasheet |
WE-MK | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 320 mA | - | Unshielded | 230mOhm Max | 4 @ 100MHz | 6.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
MCQ1V2012-R120-RFIXED IND 120NH 250MA 250MOHM SM |
3,963 |
|
Datasheet |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 120 nH | ±10% | 250 mA | - | Unshielded | 250mOhm Max | 20 @ 25MHz | 220MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
MCQ1V2012-2R2-RFIXED IND 2.2UH 50MA 600MOHM SMD |
3,956 |
|
Datasheet |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±10% | 50 mA | - | Unshielded | 600mOhm Max | 35 @ 10MHz | 50MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
MCL2012V1-R100-RFIXED IND 100NH 350MA 200MOHM SM |
3,955 |
|
Datasheet |
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±20% | 350 mA | - | Unshielded | 200mOhm Max | - | 235MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
MCQ1V2012-R100-RFIXED IND 100NH 250MA 200MOHM SM |
3,955 |
|
Datasheet |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±10% | 250 mA | - | Unshielded | 200mOhm Max | 20 @ 25MHz | 235MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
.jpg)
|
LQG15HZ82NH02DFIXED IND 82NH 200MA 1.2OHM SMD |
3,949 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 82 nH | ±3% | 200 mA | - | Unshielded | 1.2Ohm Max | - | 700MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ATFC-0201HQ-3N3B-TFIXED IND 3.3NH 400MA 300MOHM SM |
3,945 |
|
Datasheet |
ATFC-0201HQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | 3.3 nH | ±0.1nH | 400 mA | - | Unshielded | 300mOhm Max | 14 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.011" (0.28mm) |
|
MLG0603P20NJT000FIXED IND 20NH 150MA 1.9 OHM SMD |
3,925 |
|
Datasheet |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 20 nH | ±5% | 150 mA | - | Unshielded | 1.9Ohm Max | 14 @ 500MHz | 2.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MCL1608V1-R082-RFIXED IND 82NH 150MA 120MOHM SMD |
3,918 |
|
Datasheet |
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 82 nH | ±20% | 150 mA | - | Unshielded | 120mOhm Max | - | 245MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCQ1V2012-R560-RFIXED IND 560NH 150MA 600MOHM SM |
3,912 |
|
Datasheet |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 560 nH | ±10% | 150 mA | - | Unshielded | 600mOhm Max | 25 @ 25MHz | 115MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
7847805560WE-MCI MULTILAYER CERAMIC SMD IN |
3,903 |
|
Datasheet |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 300 mA | - | Unshielded | 180mOhm Max | 10 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
SDCL1608CR39JTDFFIXED IND 390NH 150MA 3.2OHM SMD |
3,900 |
|
Datasheet |
SDCL-D | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 390 nH | ±5% | 150 mA | - | Unshielded | 3.2Ohm Max | 8 @ 50MHz | 300MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-,65-White-Field.jpg)
|
MCL1005-120-RFIXED IND 12NH 300MA 500MOHM SMD |
3,762 |
|
Datasheet |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 12 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 8 @ 100MHz | 2.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
7447860039FIXED IND 3.9NH 300MA 140MOHM SM |
3,730 |
|
Datasheet |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 140mOhm Max | 10 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MCQ1V2012-R330-RFIXED IND 330NH 250MA 400MOHM SM |
3,727 |
|
Datasheet |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±10% | 250 mA | - | Unshielded | 400mOhm Max | 20 @ 25MHz | 145MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|

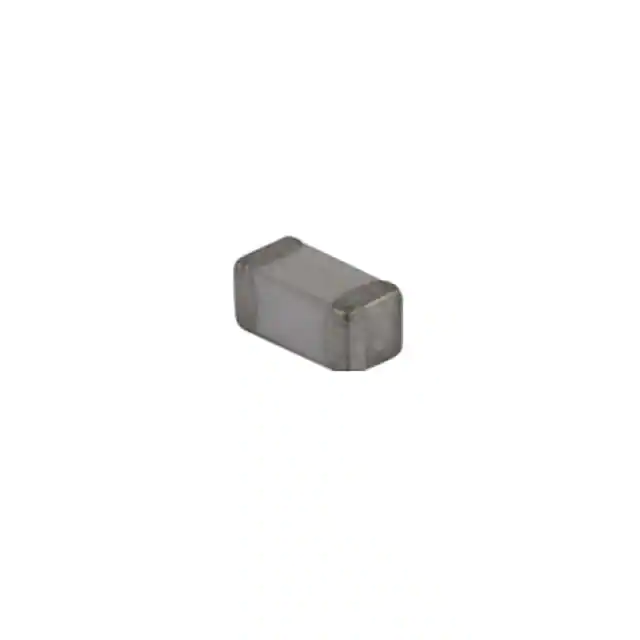

MCLA1608V2-6R8-RFIXED IND 6.8NH 500MA 300MOHM SM |
3,602 |
|
Datasheet |
MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 6.8 nH | ±5% | 500 mA | - | Unshielded | 300mOhm Max | 10 @ 100MHz | 5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQG15WZ15NH02DFIXED IND 15NH 400MA 0.28OHM SMD |
3,575 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 15 nH | ±3% | 400 mA | - | Unshielded | 280mOhm Max | - | 2.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
MCL1608V2-5R6-RFIXED IND 5.6NH 500MA 250MOHM SM |
3,567 |
|
Datasheet |
MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 5.6 nH | ±0.3nH | 500 mA | - | Unshielded | 250mOhm Max | 10 @ 100MHz | 5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
7447840227FIXED IND 270NH 110MA 4.9OHM SMD |
3,565 |
|
Datasheet |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 270 nH | ±5% | 110 mA | - | Unshielded | 4.9Ohm Max | 8 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MCL1608V1-R068-RFIXED IND 68NH 150MA 120MOHM SMD |
3,554 |
|
Datasheet |
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 68 nH | ±20% | 150 mA | - | Unshielded | 120mOhm Max | - | 250MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
