Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82559A0951A013FIXED IND 950NH 25A 1.12MOHM SMD |
3,054 |
|
Datasheet |
ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 950 nH | ±10% | 25 A | 25A | Shielded | 1.12mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | 0.234" (5.95mm) |
|
PE-52649NLFIXED IND 680UH 850MA 1.5 OHM TH |
1,484 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 680 µH | ±20% | 850 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|

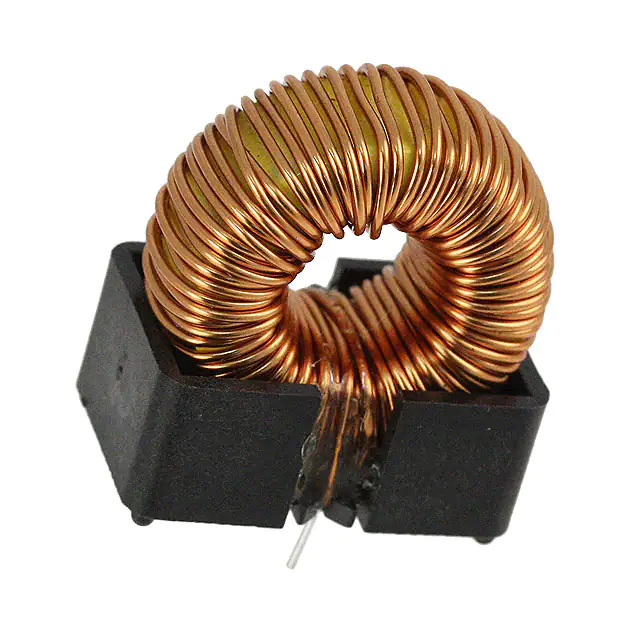

PE-53114NLFIXED IND 470UH 640MA 160MOHM TH |
400 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 470 µH | ±20% | 640 mA | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
1210R-333JFIXED IND 33UH 182MA 5.6 OHM SMD |
122,621 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±5% | 182 mA | - | Unshielded | 5.6Ohm Max | 30 @ 2.5MHz | 15MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
2205-H-RCFIXED IND 22UH 10.3A 10 MOHM TH |
26,884 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±15% | 10.3 A | - | Shielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
HCTI-22-16.4FIXED IND 22UH 16.4A 7 MOHM TH |
6,686 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 22 µH | ±15% | 16.4 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
SD25-8R2-RFIXED IND 8.2UH 1.92A 72.4 MOHM |
2,224 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.92 A | 1.45A | Shielded | 72.4mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
DRA124-680-RFIXED IND 68UH 1.454A 201MOHM SM |
1,630 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.454 A | 2.369A | Shielded | 201mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
UP3B-220-RFIXED IND 22UH 3.1A 49 MOHM SMD |
909 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.1 A | 3.7A | Unshielded | 49mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|
2100LL-151-H-RCFIXED IND 150UH 3.9A 43 MOHM TH |
3,935 |
|
Datasheet |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 150 µH | ±15% | 3.9 A | - | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
7447797470FIXED IND 4.7UH 6.2A 19.5MOHM SM |
1,501 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 6.2 A | 8A | Shielded | 19.5mOhm Max | - | 45MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
|
7447797620FIXED IND 6.2UH 5.7A 22.4MOHM SM |
930 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.2 µH | ±20% | 5.7 A | 7.4A | Shielded | 22.4mOhm Max | - | 36MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
|
7447797180FIXED IND 1.8UH 9.4A 8.4MOHM SMD |
410 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.8 µH | ±20% | 9.4 A | 13A | Shielded | 8.4mOhm Max | - | 86MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
|
7447797110FIXED IND 1.1UH 11.2A 6.65 MOHM |
399 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.1 µH | ±30% | 11.2 A | 16A | Shielded | 6.65mOhm Max | - | 116MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
MPLCV0645L100FIXED IND 10UH 4A 45 MOHM SMD |
6,409 |
|
Datasheet |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 4 A | 6.5A | Shielded | 45mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.264" W (7.90mm x 6.70mm) | 0.177" (4.50mm) |
|
PA5120.481NLTFIXED IND 480NH 32A 1.7MOHM SMD |
3,775 |
|
Datasheet |
PA5120.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 480 nH | ±10% | 32 A | 55A | Shielded | 1.7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.551" W (17.30mm x 14.00mm) | 0.272" (6.90mm) |
|
177CDMCCDS-470MCFIXED IND 47UH 6.5A 49.2MOHM SMD |
1,235 |
|
Datasheet |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 47 µH | ±20% | 6.5 A | 9.1A | Shielded | 49.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
MPLCV0654L330FIXED IND 33UH 2.6A 140 MOHM SMD |
1,139 |
|
Datasheet |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 2.6 A | 4A | Shielded | 140mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.264" W (7.90mm x 6.70mm) | 0.213" (5.40mm) |
|
P3519R-182JFIXED IND 1.8UH 2.59A 44MOHM SMD |
505 |
|
Datasheet |
P3519R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 2.59 A | 3.22A | Unshielded | 44mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
|
SD25-150-RFIXED IND 15UH 1.67A 95.6MOHM SM |
6,925 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.67 A | 1.08A | Shielded | 95.6mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
