Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744710615FIXED IND 6UH 15A 3.5 MOHM TH |
171 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±25% | 15 A | - | Unshielded | 3.5mOhm | - | 45MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.551" Dia x 1.181" L (14.00mm x 30.00mm) | - |
|
PM2120-821K-RCFIXED IND 820UH 2.9A 157MOHM SMD |
4,144 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 820 µH | ±10% | 2.9 A | - | Unshielded | 157mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.850" (21.59mm) |
|
HCTI-470-3.8FIXED IND 470UH 3.8A 130 MOHM TH |
3,706 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 470 µH | ±15% | 3.8 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
DRA73-220-RFIXED IND 22UH 1.42A 141MOHM SMD |
2,728 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.42 A | 1.64A | Shielded | 141mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DRA127-470-RFIXED IND 47UH 2.62A 91 MOHM SMD |
392 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.62 A | 5.09A | Shielded | 91mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
TCK-155FIXED IND 39UH 500MA 1 OHM SMD |
362 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 39 µH | ±20% | 500 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.102" (2.60mm) |
|
PG0426.101NLTFIXED IND 100NH 34.5A 1.5MOHM SM |
5,265 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±20% | 34.5 A | 60A | Shielded | 1.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|
FP4-200-RFIXED IND 200NH 40A 0.65MOHM SMD |
1,942 |
|
Datasheet |
FLAT-PAC 4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±15% | 40 A | 30A | Unshielded | 0.65mOhm Max | - | - | - | -40°C ~ 155°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.268" W (10.20mm x 6.80mm) | 0.197" (5.00mm) |
|
FP1010R1-R150-RFIXED IND 150NH 50A 0.185MOHM SM |
881 |
|
Datasheet |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±15% | 50 A | 64A | Shielded | 0.185mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|
ATCA-01-101M-VFIXED IND 100UH 2A 81 MOHM TH |
439 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 100 µH | ±20% | 2 A | - | Unshielded | 81mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.709" L x 0.453" W (18.00mm x 11.50mm) | - |
|

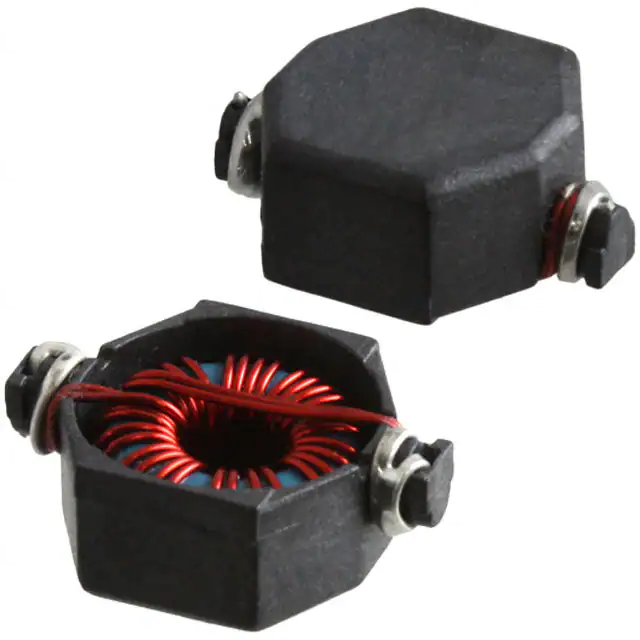

P0438NLTFIXED IND 12.2UH 500MA 161 MOHM |
8,563 |
|
Datasheet |
Ros 1 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 12.2 µH | ±15% | 500 mA | - | Shielded | 161mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.335" L x 0.225" W (8.51mm x 5.72mm) | 0.125" (3.18mm) |
|
DPO-3.0-100FIXED IND 100UH 3A 80 MOHM TH |
2,065 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | - | 3 A | - | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.984" Dia x 0.472" W (25.00mm x 12.00mm) | - |
|
MPLCV0654L220FIXED IND 22UH 3A 94 MOHM SMD |
1,783 |
|
Datasheet |
MPLCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 3 A | 4.2A | Shielded | 94mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.264" W (7.90mm x 6.70mm) | 0.213" (5.40mm) |
|

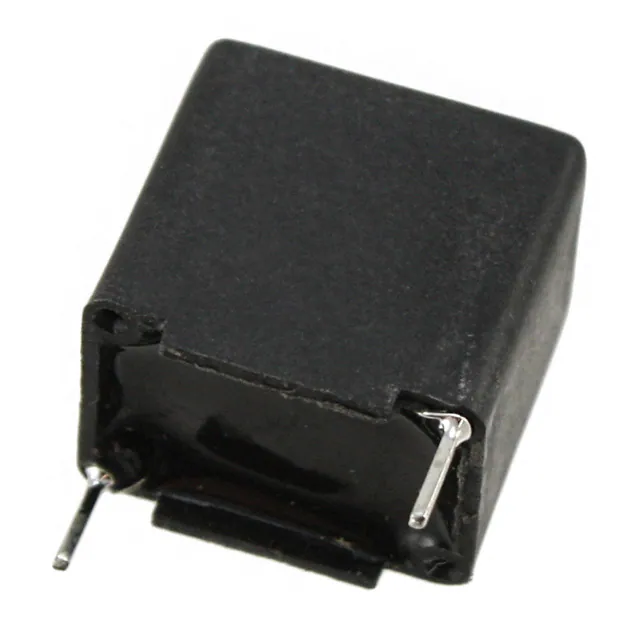

PE-52645NLFIXED IND 150UH 1.7A 420 MOHM TH |
617 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 150 µH | ±20% | 1.7 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|
|
DRA127-150-RFIXED IND 15UH 4.83A 27 MOHM SMD |
398 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 4.83 A | 9.03A | Shielded | 27mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
HCTI-33-11.7FIXED IND 33UH 11.7A 13 MOHM TH |
111 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 33 µH | ±15% | 11.7 A | - | Shielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
FIT50-3FIXED IND 27.16UH 4A 40.1MOHM TH |
2,618 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 27.16 µH | - | 4 A | - | Unshielded | 40.1mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | 0.750" (19.05mm) |
|
|
PG0426.821NLFIXED IND 820NH 13A 8 MOHM SMD |
1,400 |
|
Datasheet |
PG0426NL | Nonstandard | Tray | Active | Wirewound | - | 820 nH | ±20% | 13 A | 24A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|

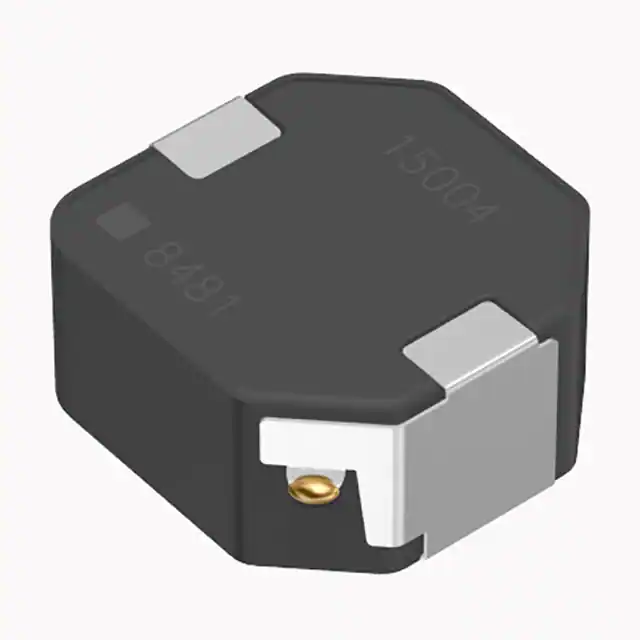

SPM12565VT-2R2M-DFIXED IND 2.2UH 20.2A 0.0034OHM |
1,098 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 20.2 A | 32.8A | Shielded | 3.4mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|
DRA124-470-RFIXED IND 47UH 1.78A 134MOHM SMD |
424 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.78 A | 2.91A | Shielded | 134mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
