Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIUR-15-101KFIXED IND 100UH 3.2A 82 MOHM TH |
745 |
|
Datasheet |
AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 3.2 A | - | Unshielded | 82mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
|
74458220FIXED IND 220UH 1.2A 380MOHM SMD |
461 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | - | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
7843320820FIXED IND 8.2UH 8.8A 15MOHM SMD |
110 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 8.8 A | 12.1A | Shielded | 15mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
74437377047FIXED IND 4.7UH 7.5A 0.015OHM SM |
1,816 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 7.5 A | 25.1A | Shielded | 15mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
HPL505032F1060MRD3PFIXED IND 60NH 34A 777 MOHM SMD |
1,125 |
|
Datasheet |
HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 60 nH | ±20% | 34 A | - | Unshielded | 0.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.126" (3.20mm) |
|
7847709101FIXED IND 100UH 2.2A 120MOHM SMD |
1,103 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 2.2 A | 2.4A | Shielded | 120mOhm Max | - | 4.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.406" (10.30mm) |
|
PA4793.501HLTFIXED IND 500NH 40A 1.15MOHM SMD |
1,000 |
|
Datasheet |
PA4793.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 500 nH | ±10% | 40 A | 60A | Shielded | 1.15mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | SMD | 0.575" L x 0.327" W (14.60mm x 8.30mm) | 0.260" (6.60mm) |
|

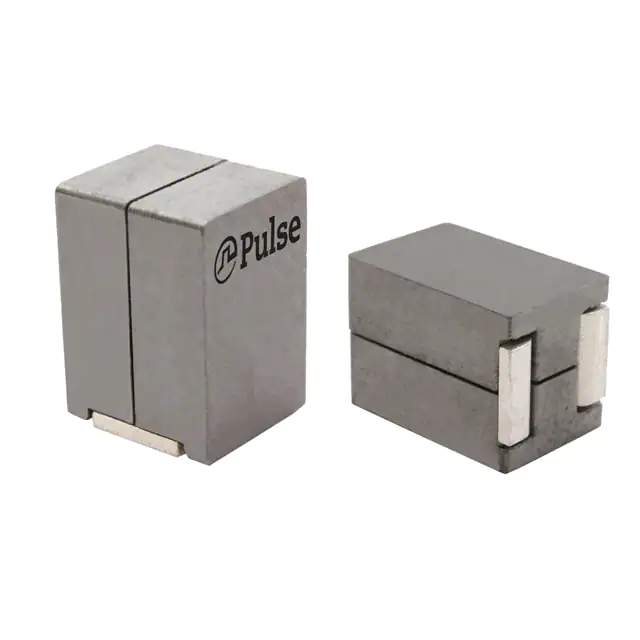

PA5300.221HLTIND PWR BEAD 220NH 80A SMD |
786 |
|
Datasheet |
PA5300.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 80 A | 80A | Shielded | 0.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.610" (15.50mm) |
|
|
744373770047FIXED IND 470NH 19A 0.0016OHM SM |
670 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 19 A | 40.2A | Shielded | 1.6mOhm Max | - | 77MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
7847709220FIXED IND 22UH 4.3A 44 MOHM SMD |
653 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 4.3 A | 5A | Shielded | 44mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.406" (10.30mm) |
|
|
74437377010FIXED IND 1UH 15A 0.0035OHM SMD |
518 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 15 A | 38A | Shielded | 3.5mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
HCTI-68-7.7FIXED IND 68UH 7.7A 30 MOHM TH |
310 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 68 µH | ±15% | 7.7 A | - | Shielded | 30mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
74437377033FIXED IND 3.3UH 9.5A 0.011OHM SM |
300 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 9.5 A | 30.9A | Shielded | 11mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
7847709100FIXED IND 10UH 5A 30 MOHM SMD |
222 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 5 A | 7.5A | Shielded | 30mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.406" (10.30mm) |
|
|
7847709470FIXED IND 47UH 3.2A 67 MOHM SMD |
217 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 3.2 A | 3.5A | Shielded | 67mOhm Max | - | 6.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.406" (10.30mm) |
|
SNT-S20CMC 6UH 1.5A 2LN TH |
208 |
|
Datasheet |
SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 6 µH | - | 1.5 A | - | Unshielded | 35mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.197" W (9.50mm x 5.00mm) | 0.500" (12.70mm) |
|
SNT-S30CMC 13UH 500MA 2LN TH |
143 |
|
Datasheet |
SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 13 µH | - | 500 mA | - | Unshielded | 95mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.197" W (9.50mm x 5.00mm) | 0.500" (12.70mm) |
|
PE-53361NLFIXED IND 530NH 23.8A 3 MOHM SMD |
875 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 530 nH | - | 23.8 A | - | Unshielded | 3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.865" L x 0.715" W (21.97mm x 18.16mm) | 0.390" (9.91mm) |
|
IHSM4825ER471LFIXED IND 470UH 320MA 3.36OHM SM |
2,060 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±15% | 320 mA | 240mA | Unshielded | 3.36Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
P0846SNLTFIXED IND 15UH 5A 27 MOHM SMD |
707 |
|
Datasheet |
LCI-50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 15 µH | ±20% | 5 A | - | Shielded | 27mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
