Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744787027FIXED IND 2.7UH 4.35A 17MOHM SMD |
449 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 4.35 A | 4.5A | Shielded | 17mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
IHLE4040DDER1R0M5AFIXED IND 1UH 23.5A 3.07MOHM SMD |
380 |
|
Datasheet |
IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 23.5 A | 24A | Shielded | 3.07mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
HCMA1305-6R8-RFIXED IND 6.8UH 11A 15 MOHM SMD |
276 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 11 A | 21A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCMA1305-R33-RFIXED IND 330NH 42A 0.92MOHM SMD |
256 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 42 A | 80A | Shielded | 0.92mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
MPI4020V2-6R8-RFIXED IND 6.8UH 2.4A 175MOHM SMD |
8,398 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 2.4 A | 2.5A | Shielded | 175mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
SRP6030CA-R18MFIXED IND 180NH 32A 1.75MOHM SMD |
2,398 |
|
Datasheet |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 180 nH | ±20% | 32 A | 40A | Shielded | 1.75mOhm Max | - | 143MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|

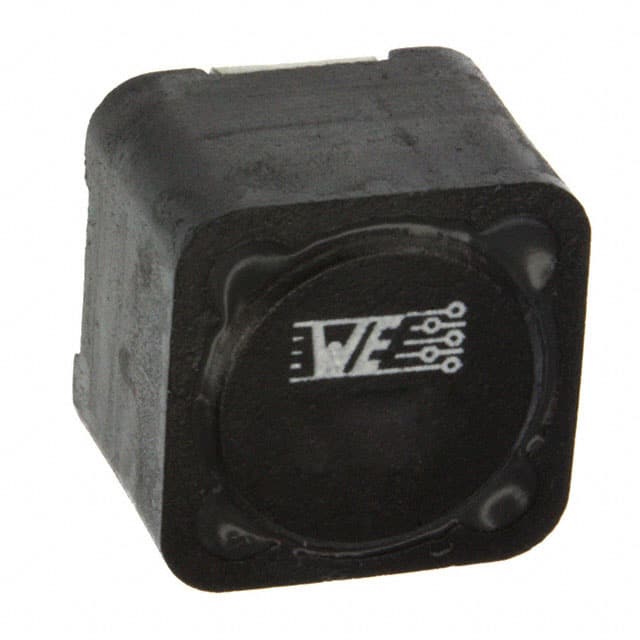

744777001FIXED IND 1UH 6.84A 10 MOHM SMD |
1,634 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | -20%, +40% | 6.84 A | 10.2A | Shielded | 10mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
74402500047FIXED IND 470NH 3.3A 23 MOHM SMD |
1,509 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±25% | 3.3 A | 4.7A | Shielded | 23mOhm Max | - | 290MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|
|
HCMA1305-1R0-RFIXED IND 1UH 29A 2.42 MOHM SMD |
989 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 29 A | 50A | Shielded | 2.42mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
SRP6030CA-R56MFIXED IND 560NH 22A 3.31MOHM SMD |
301 |
|
Datasheet |
SRP6030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 560 nH | ±20% | 22 A | 29A | Shielded | 3.31mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
IHLP4040DZER100M8AIHLP-4040DZ-8A 10 20% ER E3 |
240 |
|
Datasheet |
IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 6.5 A | 8.5A | Shielded | 33.06mOhm Max | - | 11.5MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
MPI4020V2-3R3-RFIXED IND 3.3UH 3.3A 85 MOHM SMD |
8,678 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 3.3 A | 4A | Shielded | 85mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
SRP6050CA-1R2MFIXED IND 1.2UH 18A 5.83MOHM SMD |
1,477 |
|
Datasheet |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 18 A | 22A | Shielded | 5.83mOhm Max | - | 43MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
IHLE4040DDER4R7M5AFIXED IND 4.7UH 9.8A 15.32 MOHM |
1,055 |
|
Datasheet |
IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 9.8 A | 9.2A | Shielded | 15.32mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
B82477P2223M000FIXED IND 22UH 3.4A 36 MOHM SMD |
865 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.4 A | 2.8A | Shielded | 36mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
UP1B-3R3-RFIXED IND 3.3UH 2.9A 42.8MOHM SM |
800 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.9 A | 3A | Unshielded | 42.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
HCM1A1104V2-1R0-RFIXED IND 1UH 19A 3.1 MOHM SMD |
751 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 19 A | 25A | Shielded | 3.1mOhm Max | - | 38MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
IHLE4040DDER6R8M5AFIXED IND 6.8UH 9.1A 22.36 MOHM |
421 |
|
Datasheet |
IHLE-4040DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 9.1 A | 9A | Shielded | 22.36mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
VCHA075D-150MS6PFIXED IND 15UH 3.8A 66 MOHM SMD |
195 |
|
Datasheet |
VCHA075D | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 15 µH | ±20% | 3.8 A | 5.9A | Unshielded | 66mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.283" W (7.70mm x 7.20mm) | 0.213" (5.40mm) |
|
8230-14-RCFIXED IND 560NH 495MA 500MOHM TH |
183 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 560 nH | ±10% | 495 mA | - | Unshielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
