Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784774127FIXED IND 27UH 1.19A 200MOHM SMD |
1,448 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.19 A | 1.4A | Unshielded | 200mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
784774006FIXED IND 600NH 8.2A 18 MOHM SMD |
1,435 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 600 nH | ±20% | 8.2 A | 13.5A | Unshielded | 18mOhm Max | - | 210MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
7447745022FIXED IND 2.2UH 3.6A 36 MOHM SMD |
1,319 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3.6 A | 3.5A | Unshielded | 36mOhm Max | - | 64MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
8250-683K-RCFIXED IND 68MH 24MA 410 OHM TH |
1,249 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±10% | 24 mA | 4mA | Shielded | 410Ohm Max | 50 @ 79kHz | 350kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
|
784774047FIXED IND 4.7UH 3A 71 MOHM SMD |
1,117 |
|
Datasheet |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3 A | 5.5A | Unshielded | 71mOhm Max | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

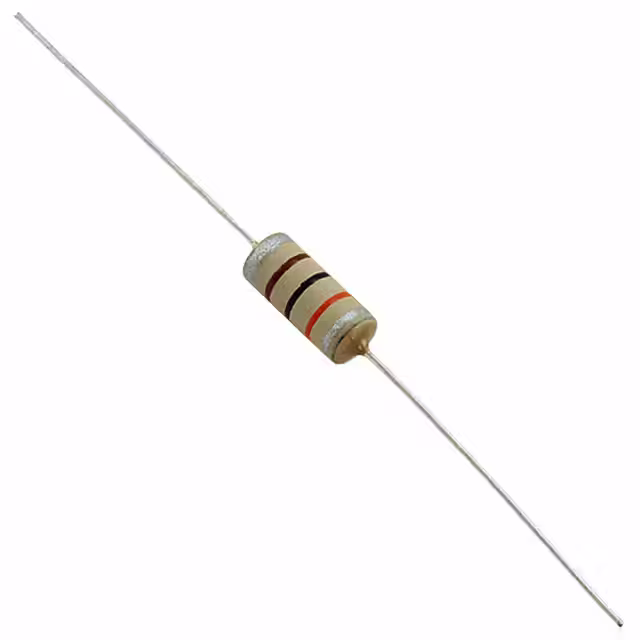

8250-682K-RCFIXED IND 6.8MH 62MA 62 OHM TH |
974 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 62 mA | 16mA | Shielded | 62Ohm Max | 70 @ 250kHz | 1.5MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
8250-473K-RCFIXED IND 47MH 27MA 317 OHM TH |
902 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 27 mA | 5.5mA | Shielded | 317Ohm Max | 50 @ 79kHz | 370kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
|
8250-101K-RCFIXED IND 100UH 322MA 2.28OHM TH |
812 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 322 mA | 120mA | Shielded | 2.28Ohm Max | 65 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
744774127FIXED IND 27UH 1.19A 200MOHM SMD |
800 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.19 A | 1.4A | Unshielded | 200mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
8250-562K-RCIND4.17X11.43MM,560010%0.025A,NO |
744 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 66 mA | 17mA | Shielded | 54.6Ohm Max | 70 @ 250kHz | 1.6MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
744774182FIXED IND 82UH 600MA 600MOHM SMD |
739 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 600 mA | 720mA | Unshielded | 600mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

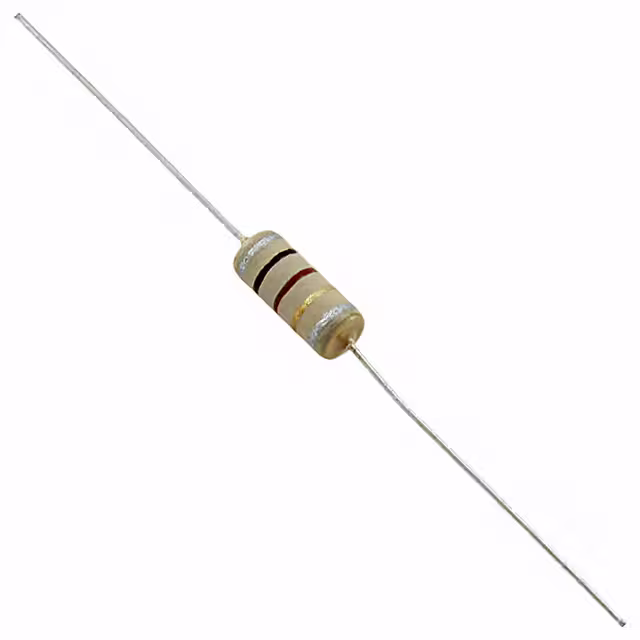

8250-R10K-RCFIXED IND 100NH 3A 26 MOHM TH |
675 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 3 A | 3A | Shielded | 26mOhm Max | 50 @ 25MHz | 400MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
|
8250-563K-RCFIXED IND 56MH 25MA 362 OHM TH |
638 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 mH | ±10% | 25 mA | 5mA | Shielded | 362Ohm Max | 50 @ 79kHz | 360kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
|
744774156FIXED IND 56UH 770MA 420MOHM SMD |
558 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 770 mA | 900mA | Unshielded | 420mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

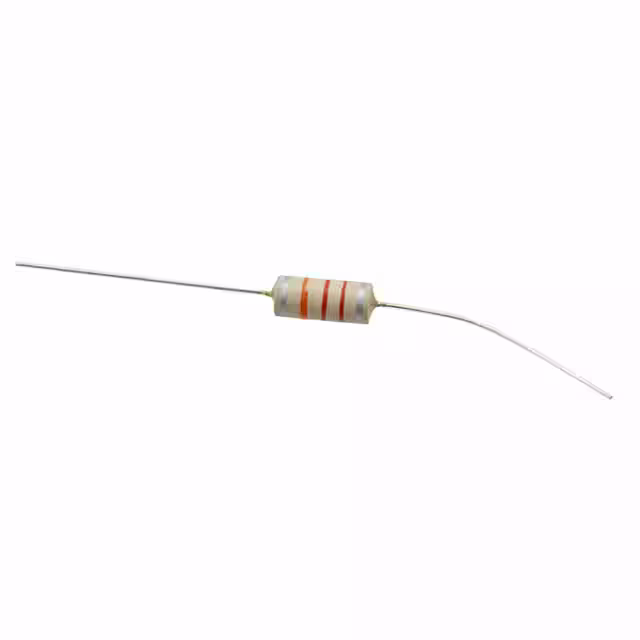

8250-223K-RCFIXED IND 22MH 40MA 145 OHM TH |
494 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 40 mA | 9mA | Shielded | 145Ohm Max | 50 @ 79kHz | 570kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
|
8250-333K-RCFIXED IND 33MH 32MA 222 OHM TH |
477 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 32 mA | 7.5mA | Shielded | 222Ohm Max | 50 @ 79kHz | 420kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
|
8250-273K-RCFIXED IND 27MH 34MA 195 OHM TH |
458 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 mH | ±10% | 34 mA | 8mA | Shielded | 195Ohm Max | 50 @ 79kHz | 460kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
744774215FIXED IND 150UH 460MA 1.1OHM SMD |
421 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 460 mA | 540mA | Unshielded | 1.1Ohm Max | - | 6.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
8250-393K-RCFIXED IND 39MH 31MA 242 OHM TH |
382 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 mH | ±10% | 31 mA | 6mA | Shielded | 242Ohm Max | 50 @ 79kHz | 420kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
MPCH0740LR15FIXED IND 150NH 29A 0.93MOHM SMD |
2,641 |
|
Datasheet |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 150 nH | ±20% | 29 A | 31A | Shielded | 0.93mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
