Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
768772681FIXED IND 680UH 520MA 1.68OHM TH |
216 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 520 mA | 760mA | Unshielded | 1.68Ohm Max | - | 2.15MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
CDRH125NP-390MCFIXED IND 39UH 2A 68 MOHM SMD |
180 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 2 A | - | Shielded | 68mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
768772122FIXED IND 1.2MH 400MA 2.64OHM TH |
180 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 400 mA | 450mA | Unshielded | 2.64Ohm Max | - | 1.65MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

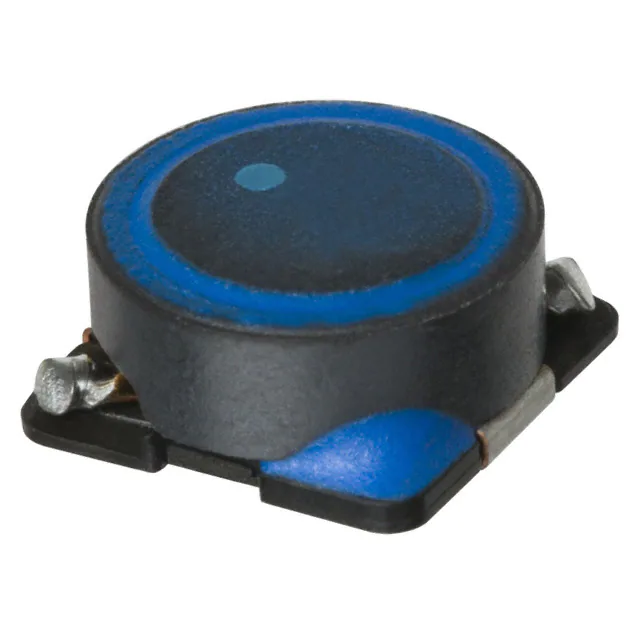

SLF10145T-470M1R4-HFIXED IND 47UH 1.5A 120 MOHM SMD |
10,145 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 1.4A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
SRP5020TA-R47MFIXED IND 470NH 11.5A 8.6MOHM SM |
9,402 |
|
Datasheet |
SRP5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 11.5 A | 18A | Shielded | 8.6mOhm Max | 11 @ 100kHz | 100MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
B82472P6102M000FIXED IND 1UH 3.6A 17 MOHM SMD |
9,031 |
|
Datasheet |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.6 A | 3.3A | Shielded | 17mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SRP5020TA-1R0MFIXED IND 1UH 7A 20 MOHM SMD |
6,100 |
|
Datasheet |
SRP5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 7 A | 13.7A | Shielded | 20mOhm Max | 13 @ 100kHz | 64MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SRP5020TA-6R8MFIXED IND 6.8UH 2.4A 150MOHM SMD |
5,887 |
|
Datasheet |
SRP5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 2.4 A | 3.8A | Shielded | 150mOhm Max | 20 @ 100kHz | 23MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
NS12575T470MNFIXED IND 47UH 2.95A 61.8MOHM SM |
4,387 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.95 A | 3.76A | Shielded | 61.8mOhm Max | - | 6.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
NS12575T221MNFIXED IND 220UH 1.35A 245MOHM SM |
3,916 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.35 A | 1.81A | Shielded | 245mOhm | - | 2.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
NS12575T330MNFIXED IND 33UH 3.48A 46.8MOHM SM |
3,037 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.48 A | 4.45A | Shielded | 46.8mOhm Max | - | 8.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SRP5020TA-100MFIXED IND 10UH 2.3A 199 MOHM SMD |
2,925 |
|
Datasheet |
SRP5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 2.3 A | 3.4A | Shielded | 199mOhm Max | 22 @ 100kHz | 18MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
|
B82472P6683M000FIXED IND 68UH 820MA 260MOHM SMD |
2,912 |
|
Datasheet |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 820 mA | 680mA | Shielded | 260mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
NS12575T2R7NNFIXED IND 2.7UH 7.69A 10.2 MOHM |
2,019 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 7.69 A | 13.91A | Shielded | 10.2mOhm Max | - | 55.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
MPX1D0840L220FIXED IND 22UH 4.2A 98.3MOHM SMD |
1,742 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 4.2 A | 5.5A | Shielded | 98.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
SRP4020FA-R68MFIXED IND 680NH 12A 8.2 MOHM SMD |
1,445 |
|
Datasheet |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 12 A | 8A | Shielded | 8.2mOhm Max | 20 @ 100kHz | 73MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
B82472P6103M000FIXED IND 10UH 1.9A 55 MOHM SMD |
1,212 |
|
Datasheet |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.9 A | 1.4A | Shielded | 55mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
LTF5022T-6R8N1R7-DFIXED IND 6.8UH 1.8A 110MOHM SMD |
1,179 |
|
Datasheet |
LTF5022T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.8 A | 1.7A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.197" W (6.50mm x 5.00mm) | 0.087" (2.20mm) |
|
|
MPX1D0840L100FIXED IND 10UH 6A 49.6 MOHM SMD |
970 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 6 A | 7.5A | Shielded | 49.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
IHLP3232DZER8R2M11FIXED IND 8.2UH 5.7A 45 MOHM SMD |
902 |
|
Datasheet |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 5.7 A | 6.6A | Shielded | 45mOhm Max | - | 12.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
