Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-MPI4040R3-4R7-RFIXED IND 4.7UH 2.3A 92 MOHM SMD |
15,653 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.3 A | 4.8A | Shielded | 92mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|
CDR7D28MNNP-150NCFIXED IND 15UH 2A 81.3 MOHM SMD |
11,990 |
|
Datasheet |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±25% | 2 A | 2.1A | Shielded | 81.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
B82477G4684M000FIXED IND 680UH 680MA 1.24OHM SM |
11,154 |
|
Datasheet |
B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 680 mA | 780mA | Shielded | 1.24Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
|
MHE05031R0M-10HIGH CURRENT LOW DCR POWER INDUC |
7,843 |
|
Datasheet |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 11.1 A | 17A | Shielded | 8.5mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
|
MHE05032R2M-10HIGH CURRENT LOW DCR POWER INDUC |
7,824 |
|
Datasheet |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 9.7 A | 11A | Shielded | 14.5mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
HCM1A0503V2-R20-RFIXED IND 200NH 20.5A 2 MOHM SMD |
4,513 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 200 nH | ±20% | 20.5 A | 20A | Shielded | 2mOhm Max | - | 160MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
DRA73-4R7-RFIXED IND 4.7UH 2.92A 33MOHM SMD |
4,053 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 2.92 A | 3.52A | Shielded | 33mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SPM7054VT-470M-DFIXED IND 47UH 2.5A 0.162OHM SMD |
2,912 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 2.5 A | 3.4A | Shielded | 162mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
MDH6045C-470MA=P3FIXED IND 47UH 1A 160 MOHM SMD |
2,481 |
|
Datasheet |
MDH6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1 A | 880mA | Shielded | 160mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
MDH6045C-100MB=P3FIXED IND 10UH 2A 38 MOHM SMD |
2,260 |
|
Datasheet |
MDH6045C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2 A | 1.8A | Shielded | 38mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
MDH6045C-471MB=P3FIXED IND 470UH 340MA 1.45OHM SM |
2,155 |
|
Datasheet |
MDH6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 340 mA | 240mA | Shielded | 1.45Ohm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
HCM1A0503V2-R47-RFIXED IND 470NH 11A 6.1MOHM SMD |
2,008 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 11 A | 12A | Shielded | 6.1mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
VCMT053T-1R5MN5FIXED IND 1.5UH 8.2A 17.7MOHM SM |
1,630 |
|
Datasheet |
VCMT053T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 8.2 A | 5.5A | Unshielded | 17.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.207" W (5.45mm x 5.25mm) | 0.118" (3.00mm) |
|
PM105-330M-RCFIXED IND 33UH 1.5A 120 MOHM SMD |
1,400 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 2.9A | Unshielded | 120mOhm | 25 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
IHLP2525BDERR47M01FIXED IND 470NH 13.5A 6.5MOHM SM |
1,365 |
|
Datasheet |
IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 13.5 A | 21A | Shielded | 6.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|

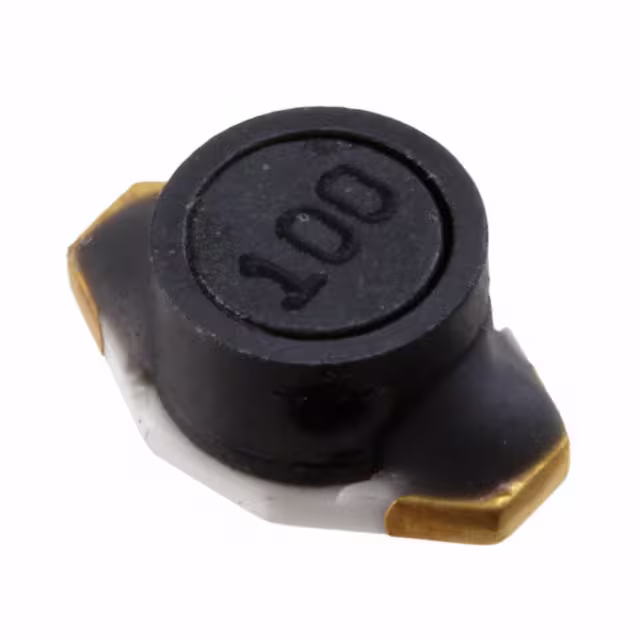

PM1608S-100M-RCFIXED IND 10UH 1A 75 MOHM SMD |
1,140 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | - | Shielded | 75mOhm Max | 40 @ 200kHz | 38MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
ETQ-P5M2R5YFKFIXED IND 2.5UH 14A 8.4 MOHM SMD |
1,122 |
|
Datasheet |
PCC-M0854M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.5 µH | ±20% | 14 A | 20.1A | Shielded | 8.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.213" (5.40mm) |
|
SRR6603-330MLFIXED IND 33UH 600MA 190MOHM SMD |
1,036 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 600 mA | 240mA | Shielded | 190mOhm Max | 40 @ 100kHz | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
|
PM105-471K-RCFIXED IND 470UH 420MA 1.48OHM SM |
923 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 420 mA | 800mA | Unshielded | 1.48Ohm | 12 @ 796kHz | 2.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
MDH6045C-151MA=P3FIXED IND 150UH 540MA 520MOHM SM |
892 |
|
Datasheet |
MDH6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 540 mA | 520mA | Shielded | 520mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
