Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXLA1V0402-R47-RIND MOLDED SHLD 0.47UH 9.8A |
6,372 |
|
Datasheet |
EXLA1V04 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 470 nH | ±20% | 13.2 A | 12.5A | Shielded | 6.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.083" (2.10mm) |
|

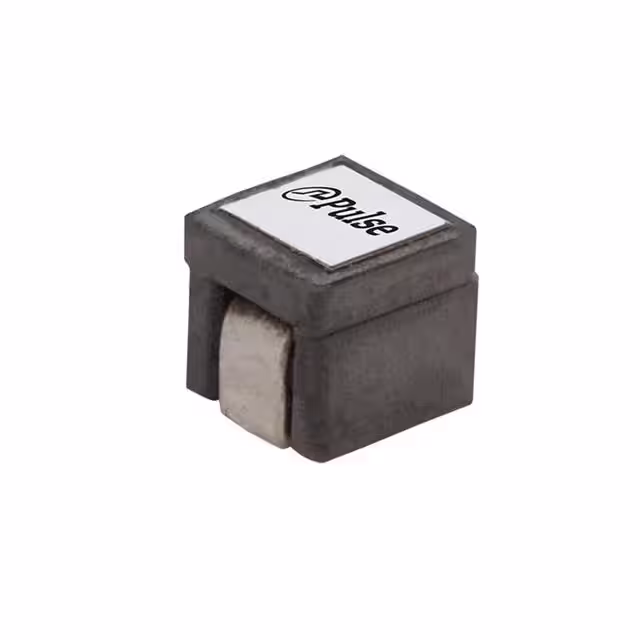

PG2289.101HLTINDUCTOR PWR BEAD 100NH 16A |
3,548 |
|
Datasheet |
PG2289.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±20% | 35 A | 16A | Unshielded | 0.105mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.177" (4.50mm) |
|
VLS4012ET-4R7M-CAFIXED IND 4.7UH 1.9A 118MOHM SMD |
3,313 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.9 A | 1.2A | Shielded | 118mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
AIAP-02-332KFIXED IND 3.3MH 220MA 6.56OHM TH |
2,899 |
|
Datasheet |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 3.3 mH | ±10% | 220 mA | - | Unshielded | 6.56Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|
0530CDMCCDS-1R0MCFIXED IND 1UH 9.4A 14 MOHM SMD |
2,348 |
|
Datasheet |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 9.4 A | 12A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
B82144F2184J000FIXED IND 180UH 950MA 0.785OHM |
2,156 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 950 mA | 720mA | Unshielded | 785mOhm Max | 40 @ 79.6kHz | 4MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
|
AIAP-02-471KFIXED IND 470UH 590MA 1.15OHM TH |
1,238 |
|
Datasheet |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 470 µH | ±10% | 590 mA | - | Unshielded | 1.15Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|
PA4341.332ANLTFIXED IND 3.3UH 6.5A 22 MOHM SMD |
8,073 |
|
Datasheet |
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6.5 A | 9.5A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
LQW03AW11NJ00DFIXED IND 11NH 260MA 470MOHM SMD |
6,113 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 11 nH | ±5% | 260 mA | - | Unshielded | 470mOhm Max | 37 @ 900MHz | 7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
EXLA1V0402-1R5-RIND MOLDED SHLD 1.5UH 6.7A |
5,846 |
|
Datasheet |
EXLA1V04 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 9.1 A | 6.7A | Shielded | 15.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.083" (2.10mm) |
|
|
LQW03AW6N2J00DFIXED IND 6.2NH 360MA 220MOHM SM |
5,294 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 6.2 nH | ±5% | 360 mA | - | Unshielded | 220mOhm Max | 39 @ 900MHz | 9.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
|
LQW03AW5N6J00DFIXED IND 5.6NH 330MA 330MOHM SM |
5,150 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 5.6 nH | ±5% | 330 mA | - | Unshielded | 330mOhm Max | 37 @ 900MHz | 8.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
EXL1V0402-2R2-RFIXED IND 2.2UH 8A 23.5MOHM SMD |
4,326 |
|
Datasheet |
EXL1V0402 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 8 A | 4.8A | Shielded | 23.5mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.083" (2.10mm) |
|
VLCF5020T-330MR62-1FIXED IND 33UH 620MA 717MOHM SMD |
4,148 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 620 mA | 620mA | Shielded | 717mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
DR74-8R2-RFIXED IND 8.2UH 2.53A 44.1 MOHM |
4,144 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 2.53 A | 3.4A | Shielded | 44.1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
|
LQW03AW4N3J00DFIXED IND 4.3NH 480MA 120MOHM SM |
2,900 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.3 nH | ±5% | 480 mA | - | Unshielded | 120mOhm Max | 45 @ 900MHz | 11GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
B82498F1182J000FIXED IND 1.8UH 190MA 980MOHM SM |
2,335 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 190 mA | - | Unshielded | 980mOhm Max | 20 @ 7.96MHz | 350MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
CLF6045T-470M-DFIXED IND 47UH 1.3A 156 MOHM SMD |
2,313 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 900mA | Shielded | 156mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
PA4341.153ANLTFIXED IND 15UH 3A 140 MOHM SMD |
2,042 |
|
Datasheet |
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 3 A | 4.5A | Shielded | 140mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
LQW03AW5N8J00DFIXED IND 5.8NH 460MA 160MOHM SM |
1,526 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 5.8 nH | ±5% | 460 mA | - | Unshielded | 160mOhm Max | 47 @ 900MHz | 8.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
