Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

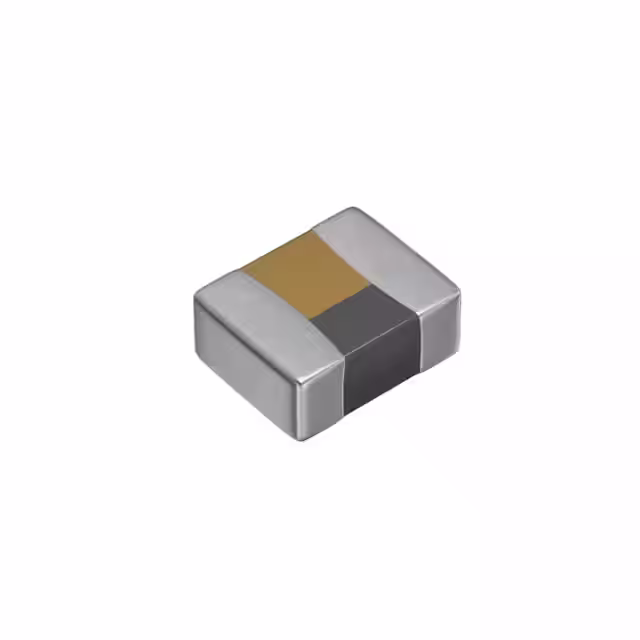

TFM201610ALVA1R5MTAAINDUCTORS FOR POWER CIRCUITS, AU |
13,890 |
|
Datasheet |
TFM-ALVA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 2.6 A | 2.8A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
22R105MCFIXED IND 1MH 210MA 3.63 OHM SMD |
7,913 |
|
Datasheet |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 210 mA | - | Unshielded | 3.63Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
SDR0805-151KLFIXED IND 150UH 580MA 680MOHM SM |
5,723 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 580 mA | 850mA | Unshielded | 680mOhm Max | 12 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
CLF5030NIT-2R2N-DFIXED IND 2.2UH 3.1A 39MOHM SMD |
4,470 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.1 A | 3.42A | Shielded | 39mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
SBC4-4R7-582FIXED IND 4.7UH 5.8A 20 MOHM TH |
3,098 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.8 A | 7.1A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
SDR0805-332KLFIXED IND 3.3MH 100MA 16.5OHM SM |
2,580 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 100 mA | 170mA | Unshielded | 16.5Ohm Max | 28 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
RLB0913-823KFIXED IND 82MH 40MA 212 OHM TH |
2,159 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 82 mH | ±10% | 40 mA | 20mA | Unshielded | 212Ohm | 20 @ 79.6kHz | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-3R3KFIXED IND 3.3UH 4.6A 25 MOHM TH |
1,829 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 4.6 A | 5.5A | Unshielded | 25mOhm | 20 @ 7.96MHz | 79MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-150KFIXED IND 15UH 2.8A 56 MOHM TH |
1,195 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.8 A | 2.3A | Unshielded | 56mOhm | 40 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-152KFIXED IND 1.5MH 285MA 6.1 OHM TH |
1,165 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 285 mA | 80mA | Unshielded | 6.1Ohm | 20 @ 252kHz | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-683KFIXED IND 68MH 45MA 150 OHM TH |
1,162 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±10% | 45 mA | 20mA | Unshielded | 150Ohm | 20 @ 79.6kHz | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-393KFIXED IND 39MH 65MA 80 OHM TH |
1,159 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 39 mH | ±10% | 65 mA | 30mA | Unshielded | 80Ohm | 30 @ 79.6kHz | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-182KFIXED IND 1.8MH 270MA 6.4 OHM TH |
1,157 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 270 mA | 80mA | Unshielded | 6.4Ohm | 20 @ 252kHz | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-333KFIXED IND 33MH 70MA 59.8 OHM TH |
1,153 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 70 mA | 30mA | Unshielded | 59.8Ohm | 30 @ 79.6kHz | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-560KFIXED IND 56UH 1.75A 180 MOHM TH |
1,150 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.75 A | 1.3A | Unshielded | 180mOhm | 30 @ 2.52MHz | 5.4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-272KFIXED IND 2.7MH 230MA 7.7 OHM TH |
1,131 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±10% | 230 mA | 80mA | Unshielded | 7.7Ohm | 20 @ 252kHz | 900kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-331KFIXED IND 330UH 850MA 719MOHM TH |
1,126 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 850 mA | 560mA | Unshielded | 719mOhm | 20 @ 796kHz | 2.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-180KFIXED IND 18UH 2.6A 61 MOHM TH |
1,119 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 2.6 A | 2.2A | Unshielded | 61mOhm | 40 @ 2.52MHz | 11MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-222KFIXED IND 2.2MH 245MA 6.8 OHM TH |
1,053 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 245 mA | 80mA | Unshielded | 6.8Ohm | 20 @ 252kHz | 900kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-123KFIXED IND 12MH 115MA 33 OHM TH |
1,012 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 12 mH | ±10% | 115 mA | 40mA | Unshielded | 33Ohm | 40 @ 79.6MHz | 300kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
