Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS252010CX-1R5M-1FIXED IND 1.5UH 1.9A 86 MOHM SMD |
1,275 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.9 A | 1.75A | Shielded | 86mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
NRH2410T100MNVFIXED IND 10UH 450MA 828MOHM SMD |
1,160 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 450 mA | 550mA | Shielded | 828mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
SRN2010TA-180MFIXED IND 18UH 340MA 1.8 OHM SMD |
1,085 |
|
Datasheet |
SRN2010TA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 340 mA | 400mA | Shielded | 1.8Ohm | 16 @ 1MHz | 35MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SPH252012H2R2MTFIXED IND 2.220%UH 0.08OHM 1950M |
1,033 |
|
Datasheet |
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.95 A | 1.95A | Shielded | 96mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
PM1812-330J-RCFIXED IND 33UH 160MA 4 OHM SMD |
1,010 |
|
Datasheet |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±5% | 160 mA | - | Unshielded | 4Ohm Max | 50 @ 2.52MHz | 11MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
NRS6045T6R3MMGKVFIXED IND 6.3UH 3A 46.8 MOHM SMD |
24,383 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.3 µH | ±20% | 3 A | 3.6A | Shielded | 46.8mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
ASPI-0418FS-221M-T3FIXED IND 220UH 280MA 3.552 OHM |
22,385 |
|
Datasheet |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 250 mA | 330mA | Shielded | 3.84Ohm Max | - | 4.2MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
NR4012T150MFIXED IND 15UH 600MA 480MOHM SMD |
21,375 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 600 mA | 560mA | Shielded | 480mOhm Max | - | 23MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
NR3010T150MFIXED IND 15UH 400MA 888MOHM SMD |
17,971 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 400 mA | 400mA | Shielded | 888mOhm Max | - | 30MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
NR6045T1R0NFIXED IND 1UH 4.2A 18.2 MOHM SMD |
11,686 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.2 A | 8.5A | Shielded | 18.2mOhm Max | - | 110MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
B78148E1682K000FIXED IND 6.8UH 2.45A 105MOHM TH |
9,816 |
|
Datasheet |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.45 A | 2.3A | Unshielded | 105mOhm Max | 40 @ 7.96MHz | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|
744760239CFIXED IND 390NH 290MA 2.1OHM SMD |
9,770 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 290 mA | - | Unshielded | 2.1Ohm Max | 35 @ 250MHz | 560MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
744761151CFIXED IND 51NH 600MA 240MOHM SMD |
8,743 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 51 nH | ±5% | 600 mA | - | Unshielded | 240mOhm Max | 32 @ 200MHz | 1.95GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
VLS201610ET-6R8MFIXED IND 6.8UH 530MA 840MOHM SM |
7,868 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 530 mA | 530mA | Shielded | 840mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
744760256CFIXED IND 560NH 230MA 2.5OHM SMD |
7,768 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±5% | 230 mA | - | Unshielded | 2.5Ohm Max | 23 @ 50MHz | 340MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|

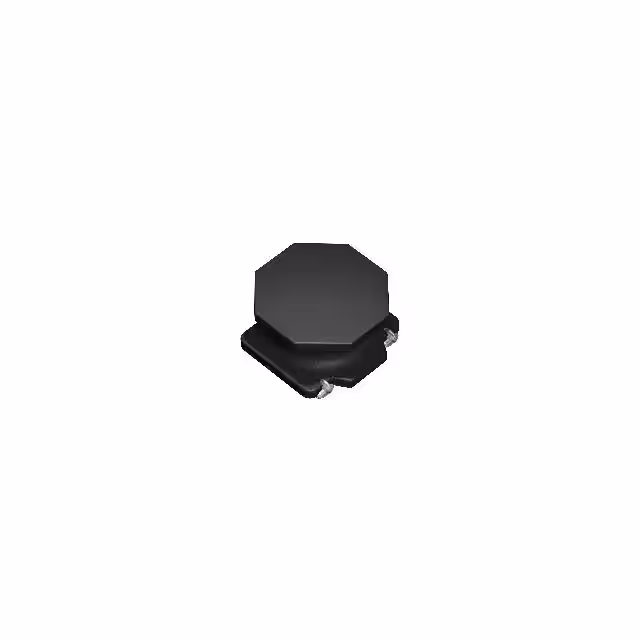

LSDND1616KKT1R5MMFIXED IND 1.5UH 1.33A 185MOHM SM |
7,500 |
|
Datasheet |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 1.1 A | 1.75A | Shielded | 185mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | 0.039" (1.00mm) |
|
|
744760233CFIXED IND 330NH 310MA 1.56OHM SM |
6,831 |
|
Datasheet |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 310 mA | - | Unshielded | 1.56Ohm Max | 35 @ 250MHz | 600MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
NRS6028T220MMGJVFIXED IND 22UH 1.4A 175.5MOHM SM |
6,554 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.3A | Shielded | 175.5mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
MDMK2020T1R0MMFIXED IND 1UH 1.9A 64 MOHM SMD |
6,379 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 1.9 A | 2.9A | Shielded | 64mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
B78108E1333J009FIXED IND 33UH 1.05A 550 MOHM TH |
6,358 |
|
Datasheet |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 1.05 A | 1A | Unshielded | 550mOhm Max | 50 @ 796kHz | 9MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
