Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15CN2R2M10DFIXED IND 2.2UH 170MA 1.8OHM SMD |
5,459 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 170 mA | - | Unshielded | 1.8Ohm Max | - | 100MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
B78148E1472K000FIXED IND 4.7UH 2.75A 85 MOHM TH |
5,441 |
|
Datasheet |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 2.75 A | 2.7A | Unshielded | 85mOhm Max | 45 @ 7.96MHz | 35MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|
LCXNE2424KKT6R8MNFIXED IND 6.8UH 570MA 492MOHM SM |
5,000 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 570 mA | 750mA | Unshielded | 410mOhm | - | 43MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|

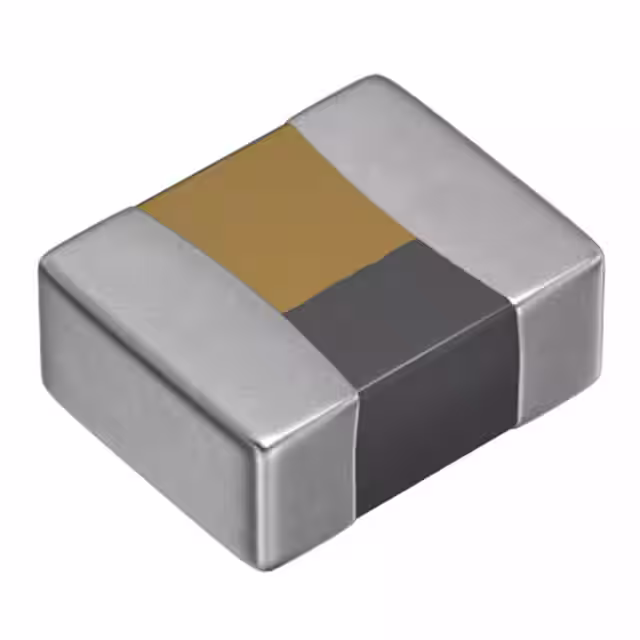

TFM201608ALC-1R0MTCAFIXED IND 1UH 2.8A 66 MOHM SMD |
4,903 |
|
Datasheet |
TFM-ALC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 2.8 A | 2.5A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
SDCL1V4020-2R2M-RIND 2.2 UH 6.1A SMT |
4,846 |
|
Datasheet |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 4.2 A | 6.1A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
NRS6014T4R7MMGGFIXED IND 4.7UH 1.95A 108MOHM SM |
4,000 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.95 A | 2A | Shielded | 108mOhm Max | - | 36MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
LCXND4040TKL101MDGFIXED IND 100UH 280MA 1.74OHM SM |
3,849 |
|
Datasheet |
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 280 mA | 420mA | Unshielded | 1.45Ohm | - | 6.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
NRS6020T1R5NMGJFIXED IND 1.5UH 3.6A 31.2MOHM SM |
3,845 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.6 A | 4.3A | Shielded | 31.2mOhm Max | - | 93MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
NRS4018T680MDGJVFIXED IND 68UH 320MA 1.2 OHM SMD |
3,822 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 320 mA | 520mA | Shielded | 1.2Ohm Max | - | 8.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
BDQQ001412FER24MCAINDUCTOR PWR MOLDED 0.24UH 5.5A |
3,438 |
|
Datasheet |
BDQQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 4 A | 5.5A | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | - | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.026" (0.65mm) |
|
VLS201612CX-3R3M-1FIXED IND 3.3UH 1.37A 170MOHM SM |
3,005 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.37 A | 1.04A | Shielded | 170mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
HLC022R0BTTRFIXED IND 2NH 596MA 180 MOHM SMD |
3,004 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2 nH | ±0.1nH | 596 mA | - | Unshielded | 180mOhm Max | 26 @ 450MHz | 17GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
NRS5014T2R2NMGGFIXED IND 2.2UH 2A 78 MOHM SMD |
2,812 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2 A | 2.8A | Shielded | 78mOhm Max | - | 56MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.055" (1.40mm) |
|
L02012R7BHSTR\500FIXED IND 2.7NH 180MA 700MOHM SM |
2,625 |
|
Datasheet |
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 2.7 nH | ±0.1nH | 180 mA | - | Unshielded | 700mOhm Max | 7 @ 450MHz | 14GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.011" (0.28mm) |
|
SRN3012TA-6R8MFIXED IND 6.8UH 1.05A 180MOHM SM |
2,457 |
|
Datasheet |
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.05 A | 900mA | Shielded | 180mOhm | 20 @ 1MHz | 45MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
CC453232-221KLFIXED IND 220UH 120MA 9 OHM SMD |
2,435 |
|
Datasheet |
CC453232 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 120 mA | - | Unshielded | 9Ohm Max | 20 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NRS4018T1R0NDGJVFIXED IND 1UH 3.2A 32.4 MOHM SMD |
2,153 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.2 A | 4A | Shielded | 32.4mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
NRM6045T471MMRRVFIXED IND 470UH 220MA 2.76OHM SM |
2,080 |
|
Datasheet |
NR, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 220 mA | 450mA | Unshielded | 2.76Ohm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SRN2009T-4R7MFIXED IND 4.7UH 750MA 400MOHM SM |
1,990 |
|
Datasheet |
SRN2009T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 750 mA | 750mA | Shielded | 400mOhm | 15 @ 1MHz | 90MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
CC453232-180KLFIXED IND 18UH 400MA 800MOHM SMD |
1,704 |
|
Datasheet |
CC453232 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 400 mA | - | Unshielded | 800mOhm Max | 10 @ 2.52MHz | 19MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
