Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78F8R2JFIXED IND 8.2UH 155MA 550MOHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 155 mA | - | Unshielded | 550mOhm Max | 40 @ 7.9MHz | 28MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F100JFIXED IND 10UH 130MA 720 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 130 mA | - | Unshielded | 720mOhm Max | 40 @ 7.9MHz | 22MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F150JFIXED IND 15UH 150MA 880 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 150 mA | - | Unshielded | 880mOhm Max | 50 @ 2.5MHz | 16MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
78F180JFIXED IND 18UH 145MA 1 OHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 145 mA | - | Unshielded | 1Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F220JFIXED IND 22UH 140MA 1.2 OHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 140 mA | - | Unshielded | 1.2Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

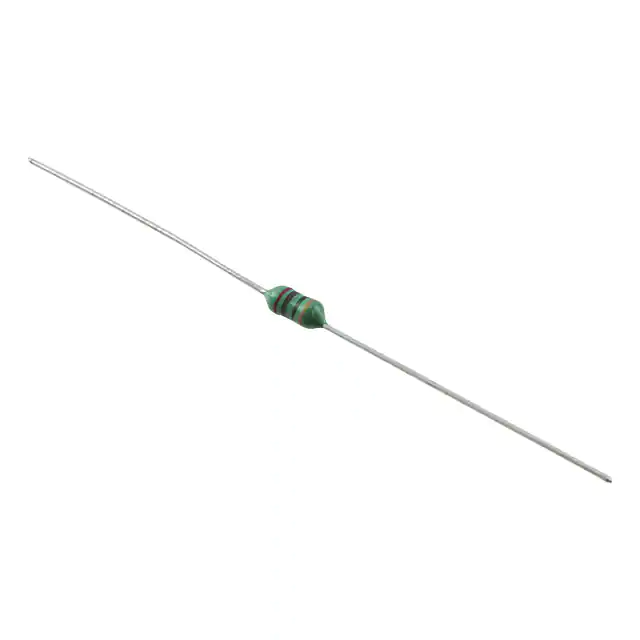

78F270JFIXED IND 27UH 135MA 1.35 OHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±5% | 135 mA | - | Unshielded | 1.35Ohm Max | 50 @ 2.5MHz | 11MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
78F390JFIXED IND 39UH 185MA 1.7 OHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±5% | 185 mA | - | Unshielded | 1.7Ohm Max | 50 @ 2.5MHz | 9.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F470JFIXED IND 47UH 167MA 2.3 OHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 167 mA | - | Unshielded | 2.3Ohm Max | 60 @ 2.5MHz | 8.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
78F560JFIXED IND 56UH 150MA 2.6 OHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 150 mA | - | Unshielded | 2.6Ohm Max | 60 @ 2.5MHz | 7.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F680JFIXED IND 68UH 137MA 2.9 OHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 137 mA | - | Unshielded | 2.9Ohm Max | 60 @ 2.5MHz | 6.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
