Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM0805H-3N9FIXED IND 3.9NH 300MA 150MOHM SM Bourns Inc. |
0 |
|
Datasheet |
PM0805H | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 150mOhm Max | 13 @ 100MHz | 5.4GHz | - | -25°C ~ 105°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.033" (0.85mm) |
|
|
PM0805H-470NJFIXED IND 470NH 300MA 1.2OHM SMD Bourns Inc. |
0 |
|
Datasheet |
PM0805H | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 470 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 16 @ 50MHz | 430MHz | - | -25°C ~ 105°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.049" (1.25mm) |
|
|
PM0805H-6N8JFIXED IND 6.8NH 300MA 250MOHM SM Bourns Inc. |
0 |
|
Datasheet |
PM0805H | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 6.8 nH | ±5% | 300 mA | - | Unshielded | 250mOhm Max | 15 @ 100MHz | 3.65GHz | - | -25°C ~ 105°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.033" (0.85mm) |
|
|
PM0805H-8N2JFIXED IND 8.2NH 300MA 280MOHM SM Bourns Inc. |
0 |
|
Datasheet |
PM0805H | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 8.2 nH | ±5% | 300 mA | - | Unshielded | 280mOhm Max | 15 @ 100MHz | 3GHz | - | -25°C ~ 105°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.033" (0.85mm) |
|
|
CW161009A-R47JIND,1.7X1.2X.9MM,470NH5%,0.13A,N Bourns Inc. |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

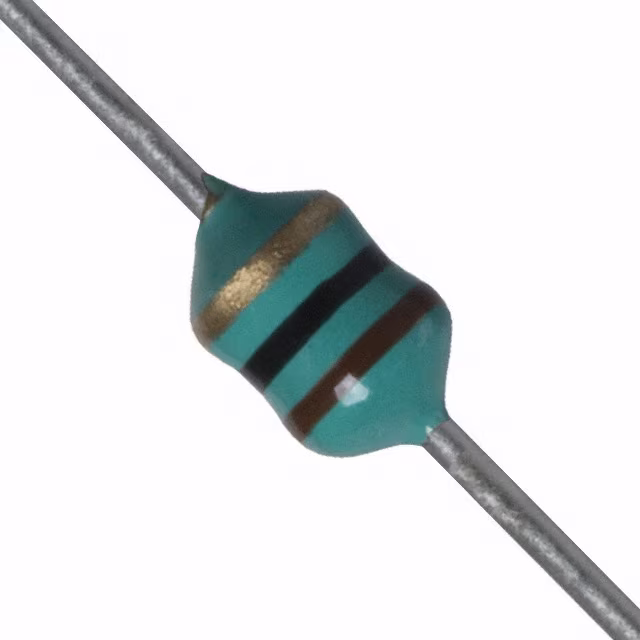

79F1R0K-TR-RCFIXED IND 1UH 270MA 800 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
79F | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 270 mA | - | Unshielded | 800mOhm Max | 35 @ 25MHz | 150MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
79F470K-TR-RCFIXED IND 47UH 70MA 5.8 OHM TH Bourns Inc. |
0 |
|
Datasheet |
79F | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 70 mA | - | Unshielded | 5.8Ohm Max | 40 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
79F2R2K-TR-RCFIXED IND 2.2UH 230MA 1.2 OHM TH Bourns Inc. |
0 |
|
Datasheet |
79F | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 230 mA | - | Unshielded | 1.2Ohm Max | 40 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
78FR10MFIXED IND 100NH 500MA 60 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 500 mA | - | Unshielded | 60mOhm Max | 40 @ 25MHz | 400MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
78FR15MFIXED IND 150NH 500MA 70 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 500 mA | - | Unshielded | 70mOhm Max | 40 @ 25MHz | 400MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
