Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

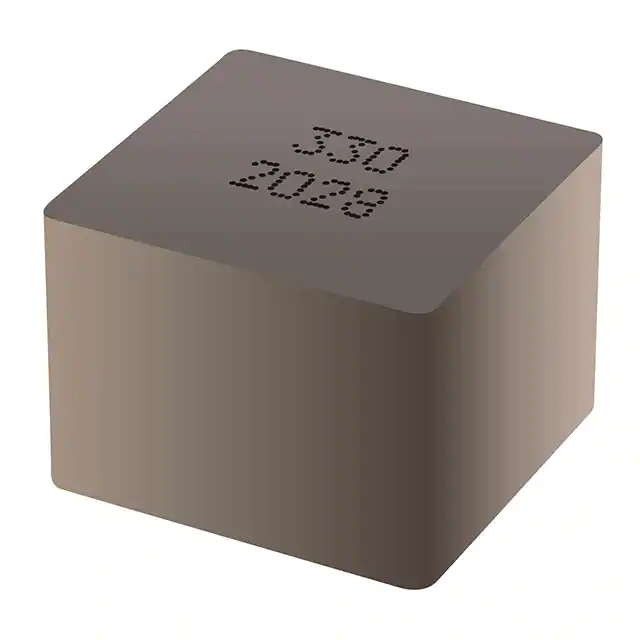

SRP1513CA-4R7MIND,16.5X15.5X12.7MM,4.7UH20%,31 Bourns Inc. |
22 |
|
Datasheet |
SRP1513CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 31 A | 44A | Shielded | 3.3mOhm Max | 40 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
|
SRP1513CA-8R2MIND,16.5X15.5X12.7MM,8.2UH20%,26 Bourns Inc. |
0 |
|
Datasheet |
SRP1513CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 8.2 µH | ±20% | 26 A | 33A | Shielded | 5.74mOhm Max | 40 @ 100kHz | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
2300HT-391-H-RCFIXED IND 390UH 4.7A 130 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 390 µH | ±15% | 4.7 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
2300HT-331-V-RCFIXED IND 330UH 4.9A 100 MOHM TH Bourns Inc. |
18 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 330 µH | ±15% | 4.9 A | - | Shielded | 100mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
CI160808-R27JFIXED IND 270NH 200MA 3.1OHM SMD Bourns Inc. |
0 |
|
Datasheet |
CI160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 270 nH | ±5% | 200 mA | - | Unshielded | 3.1Ohm Max | 8 @ 50MHz | 450MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
CV201210-47NKFIXED IND 47NH 300MA 200MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 47 nH | ±10% | 300 mA | - | Shielded | 200mOhm Max | 15 @ 50MHz | 320MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
CV201210-68NKFIXED IND 68NH 300MA 200MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 68 nH | ±10% | 300 mA | - | Shielded | 200mOhm Max | 15 @ 50MHz | 280MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
CV201210-82NKFIXED IND 82NH 300MA 200MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 82 nH | ±10% | 300 mA | - | Shielded | 200mOhm Max | 15 @ 50MHz | 255MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
CV201210-R12KFIXED IND 120NH 250MA 300MOHM SM Bourns Inc. |
0 |
|
Datasheet |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 120 nH | ±10% | 250 mA | - | Shielded | 300mOhm Max | 20 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
CV201210-R15KFIXED IND 150NH 250MA 400MOHM SM Bourns Inc. |
0 |
|
Datasheet |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±10% | 250 mA | - | Shielded | 400mOhm Max | 20 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
