Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN2510BTA-100MFIXED IND 10UH 1A 0.552OHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRN2510BTA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 750mA | Shielded | 552mOhm Max | 10 @ 1MHz | 30MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SRN3010C-6R8MFIXED IND 6.8UH 1.3A 312MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRN3010C | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.5 A | 1.1A | Shielded | 312mOhm Max | 10 @ 100kHz | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN3010BTA-150MFIXED IND 15UH 900MA 0.678OHM SM Bourns Inc. |
0 |
|
Datasheet |
SRN3010BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 900 mA | 650mA | Shielded | 678mOhm Max | 10 @ 1MHz | 33MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRN6028C-101MFIXED IND 100UH 660MA 720MOHM SM Bourns Inc. |
93 |
|
Datasheet |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 720 mA | 800mA | Shielded | 605mOhm | 15 @ 100kHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

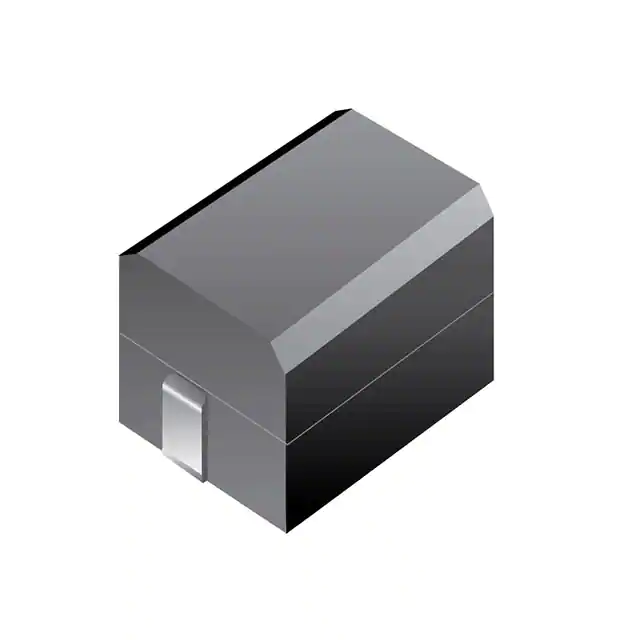

CC322522A-101KFIXED IND 100UH 180MA 9 OHM SMD Bourns Inc. |
0 |
|
Datasheet |
CC322522A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 180 mA | 150mA | Unshielded | 9Ohm Max | 20 @ 796kHz | 8MHz | AEC-Q200 | -40°C ~ 150°C | 796 kHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
SRP7028CC-1R5MIND SMD 1.5UH 9A Bourns Inc. |
0 |
|
Datasheet |
SRP7028CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 9 A | 18A | Shielded | 14mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
SRN8040TA-1R4YFIXED IND 1.4UH 8.2A 10 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±30% | 8.2 A | 11.8A | Shielded | 10mOhm | 15 @ 1MHz | 78MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
SRU2013-6R8YFIXED IND 6.8UH 800MA 330MOHM SM Bourns Inc. |
0 |
|
Datasheet |
SRU2013 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 800 mA | 600mA | Shielded | 330mOhm Max | 10 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
|
SRP7050WA-5R6MIND POWER HC 5.6UH 9.3A SHLD Bourns Inc. |
0 |
|
Datasheet |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 9.3 A | 11A | Shielded | 22.1mOhm Max | 20 @ 100kHz | 16MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
|
SRP1038CC-1R0MIND SMD 1UH 20A Bourns Inc. |
0 |
|
Datasheet |
SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 1 µH | ±20% | 20 A | 39A | Shielded | 4mOhm Max | - | 47MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
