Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

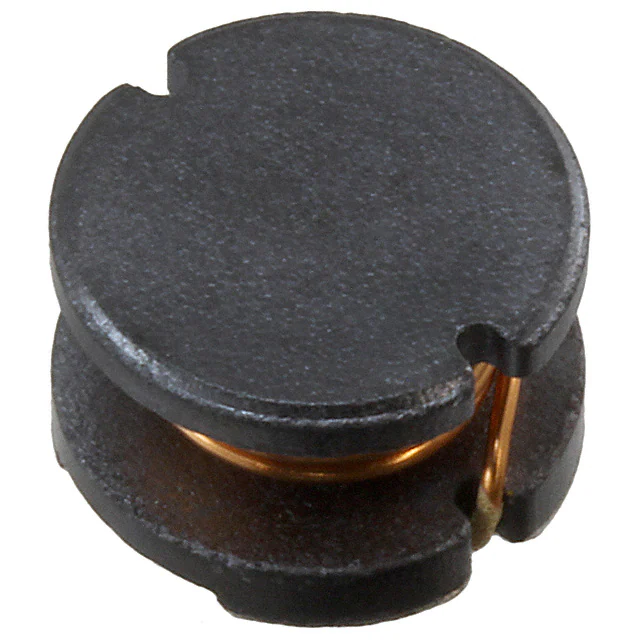

PM75-100K-RCFIXED IND 10UH 2.3A 70 MOHM SMD Bourns Inc. |
979 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | 3.2A | Unshielded | 70mOhm Max | 25 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
PM75-470K-RCFIXED IND 47UH 1A 200 MOHM SMD Bourns Inc. |
969 |
|
Datasheet |
PM75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1 A | 1.6A | Unshielded | 200mOhm Max | 15 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
6000-120K-RCFIXED IND 12UH 3.1A 50 MOHM TH Bourns Inc. |
86 |
|
Datasheet |
6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 3.1 A | - | Unshielded | 50mOhm Max | 50 @ 2.52MHz | 13MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
SRR0805-150MFIXED IND 15UH 1.3A 140 MOHM SMD Bourns Inc. |
1,645 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.3 A | 1.8A | Shielded | 140mOhm Max | 40 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
SRR0805-2R2MFIXED IND 2.2UH 2.5A 40 MOHM SMD Bourns Inc. |
1,559 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.5 A | 4.9A | Shielded | 40mOhm Max | 18 @ 7.96MHz | 75MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
SRR0603-471KLFIXED IND 470UH 150MA 6.7OHM SMD Bourns Inc. |
1,231 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 150 mA | 190mA | Shielded | 6.7Ohm Max | 17 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
|
SRR0805-121KFIXED IND 120UH 450MA 750MOHM SM Bourns Inc. |
955 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 450 mA | 660mA | Shielded | 750mOhm Max | 42 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
SRR0805-221KFIXED IND 220UH 300MA 1.18OHM SM Bourns Inc. |
913 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 300 mA | 550mA | Shielded | 1.18Ohm Max | 38 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
SRR1003-151MFIXED IND 150UH 320MA 1.8OHM SMD Bourns Inc. |
878 |
|
Datasheet |
SRR1003 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 320 mA | 800mA | Shielded | 1.8Ohm Max | 23 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.406" W (12.70mm x 10.30mm) | 0.118" (3.00mm) |
|
|
SRR0805-120MFIXED IND 12UH 1.4A 120 MOHM SMD Bourns Inc. |
700 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.4 A | 2.1A | Shielded | 120mOhm Max | 40 @ 2.52MHz | 24MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
