Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR4528A-6R8YFIXED IND 6.8UH 2.25A 58MOHM SMD Bourns Inc. |
1,018 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 2.25 A | 1.37A | Shielded | 58mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
SDR7045-151KFIXED IND 150UH 620MA 580MOHM SM Bourns Inc. |
1,000 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 620 mA | 580mA | Unshielded | 580mOhm Max | 17 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SRR4818A-1R5YFIXED IND 1.5UH 4.7A 35 MOHM SMD Bourns Inc. |
952 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.7 A | 3A | Shielded | 35mOhm Max | - | 105MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|

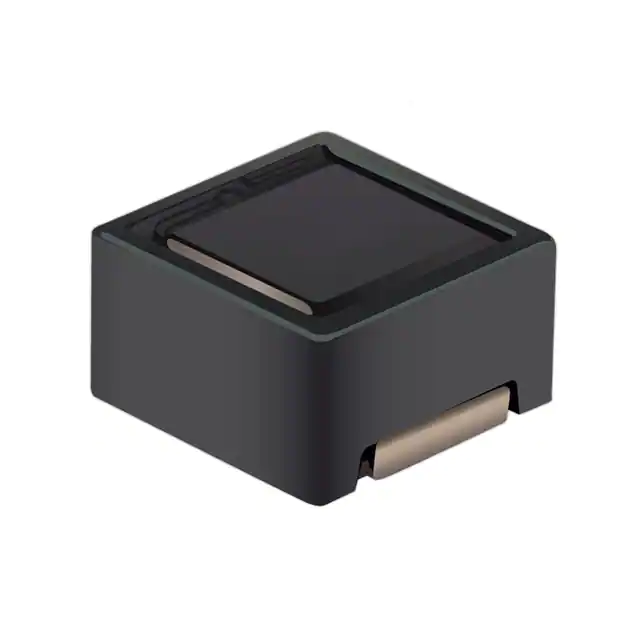

SRR4828A-150MFIXED IND 15UH 1.8A 145 MOHM SMD Bourns Inc. |
943 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 920mA | Shielded | 145mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4828A-8R2YFIXED IND 8.2UH 2.4A 87 MOHM SMD Bourns Inc. |
909 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 2.4 A | 1.25A | Shielded | 87mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SDR7045-220MFIXED IND 22UH 1.4A 125 MOHM SMD Bourns Inc. |
896 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.62A | Unshielded | 125mOhm Max | 26 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SRR4528A-101MFIXED IND 100UH 560MA 609MOHM SM Bourns Inc. |
855 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 560 mA | 340mA | Shielded | 609mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
|
SRR4528A-2R7YFIXED IND 2.7UH 3.4A 29MOHM SMD Bourns Inc. |
819 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±30% | 3.4 A | 2.1A | Shielded | 29mOhm Max | - | 68MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
|
SRR4828A-1R2YFIXED IND 1.2UH 5A 24 MOHM SMD Bourns Inc. |
557 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 5 A | 3A | Shielded | 24mOhm Max | - | 155MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
SRR3818A-680MFIXED IND 68UH 460MA 1.6 OHM SMD Bourns Inc. |
509 |
|
Datasheet |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 460 mA | 240mA | Shielded | 1.6Ohm Max | - | 13MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
