Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447231101FIXED IND 100UH 2.6A 90 MOHM TH Würth Elektronik |
323 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 100 µH | ±10% | 2.6 A | 3.1A | Unshielded | 90mOhm Max | - | 3.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.430" Dia (10.92mm) | 0.748" (19.00mm) |
|
744750230100FIXED IND 10UH 4.6A 23 MOHM TH Würth Elektronik |
320 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.6 A | 6.8A | Shielded | 23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 8010 | 0.346" Dia (8.80mm) | 0.433" (11.00mm) |
|
|
744750230047FIXED IND 4.7UH 6.5A 12.5MOHM TH Würth Elektronik |
133 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6.5 A | 9.6A | Shielded | 12.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 8010 | 0.346" Dia (8.80mm) | 0.433" (11.00mm) |
|

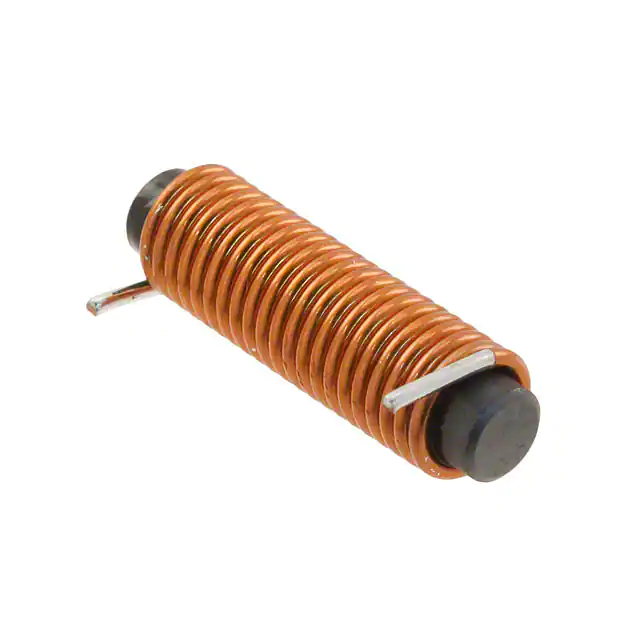

744711010FIXED IND 10UH 10A 8.8 MOHM TH Würth Elektronik |
1,607 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±25% | 10 A | - | Unshielded | 8.8mOhm | - | 43MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.339" Dia x 1.217" L (8.60mm x 30.90mm) | - |
|

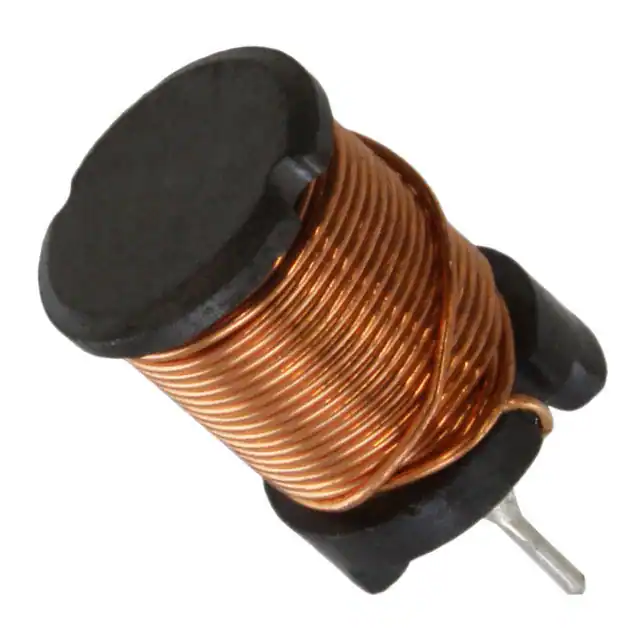

7447480331FIXED IND 330UH 1.4A 330 MOHM TH Würth Elektronik |
1,444 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.4 A | 1.6A | Unshielded | 330mOhm Max | - | 2.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|

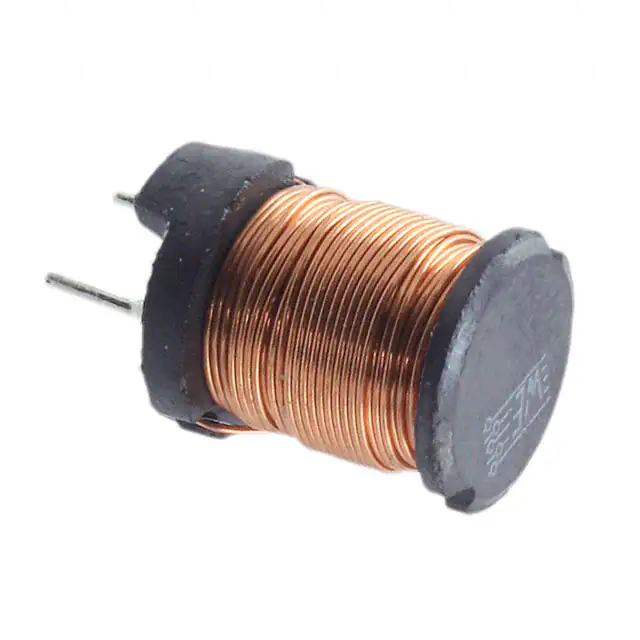

7447480102FIXED IND 1MH 800MA 1.15 OHM TH Würth Elektronik |
552 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 800 mA | 800mA | Unshielded | 1.15Ohm Max | - | 1.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|

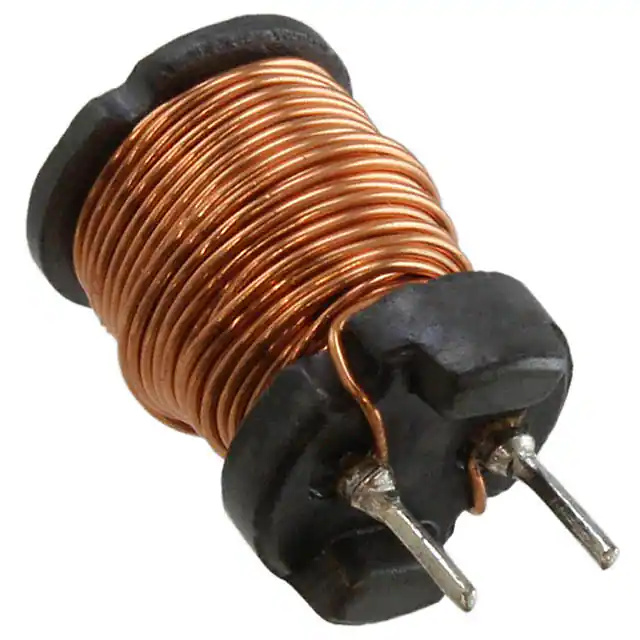

7447480471FIXED IND 470UH 1.15A 520MOHM TH Würth Elektronik |
483 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.15 A | 1.15A | Unshielded | 520mOhm Max | - | 1.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|

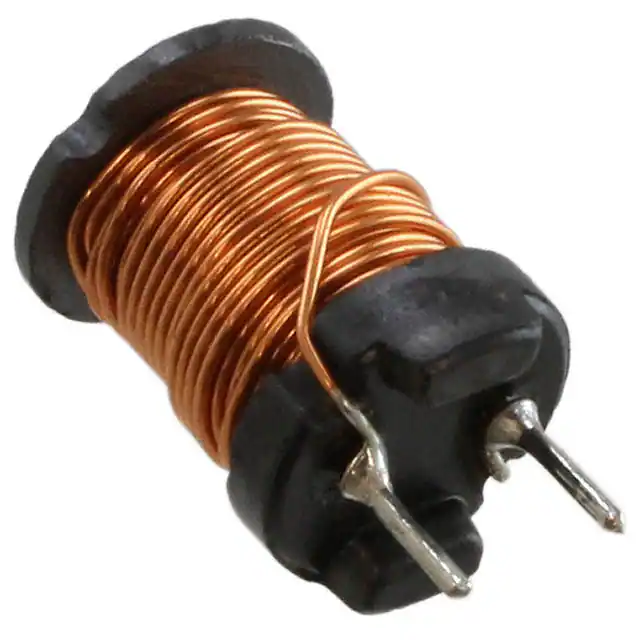

7447480221FIXED IND 220UH 1.6A 260 MOHM TH Würth Elektronik |
316 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.6 A | 1.75A | Unshielded | 260mOhm Max | - | 2.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
|
7447480681FIXED IND 680UH 900MA 790MOHM TH Würth Elektronik |
115 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 900 mA | 1A | Unshielded | 790mOhm Max | - | 1.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|

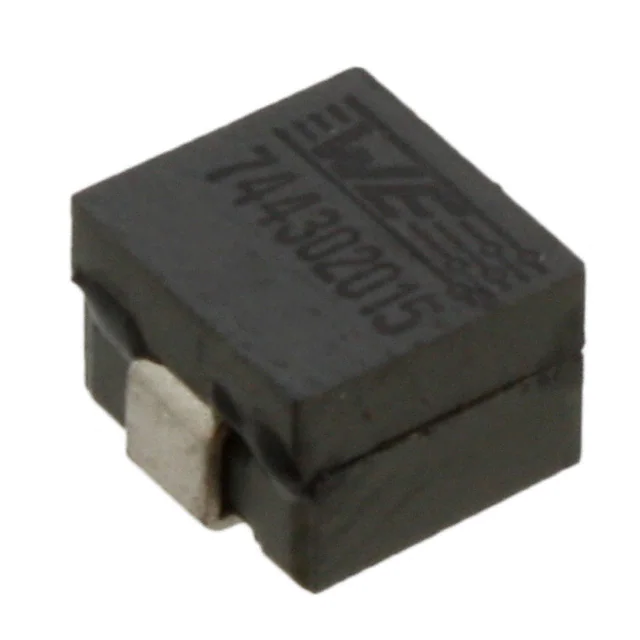

744302015FIXED IND 150NH 30A 0.000235OHM Würth Elektronik |
8,030 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 150 nH | ±20% | 30 A | 35A | Shielded | 0.235mOhm | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7050 | 0.281" L x 0.276" W (7.15mm x 7.00mm) | 0.197" (5.00mm) |
