Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

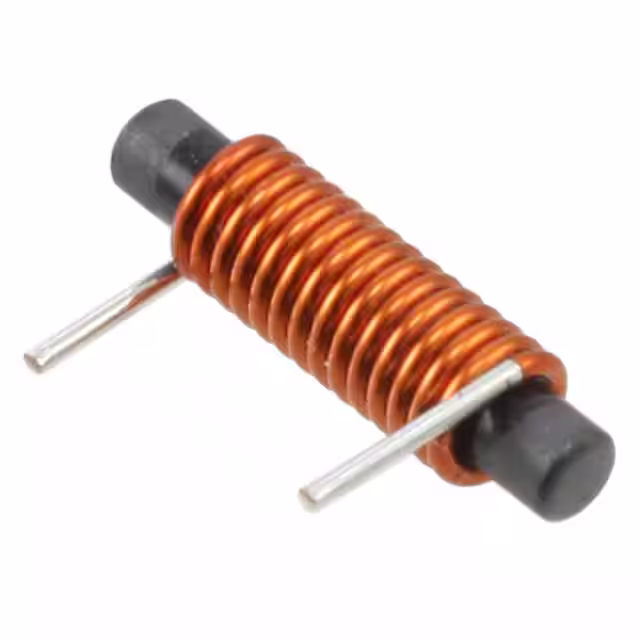

744710203FIXED IND 2UH 2.5A 11 MOHM TH Würth Elektronik |
959 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 2.5 A | - | Unshielded | 11mOhm | - | 110MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.126" Dia x 0.484" L (3.20mm x 12.30mm) | - |
|

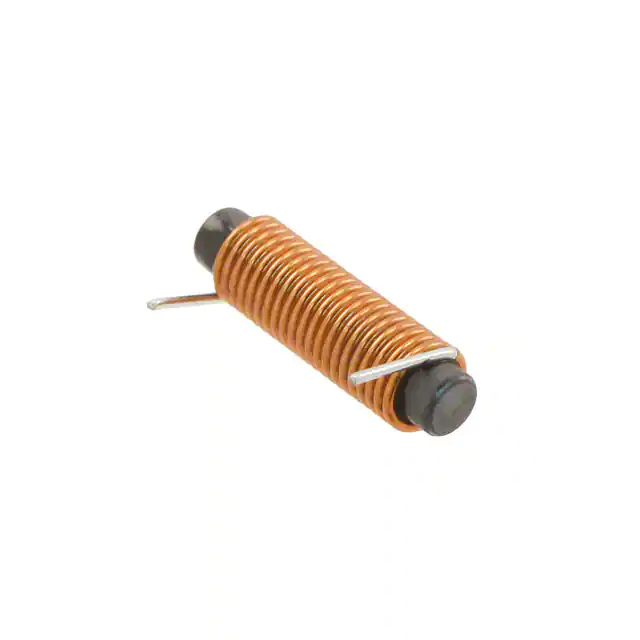

744710603FIXED IND 6UH 2.5A 22 MOHM TH Würth Elektronik |
359 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±25% | 2.5 A | - | Unshielded | 22mOhm | - | 65MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.165" Dia x 0.606" L (4.20mm x 15.40mm) | - |
|

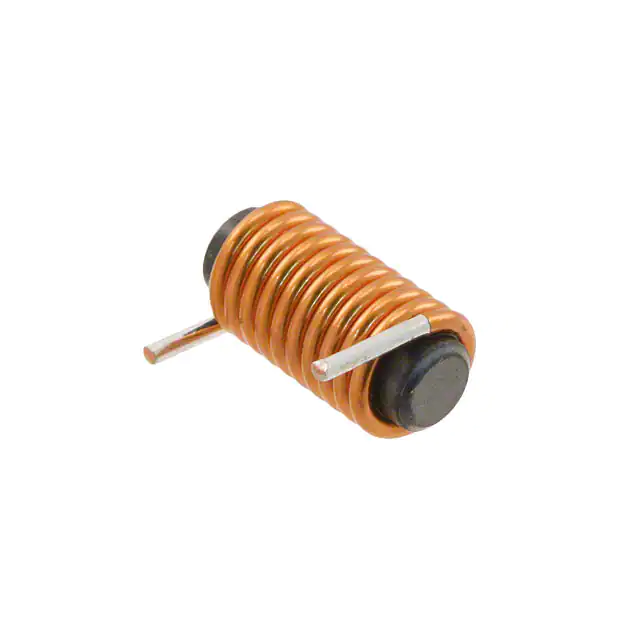

744710210FIXED IND 2UH 10A 3.8 MOHM TH Würth Elektronik |
155 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 10 A | - | Unshielded | 3.8mOhm | - | 100MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.299" Dia x 0.606" L (7.60mm x 15.40mm) | - |
|
74402500072FIXED IND 720NH 3A 27.5 MOHM SMD Würth Elektronik |
238 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 720 nH | ±25% | 3 A | 4A | Shielded | 27.5mOhm Max | - | 210MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|
74438366033FIXED IND 3.3UH 5A 38.4MOHM SMD Würth Elektronik |
3,230 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 5 A | 7A | Shielded | 38.4mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
|
74438366022FIXED IND 2.2UH 6A 27.3 OHM SMD Würth Elektronik |
2,070 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 6 A | 9A | Shielded | 27.3mOhm Max | - | 31.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
|
74438366010FIXED IND 1UH 7.8A 13.1MOHM SMD Würth Elektronik |
2,023 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 7.8 A | 10A | Shielded | 13.1mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
|
74438366047FIXED IND 4.7UH 4.1A 63MOHM SMD Würth Elektronik |
955 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 4.1 A | 5.5A | Shielded | 63mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
744750230030FIXED IND 3UH 7.6A 8.5 MOHM TH Würth Elektronik |
379 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±20% | 7.6 A | 11.7A | Shielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 8010 | 0.346" Dia (8.80mm) | 0.433" (11.00mm) |
|
|
744750230150FIXED IND 15UH 3.7A 35 MOHM TH Würth Elektronik |
329 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.7 A | 5.7A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 8010 | 0.346" Dia (8.80mm) | 0.433" (11.00mm) |
