Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHHP0805ZHERR47M01IHHP-0805ZH-01 .47 20% ER E3 Vishay Dale |
12,820 |
|
Datasheet |
IHHP-0805ZH-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 3.7 A | 4.3A | Shielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
IFSC1111ABER2R2M01FIXED IND 2.2UH 1.9A 98 MOHM SMD Vishay Dale |
13,335 |
|
Datasheet |
IFSC-1111AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.9 A | 1.7A | Shielded | 98mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.114" L x 0.114" W (2.90mm x 2.90mm) | 0.051" (1.30mm) |
|
IFSC1515AHERR56M01FIXED IND 560NH 5.4A 22 MOHM SMD Vishay Dale |
3,890 |
|
Datasheet |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 nH | ±20% | 5.4 A | 5.5A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|
IFSC1515AHER8R2M01FIXED IND 8.2UH 1.4A 132MOHM SMD Vishay Dale |
2,288 |
|
Datasheet |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 1.4 A | 1.4A | Shielded | 132mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|
IFSC1111ABER100M01FIXED IND 10UH 1A 336 MOHM SMD Vishay Dale |
7,183 |
|
Datasheet |
IFSC-1111AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1 A | 800mA | Shielded | 336mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.114" L x 0.114" W (2.90mm x 2.90mm) | 0.051" (1.30mm) |
|
IFSC0806AZER4R7M01FIXED IND 4.7UH 900MA 398MOHM SM Vishay Dale |
6,499 |
|
Datasheet |
IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 900 mA | 850mA | Shielded | 398mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
IFSC0806AZER220M01FIXED IND 22UH 300MA 2.84OHM SMD Vishay Dale |
4,221 |
|
Datasheet |
IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 300 mA | 430mA | Shielded | 2.84Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

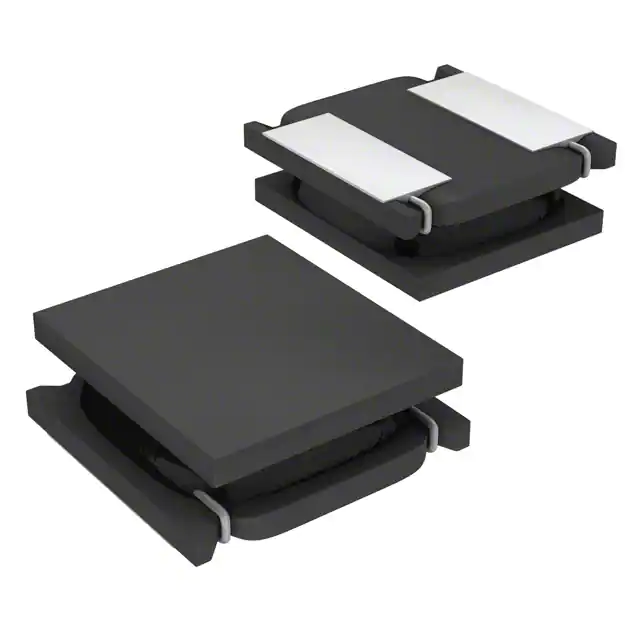

IFSC1111AZER150M01FIXED IND 15UH 650MA 570MOHM SMD Vishay Dale |
3,427 |
|
Datasheet |
IFSC-1111AZ | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 650 mA | 400mA | Shielded | 570mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
IFSC0806AZER2R2M01FIXED IND 2.2UH 1.3A 236MOHM SMD Vishay Dale |
3,320 |
|
Datasheet |
IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.3 A | 1.4A | Shielded | 236mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
IFSC1008ABERR47M01FIXED IND 470NH 3.35A 0.0285OHM Vishay Dale |
1,952 |
|
Datasheet |
IFSC-1008AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 3.35 A | 3.5A | Shielded | 28.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
