Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP6767GZER3R3M5AFIXED IND 3.3UH 32.2A 3.27 MOHM Vishay Dale |
398 |
|
Datasheet |
IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 32.2 A | 32A | Shielded | 3.27mOhm Max | - | 16.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHLP6767GZER150M8AFIXED IND 15UH 12.5A 16.96 MOHM Vishay Dale |
234 |
|
Datasheet |
IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 12.5 A | 13A | Shielded | 16.96mOhm Max | - | 8.55MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
.jpg)
|

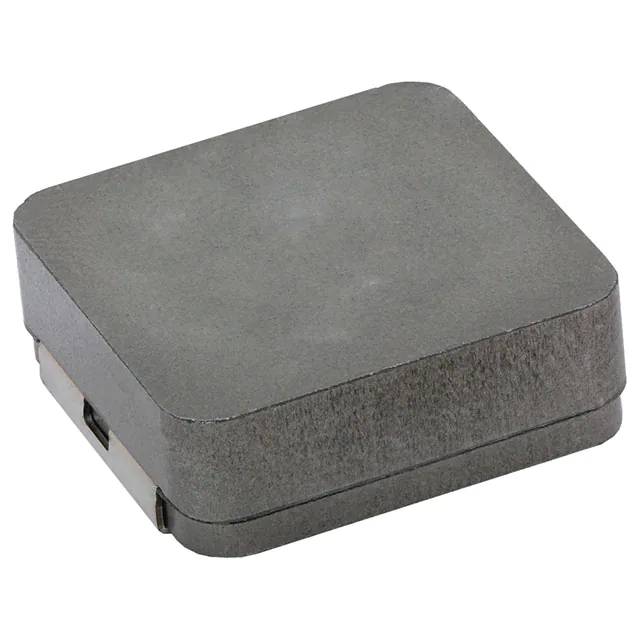

IHLP7575GZER1R0M51FIXED IND 1UH 55A 0.00134OHM SMD Vishay Dale |
118 |
|
Datasheet |
IHLP-7575GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 55 A | 81A | Shielded | 1.34mOhm Max | - | 31.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|

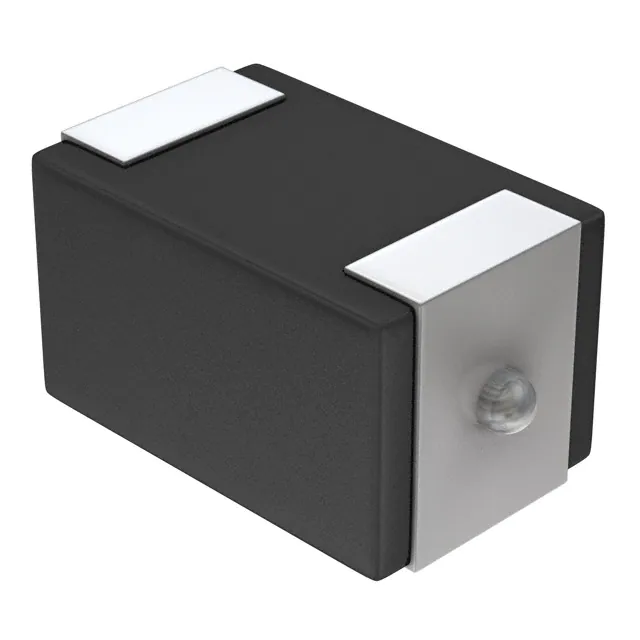

IHSM3825ER101LFIXED IND 100UH 480MA 1.44OHM SM Vishay Dale |
428 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 480 mA | 420mA | Unshielded | 1.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|

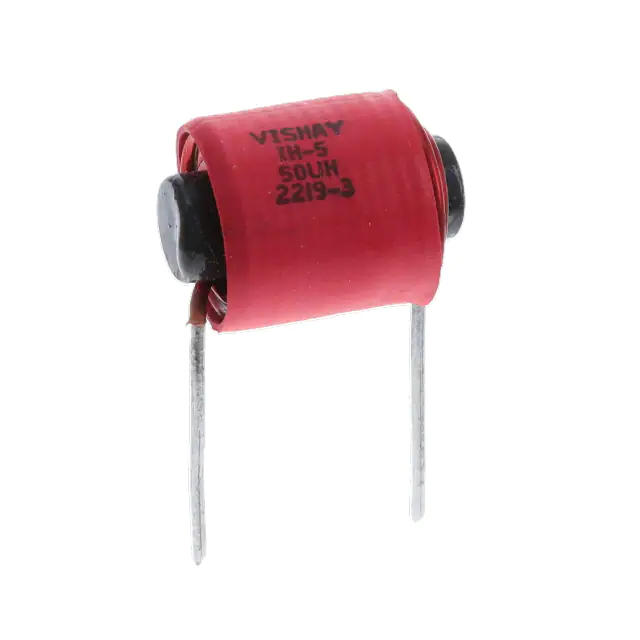

IH05BQ500KFIXED IND 50UH 8A 30 MOHM TH Vishay Dale |
429 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 8 A | 10A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.840" Dia x 1.125" L (21.34mm x 28.58mm) | - |
|
IHDF1300AEEH3R3K1AFIXED IND 3.3UH 59A 1.11MOHM TH Vishay Dale |
283 |
|
Datasheet |
IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 59 A | 112A | Unshielded | 1.11mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|

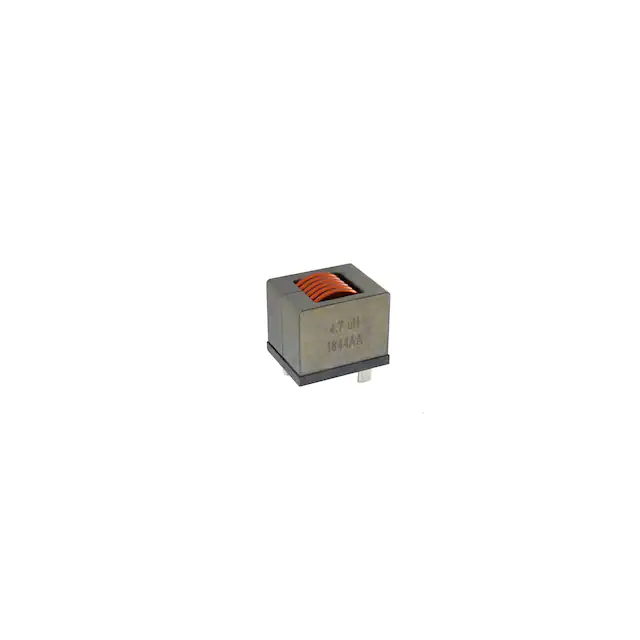

IHDM1008BCEV1R2M30FIXED IND 1.2UH 80A 0.3 MOHM TH Vishay Dale |
148 |
|
Datasheet |
IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 100 A | 205A | Unshielded | 0.3mOhm Max | - | 91MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
IHDM1107BBEVR47M20FG, IHDM-1107BB-20 .47 20% Vishay Dale |
684 |
|
Datasheet |
IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 128 A | 422A | Unshielded | 0.3mOhm Max | - | 217MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHLP8787MZERR47M5AFIXED IND 470NH 80A 0.67MOHM SMD Vishay Dale |
544 |
|
Datasheet |
IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 80 A | 100A | Shielded | 0.67mOhm Max | - | 47.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHTH1125KZEB2R2M5AFIXED IND 2.2UH 72A 0.77 MOHM TH Vishay Dale |
142 |
|
Datasheet |
IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 2.2 µH | ±20% | 72 A | 64A | Shielded | 0.77mOhm Max | - | 17.25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
