Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHXL1100OZEB3R3K3AINDUCT WW SNGL COIL MISC Vishay Dale |
112 |
|
Datasheet |
IHXL-1100OZ-3A | Radial | Tray | Active | Wirewound | - | 3.3 µH | ±10% | 76 A | 60A | Shielded | 0.77mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.591" (15.00mm) |
|
IFSC1008ABER2R2M01FIXED IND 2.2UH 1.8A 0.09OHM SMD Vishay Dale |
1,537 |
|
Datasheet |
IFSC-1008AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.8 A | 1.95A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
IHLP2525CZER1R0M01FIXED IND 1UH 11A 10 MOHM SMD Vishay Dale |
932 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP2020CZER100M1AIHLP-2020CZ-1A 10 20% ER E3 Vishay Dale |
1,000 |
|
Datasheet |
IHLP-2020CZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 2.75 A | 2.25A | Shielded | 131.9mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
IHXL1500VZEB3R3M5AFIXED IND 3.3UH 150A 0.42MOHM TH Vishay Dale |
97 |
|
Datasheet |
IHXL-1500VZ-5A | Nonstandard | Bulk | Active | - | - | 3.3 µH | ±20% | 150 A | - | Shielded | 0.42mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|

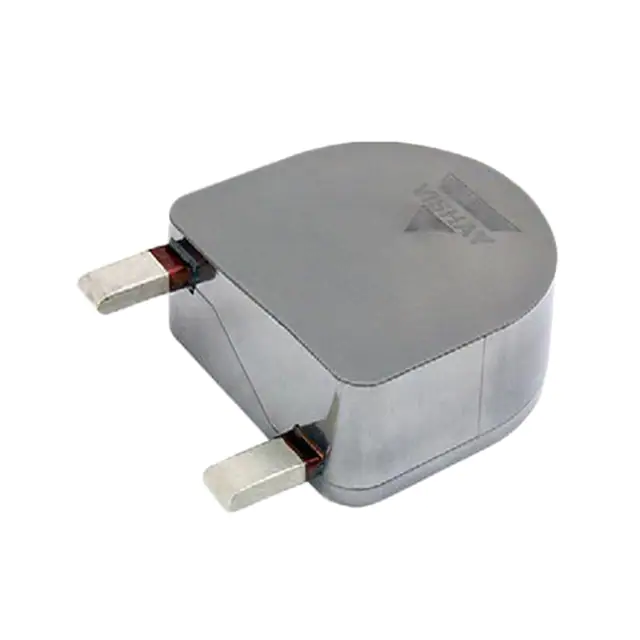

IHXL2000VZEB2R2M5AFIXED IND 2.2UH 187A 0.23MOHM TH Vishay Dale |
28 |
|
Datasheet |
IHXL-2000VZ-5A | Radial | Bulk | Active | - | Ferrite | 2.2 µH | ±20% | 187 A | 190A | Shielded | 0.23mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 2.000" L x 0.854" W (50.80mm x 21.70mm) | 2.010" (51.05mm) |
|
ILSB1206ER1R0KFIXED IND 1UH 100MA 400 MOHM SMD Vishay Dale |
307 |
|
Datasheet |
ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±10% | 100 mA | - | Shielded | 400mOhm Max | 45 @ 10MHz | 87MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
IHHP0805ZHER1R0M01IHHP-0805ZH-01 1 20% ER E3 Vishay Dale |
361 |
|
Datasheet |
IHHP-0805ZH-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 3.2 A | 3.3A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
IFSC1008ABER6R8M01FIXED IND 6.8UH 900MA 0.37OHM SM Vishay Dale |
90 |
|
Datasheet |
IFSC-1008AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 900 mA | 1.04A | Shielded | 370mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
ISC1812ES100KFIXED IND 10UH 279MA 900MOHM SMD Vishay Dale |
382 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±10% | 279 mA | - | Shielded | 900mOhm Max | 50 @ 2.52MHz | 25MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
