Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP6767GZER5R6M1AINDUCT WW SNGL COIL MISC Vishay Dale |
200 |
|
Datasheet |
IHLP-6767GZ-1A | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 28 A | 21A | Shielded | 4.44mOhm Max | - | 11.8MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER180M01INDUCT WW SNGL COIL MISC Vishay Dale |
200 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP6767GZER8R2M8AFIXED IND 8.2UH 17.5A 9.23 MOHM Vishay Dale |
200 |
|
Datasheet |
IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 17.5 A | 14.5A | Shielded | 9.23mOhm Max | - | 9.4MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLW6767FIER330M8AINDUCT WW SNGL COIL MISC Vishay Dale |
200 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IHLD3232HBER150M5AFIXED IND 15UH 4.2A 66.34MOHM SM Vishay Dale |
144 |
|
Datasheet |
IHLD-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 4.2 A | 3.5A | Shielded | 66.34mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.384" L x 0.379" W (9.75mm x 9.63mm) | 0.365" (9.27mm) |
|
IHLP6767DZER5R6M11FIXED IND 5.6UH 15A 12.2MOHM SMD Vishay Dale |
240 |
|
Datasheet |
IHLP-6767DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 15 A | 11.5A | Shielded | 12.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|

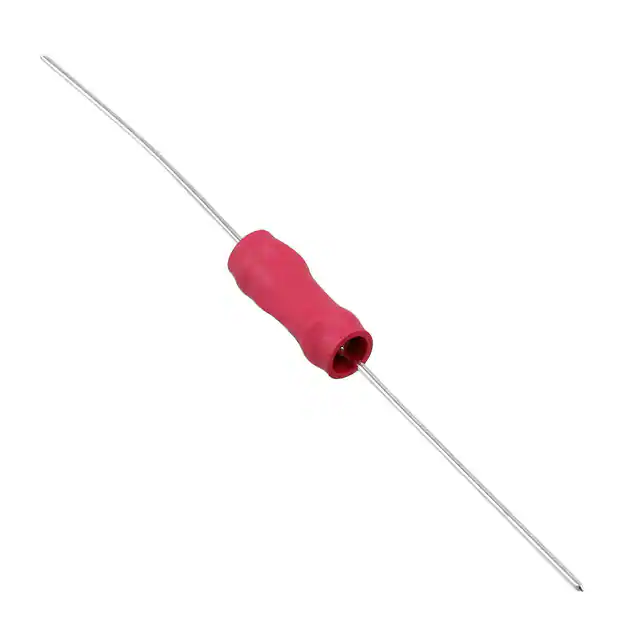

IHD1ER220LFIXED IND 22UH 2.2A 50 MOHM TH Vishay Dale |
1,520 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 2.2 A | 1.5A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1ER1R0LFIXED IND 1UH 5.3A 9 MOHM TH Vishay Dale |
760 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±15% | 5.3 A | 7A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1ER560LFIXED IND 56UH 1.4A 130 MOHM TH Vishay Dale |
800 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±15% | 1.4 A | 970mA | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
IHDM1008BCEV2R2M20HIGH CURRENT THROUGH-HOLE INDUCT Vishay Dale |
406 |
|
Datasheet |
IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 63 A | 204A | Unshielded | 0.7mOhm Max | - | 69MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
