Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0630CDMCCDS-2R2MCFIXED IND 2.2UH 9.3A 15MOHM SMD |
43,824 |
|
Datasheet |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 9.3 A | 12.3A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
CDRH4D28NP-100NCFIXED IND 10UH 1A 128.3 MOHM SMD |
37,708 |
|
Datasheet |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1 A | - | Shielded | 128.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
CDRH6D38NP-100NCFIXED IND 10UH 2A 38 MOHM SMD |
23,512 |
|
Datasheet |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 2 A | - | Shielded | 38mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
0630CDMCCDS-3R3MCFIXED IND 3.3UH 8.4A 22MOHM SMD |
20,180 |
|
Datasheet |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 8.4 A | 11.4A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
CLF5030NIT-220M-DFIXED IND 22UH 1.1A 240MOHM SMD |
16,914 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.1 A | 1.1A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
CLF7045NIT-470M-DFIXED IND 47UH 1.26A 160MOHM SMD |
12,896 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.26 A | 1.26A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
B82432C1104K000FIXED IND 100UH 145MA 4.7OHM SMD |
6,485 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 145 mA | - | Unshielded | 4.7Ohm Max | 30 @ 796kHz | 8MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

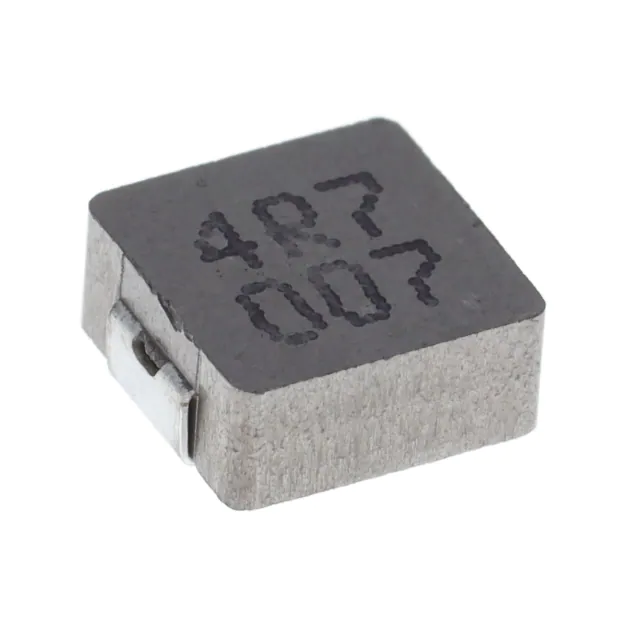

0630CDMCCDS-4R7MCFIXED IND 4.7UH 6.3A 33MOHM SMD |
5,577 |
|
Datasheet |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 6.3 A | 6.8A | Shielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
B82432C1102K000FIXED IND 1UH 600MA 280 MOHM SMD |
4,914 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 600 mA | - | Unshielded | 280mOhm Max | 40 @ 7.96MHz | 200MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
PA4342.682NLTFIXED IND 6.8UH 8.5A 23.3MOHM SM |
19,368 |
|
Datasheet |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 8.5 A | 13.5A | Shielded | 23.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
ASPI-0630LR-220M-T15FIXED IND 22UH 2.5A 167 MOHM SMD |
9,725 |
|
Datasheet |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 22 µH | ±20% | 2.5 A | 2.5A | Shielded | 167mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|

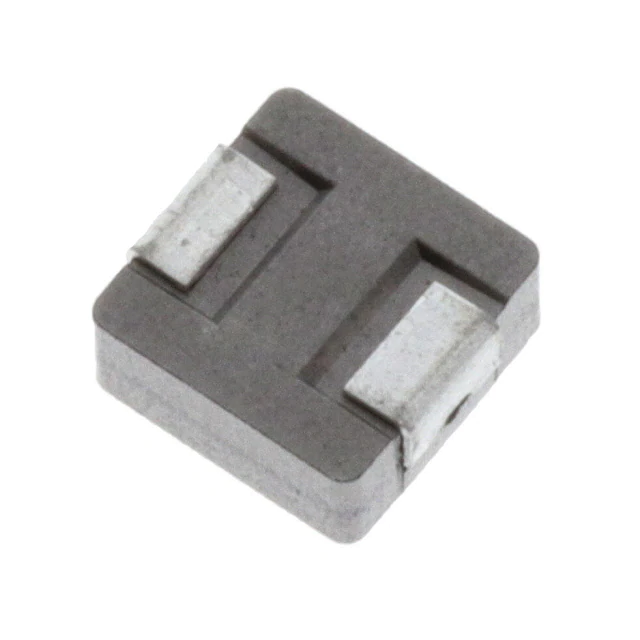

0630CDMCCDS-100MCFIXED IND 10UH 4A 67 MOHM SMD |
5,708 |
|
Datasheet |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 4 A | 5.5A | Shielded | 67mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
TFM322512ALMA4R7MTAAFIXED IND 4.7UH 1.9A 151MOHM SMD |
3,794 |
|
Datasheet |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 4.7 µH | ±20% | 1.9 A | 2.2A | Shielded | 151mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

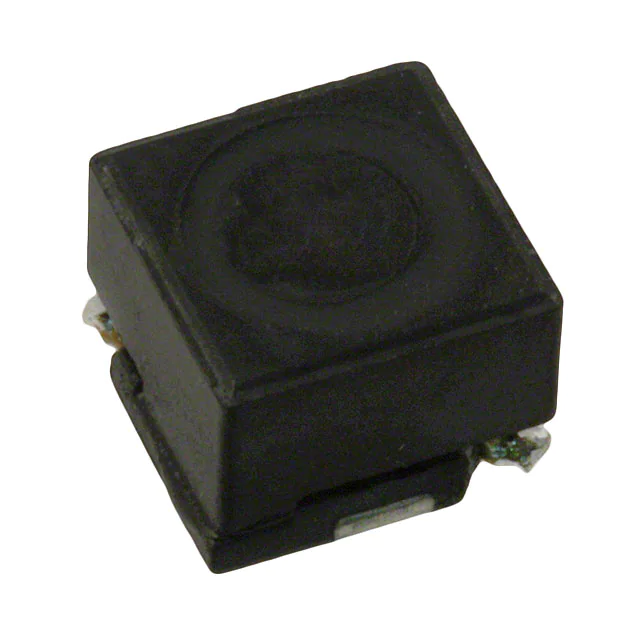

SRR0604-220MLFIXED IND 22UH 900MA 190MOHM SMD |
9,595 |
|
Datasheet |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 900 mA | 1.2A | Shielded | 190mOhm Max | 16 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
B82432C1105J000FIXED IND 1MH 55MA 32 OHM SMD |
9,309 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 55 mA | - | Unshielded | 32Ohm Max | 30 @ 796kHz | 2.8MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SPM6530T-1R5M100FIXED IND 1.5UH 11A 10.67MOHM SM |
4,332 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 11 A | 11.5A | Shielded | 10.67mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
SLF6028T-470MR59-PFFIXED IND 47UH 920MA 252MOHM SMD |
2,915 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 920 mA | 590mA | Shielded | 252mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
TFM322512ALMAR22MTAAINDUCTORS FOR POWER CIRCUITS, AU |
1,855 |
|
Datasheet |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 220 nH | ±20% | 7 A | 10A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
NS10165T220MNAFIXED IND 22UH 3.41A 37.2MOHM SM |
23,590 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.41 A | 3.6A | Shielded | 37.2mOhm Max | - | 10.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
.jpg)
|
DFE322520FD-1R0M=P2FIXED IND 1UH 4.1A 22 MOHM SMD |
12,392 |
|
Datasheet |
DFE322520FD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.1 A | 7.5A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
