Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH6D28NP-150NCFIXED IND 15UH 1.4A 84 MOHM SMD |
14,274 |
|
Datasheet |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 1.4 A | - | Shielded | 84mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
DR74-470-RFIXED IND 47UH 1.15A 216MOHM SMD |
5,811 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.15 A | 1.41A | Shielded | 216mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
TFM322512ALMA100MTAAFIXED IND 10UH 1.2A 360 MOHM SMD |
2,321 |
|
Datasheet |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 10 µH | ±20% | 1.2 A | 1.6A | Shielded | 360mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

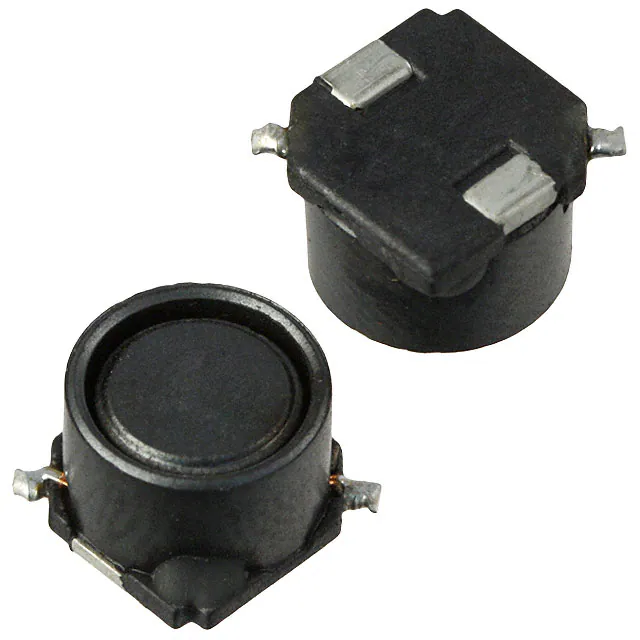

SRR7045-102MFIXED IND 1MH 250MA 2.4 OHM SMD |
120,064 |
|
Datasheet |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 330 mA | 160mA | Shielded | 2.4Ohm Max | 90 @ 252kHz | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
ASPI-8040S-101M-TFIXED IND 100UH 1A 290 MOHM SMD |
82,648 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1.15A | Shielded | 290mOhm | - | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

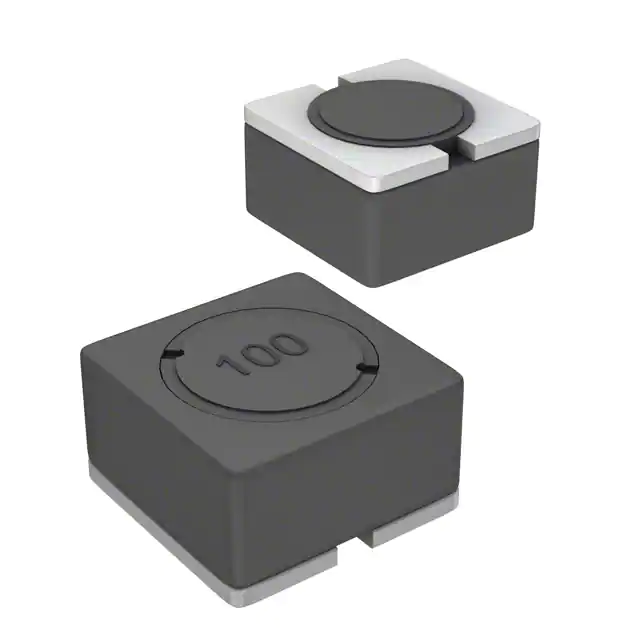

SRR6038-100YFIXED IND 10UH 2A 38 MOHM SMD |
64,690 |
|
Datasheet |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2 A | 2.05A | Shielded | 38mOhm Max | 8.8 @ 2.52MHz | 24.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
SRR7032-471MFIXED IND 470UH 200MA 2.4OHM SMD |
23,709 |
|
Datasheet |
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 200 mA | 200mA | Shielded | 2.4Ohm Max | 34 @ 796kHz | 5.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
CDRH6D28NP-101NCFIXED IND 100UH 540MA 535MOHM SM |
3,810 |
|
Datasheet |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±30% | 540 mA | - | Shielded | 535mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
SRR7045-151MFIXED IND 150UH 530MA 480MOHM SM |
2,474 |
|
Datasheet |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 800 mA | 500mA | Shielded | 480mOhm Max | 51 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SRR7045-101MFIXED IND 100UH 650MA 300MOHM SM |
1,453 |
|
Datasheet |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 600mA | Shielded | 300mOhm Max | 40 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SRR4018-100YFIXED IND 10UH 1.3A 150 MOHM SMD |
43,686 |
|
Datasheet |
SRR4018 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1.3 A | 1A | Shielded | 150mOhm Max | 10 @ 2.52MHz | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|

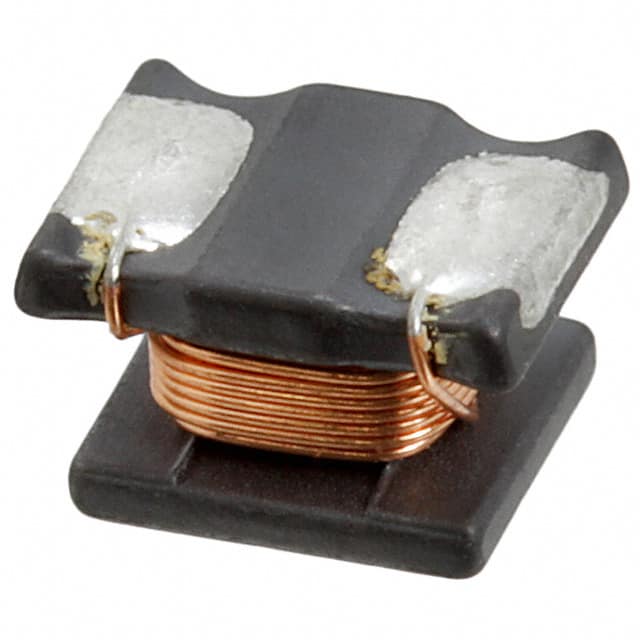

744045220FIXED IND 22UH 630MA 700MOHM SMD |
6,163 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 630 mA | 1A | Unshielded | 700mOhm Max | 50 @ 1MHz | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

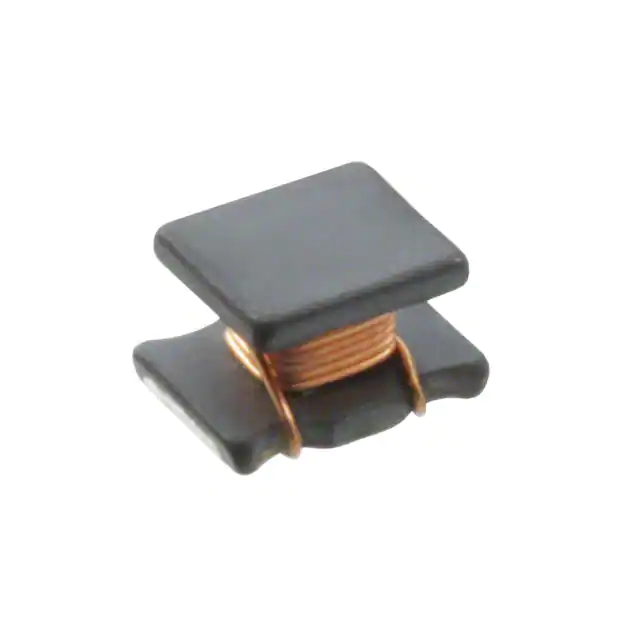

744045100FIXED IND 10UH 950MA 300MOHM SMD |
5,382 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 950 mA | 1.5A | Unshielded | 300mOhm Max | 48 @ 1MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

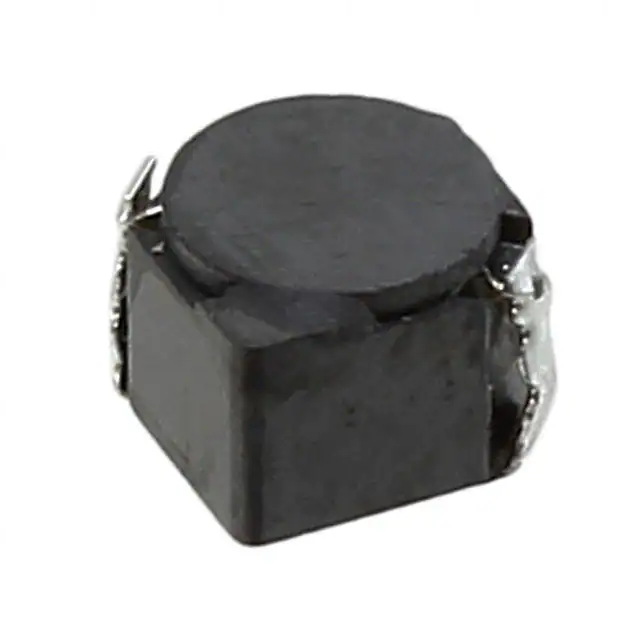

CDRH3D28NP-150NCFIXED IND 15UH 1.02A 213MOHM SMD |
144,068 |
|
Datasheet |
CDRH3D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 1.02 A | 900mA | Shielded | 213mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|

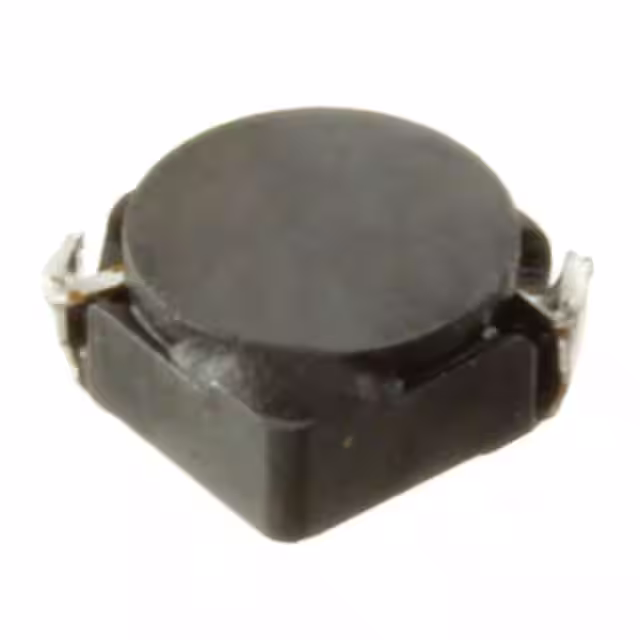

CDRH3D16/HPNP-4R7NCFIXED IND 4.7UH 1.5A 116MOHM SMD |
88,017 |
|
Datasheet |
CDRH3D16/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.5 A | 1.2A | Shielded | 116mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
SRU5028-3R3YFIXED IND 3.3UH 2.8A 24 MOHM SMD |
12,286 |
|
Datasheet |
SRU5028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.8 A | 2.1A | Shielded | 24mOhm | 10 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
DR74-100-RFIXED IND 10UH 2.41A 48.9MOHM SM |
10,770 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.41 A | 3.17A | Shielded | 48.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
|
SRU5028-100YFIXED IND 10UH 1.8A 63 MOHM SMD |
5,061 |
|
Datasheet |
SRU5028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1.8 A | 1.4A | Shielded | 63mOhm | 18 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|

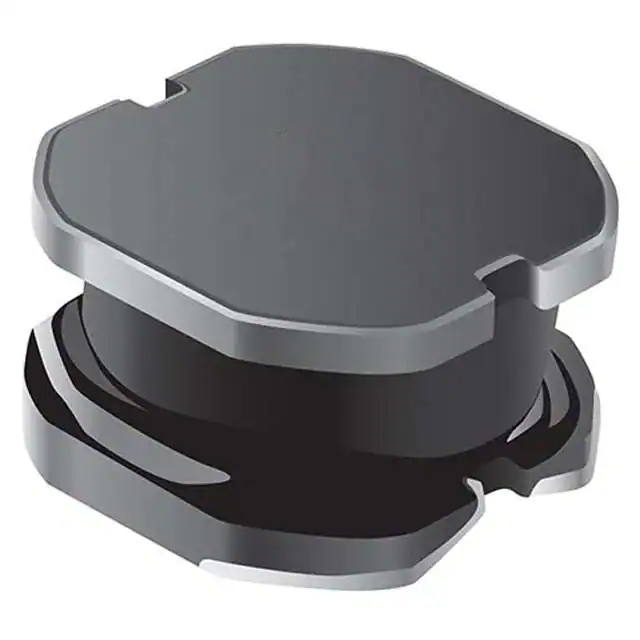

SRN1060-101MFIXED IND 100UH 1.7A 210MOHM SMD |
80,759 |
|
Datasheet |
SRN1060 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.7 A | 1.7A | Shielded | 210mOhm Max | 13 @ 2.52MHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.236" (6.00mm) |
|

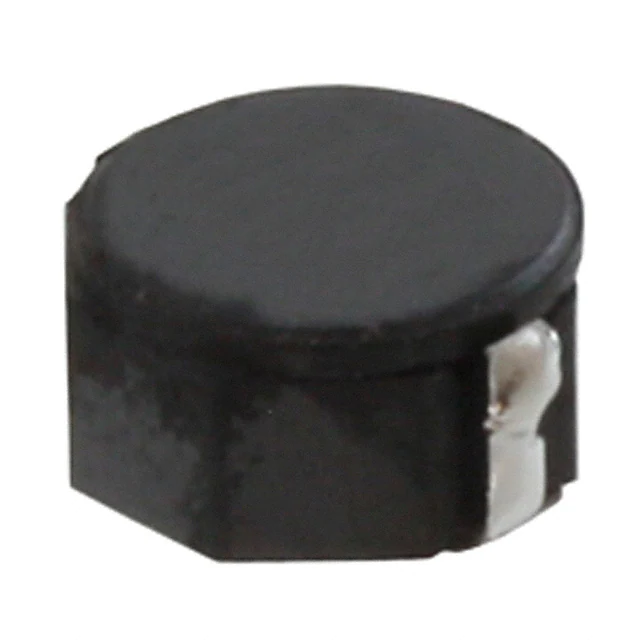

CDRH8D43NP-220NCFIXED IND 22UH 1.8A 75 MOHM SMD |
46,227 |
|
Datasheet |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 1.8 A | 2.6A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
