Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPFC-RM14-200PWR FACTOR COR RM14 PCB 200W |
630 |
|
Datasheet |
SPFC | Radial, Vertical, 16 Leads | Tray | Active | Wirewound | - | 225 µH | ±10% | 2.4 A | 12.4A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 16 Leads | 1.693" L x 1.890" W (43.00mm x 48.00mm) | 1.260" (32.00mm) |
|
|
050AT5002SMLFWIREWOUND TOROIDAL INDUCTOR |
156 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 50 µH | ±10% | 3.93 A | 3.1A | Shielded | 35mOhm Max | - | 7MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.405" (10.28mm) |
|
S1812R-123GFIXED IND 12UH 315MA 2 OHM SMD |
490 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±2% | 315 mA | - | Shielded | 2Ohm Max | 50 @ 2.5MHz | 22MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
CPL2-4-50TR-RFIXED IND 50NH 80A 0.28 MOHM SMD |
500 |
|
Datasheet |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.417" L x 0.394" W (36.00mm x 10.00mm) | 0.189" (4.80mm) |
|
PFC3125ER-301K05B-00CHOKE COMMON MODE |
347 |
|
Datasheet |
PFC | Radial, Horizontal, 6 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 200 µH | ±10% | 4.9 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.299" L x 1.024" W (33.00mm x 26.00mm) | 1.063" (27.00mm) |
|
|
050AT2502SMWIREWOUND TOROIDAL INDUCTOR |
176 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 5.2 A | 5.3A | Shielded | 20mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.402" (10.20mm) |
|
|
RL-1256-4-820FIXED IND 820UH 7.2A 154MOHM TH |
249 |
|
Datasheet |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 820 µH | ±10% | 7.2 A | 6.8A | Unshielded | 154mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 1.600" Dia (40.64mm) | 1.100" (27.94mm) |
|
|
RL-1256-4-120FIXED IND 120UH 14.4A 28MOHM TH |
134 |
|
Datasheet |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 120 µH | ±10% | 14.4 A | 18A | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 1.600" Dia (40.64mm) | 1.100" (27.94mm) |
|
|
MLRF24M105JMIL MOLDED AXIAL RF COIL |
994 |
|
Datasheet |
MLRF24M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 mH | ±5% | 47 mA | - | Unshielded | 72Ohm Max | 80 @ 250kHz | 950MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|

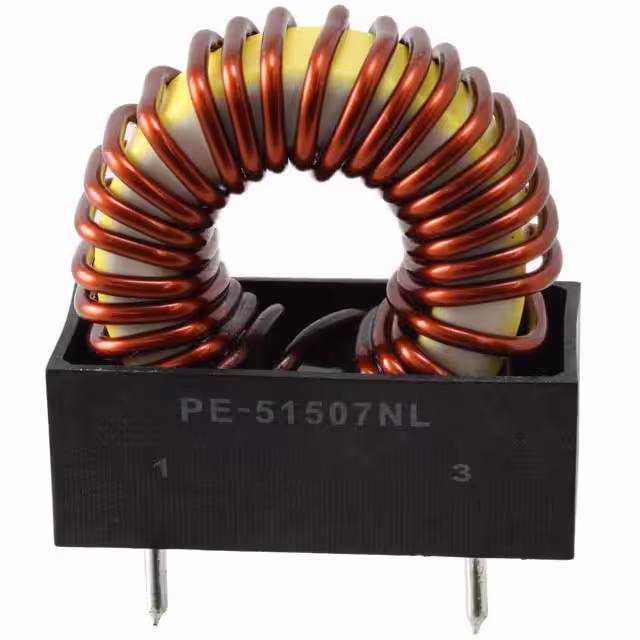

PE-51507NLFIXED IND 32UH 16A 9.2 MOHM TH |
139 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tube | Active | Toroidal | - | 32 µH | - | 16 A | - | Unshielded | 9.2mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.950" L x 0.910" W (49.53mm x 23.11mm) | 2.000" (50.80mm) |
|
|
RL-1256-5-22FIXED IND 22UH 27A 7MOHM TH |
250 |
|
Datasheet |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 22 µH | ±10% | 27 A | 42A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 1.600" Dia (40.64mm) | 1.500" (38.10mm) |
|
|
RL-1256-5-56FIXED IND 56UH 21A 13MOHM TH |
184 |
|
Datasheet |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 56 µH | ±10% | 21 A | 26A | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 1.600" Dia (40.64mm) | 1.500" (38.10mm) |
|
|
040AT1503SMLFWIREWOUND TOROIDAL INDUCTOR |
288 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 150 µH | ±10% | 1.45 A | 1.4A | Shielded | 190mOhm Max | - | 3.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.565" L x 0.560" W (14.35mm x 14.22mm) | 0.360" (9.14mm) |
|
|
ER17S222KPM39010 LEV-R AXIAL INDUCTOR |
2,495 |
|
Datasheet |
ER17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 22 µH | ±10% | 290 mA | - | Shielded | 960mOhm Max | 45 @ 2.5MHz | 41MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER10M103JPM39010 LEV-R AXIAL INDUCTOR |
3,498 |
|
Datasheet |
ER10M | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±5% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.42mm x 6.35mm) | - |
|
|
SMP5022-103MMOLDED UNSHIELDED INDUCTOR |
350 |
|
Datasheet |
SMP5022 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±20% | 1.8 A | 3.6A | Unshielded | 190mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.280" (7.11mm) |
|
|
RL-1256-5-470FIXED IND 470UH 11.4A 78MOHM TH |
248 |
|
Datasheet |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 470 µH | ±10% | 11.4 A | 8.8A | Unshielded | 78mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 1.600" Dia (40.64mm) | 1.500" (38.10mm) |
|
|
RL-1256-5-2200FIXED IND 2200UH 5.5A 338MOHM TH |
238 |
|
Datasheet |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 2.2 mH | ±10% | 5.5 A | 4.1A | Unshielded | 338mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 1.600" Dia (40.64mm) | 1.500" (38.10mm) |
|
|
RL-1256-5-8200FIXED IND 8200UH 2.8A 1260MOHM T |
229 |
|
Datasheet |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 8.2 mH | ±10% | 2.8 A | 2.1A | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 1.600" Dia (40.64mm) | 1.500" (38.10mm) |
|
PFC4124QM-151K11D-00CHOKE COIL, 150UH |
4,014 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 11.1 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.693" L x 1.496" W (43.00mm x 38.00mm) | 0.984" (25.00mm) |
