Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLBU6565100T-R07LTIND,70NH,110A,0.17M,-40~+125C |
760 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 70 nH | ±15% | 70 A | 110A | Unshielded | 0.187mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
|
VLBU6565100T-R12LTIND,120NH,69A,0.17M,-40~+125C |
730 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 nH | ±15% | 70 A | 69A | Unshielded | 0.187mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
|
VLBU6565100T-R15LTIND,150NH,52A,0.17M,-40~+125C |
700 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±15% | 70 A | 52A | Unshielded | 0.187mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
|
VLBU6565100T-R22LTIND,220NH,33A,0.17M,-40~+125C |
530 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 nH | ±15% | 70 A | 33A | Unshielded | 0.187mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
|
VLBU6565100T-R10LTIND,100NH,80A,0.17M,-40~+125C |
329 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 nH | ±15% | 70 A | 80A | Unshielded | 0.187mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
|
PG0434.801NLFIXED IND 800NH 35A 1.3 MOHM SMD |
830 |
|
Datasheet |
PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 800 nH | ±20% | 35 A | 38A | Shielded | 1.3mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
UP0.4C-101-RFIXED IND 100UH 370MA 1.58OHM SM |
2,180 |
|
Datasheet |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 370 mA | 350mA | Unshielded | 1.58Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
83232CFIXED IND 2.3UH 1.4A 86 MOHM SMD |
1,817 |
|
Datasheet |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.3 µH | ±20% | 1.4 A | 2.35A | Unshielded | 86mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
|
PA2242.281NLTIND PWR MOLDED 0.28UH 35A |
990 |
|
Datasheet |
PA2242.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 280 nH | ±20% | 35 A | 58A | Unshielded | 1.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
|
IHLP5050EZERR10M01FIXED IND 100NH 55A 0.6 MOHM SMD |
197 |
|
Datasheet |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 55 A | 118A | Shielded | 0.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
|
7443734648068HIGH TEMPERATURE SMT POWER INDUC |
2,000 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 5.6 A | 7.6A | Shielded | 48mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
7443734648015HIGH TEMPERATURE SMT POWER INDUC |
2,000 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 12 A | 17A | Shielded | 12.1mOhm Max | - | 44MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
7443734648033HIGH TEMPERATURE SMT POWER INDUC |
2,000 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 8.7 A | 10.8A | Shielded | 22mOhm Max | - | 28MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
7443734648022HIGH TEMPERATURE SMT POWER INDUC |
2,000 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 10.5 A | 14.7A | Shielded | 17mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
7443734648100HIGH TEMPERATURE SMT POWER INDUC |
1,995 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 4.3 A | 6A | Shielded | 78mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
7443734648010HIGH TEMPERATURE SMT POWER INDUC |
1,994 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 13.5 A | 18.5A | Shielded | 7.4mOhm Max | - | 53MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
7443734648047HIGH TEMPERATURE SMT POWER INDUC |
1,981 |
|
Datasheet |
WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 7 A | 9.8A | Shielded | 40mOhm Max | - | 24MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|

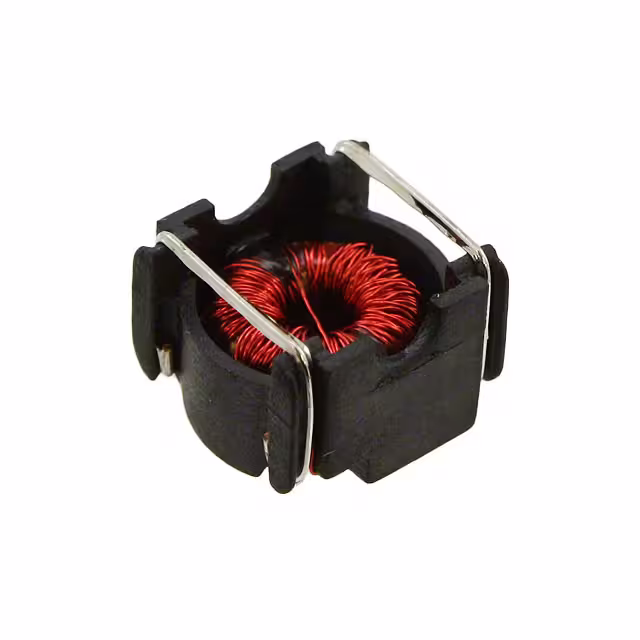

PE-53809SNLFIXED IND 256UH 250MA 2.2OHM SMD |
575 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 256 µH | ±20% | 250 mA | - | Shielded | 2.2Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
CMLB135T-R82MSIND SMD 0.82UH MOLDING CHOKE |
500 |
|
Datasheet |
CMLB135T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 820 nH | ±20% | 30.2 A | 39A | Unshielded | 1.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
CMLS135T-R47MSIND SMD 0.47UH MOLDING CHOKE |
500 |
|
Datasheet |
CMLS135T | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 34 A | 65A | Unshielded | 1.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
