Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2241.472NLTIND PWR MOLDED 4.7UH 14.6A |
422 |
|
Datasheet |
PA2241.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 14.6 A | 17A | Unshielded | 9.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.335" W (8.90mm x 8.50mm) | 0.315" (8.00mm) |
|
SP1210R-472KFIXED IND 4.7UH 633MA 520MOHM SM |
500 |
|
Datasheet |
SP1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 633 mA | 601mA | Shielded | 520mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
SPM6550T-1R0M-HZRIND,1.0UH,15.9A,5.05M,-40~125 |
998 |
|
Datasheet |
SPM-HZR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 14.9 A | 15.9A | Shielded | 5.05mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.197" (5.00mm) |
|
P1171.273NLTFIXED IND 27UH 2.7A 51 MOHM SMD |
995 |
|
Datasheet |
P1171NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 2.7 A | 2.7A | Shielded | 51mOhm Max | - | 12MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
|
P1170.683NLTFIXED IND 68UH 1.8A 120 MOHM SMD |
982 |
|
Datasheet |
P1170NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.8 A | 1.8A | Shielded | 120mOhm Max | - | 6.9MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
|
P1170.302NLTFIXED IND 3UH 8.3A 7.7 MOHM SMD |
964 |
|
Datasheet |
P1170NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3 µH | ±30% | 8.3 A | 8.3A | Shielded | 7.7mOhm Max | - | 38MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
P1252.332NLTFIXED IND 3.3UH 10A 8.6 MOHM SMD |
862 |
|
Datasheet |
P1252NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 10 A | 17A | Unshielded | 8.6mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.879" L x 0.596" W (22.33mm x 15.14mm) | 0.295" (7.49mm) |
|
|
P1252.103NLTFIXED IND 10UH 6A 26 MOHM SMD |
475 |
|
Datasheet |
P1252NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 6 A | 10A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.879" L x 0.596" W (22.33mm x 15.14mm) | 0.295" (7.49mm) |
|
PG0255.222NLFIXED IND 2.2UH 13A 7 MOHM SMD |
1,670 |
|
Datasheet |
PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±15% | 13 A | 20A | Shielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.406" W (10.80mm x 10.30mm) | 0.157" (4.00mm) |
|
|
ADM45FDC-100MPOC INDUCTOR, 10 UH, EIA 1812 |
4,008 |
|
Datasheet |
ADM45FDC | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | Metal | 10 µH | ±20% | 900 mA | 1.8A | Shielded | 260mOhm Max | - | 40MHz | AEC-Q200 | 150°C | 100 kHz | - | Surface Mount | 4-SMD | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.118" (3.00mm) |
|
9230-58-RCFIXED IND 39UH 180MA 3.6 OHM TH |
1,000 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 39 µH | ±10% | 180 mA | - | Unshielded | 3.6Ohm Max | 45 @ 2.5MHz | 22MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-74-RCFIXED IND 180UH 79MA 17 OHM TH |
1,000 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 180 µH | ±10% | 79 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
7443340030FIXED IND 300NH 20.5A 2.7MOHM SM |
687 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±20% | 20.5 A | 36A | Shielded | 2.7mOhm Max | - | 272MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
VCUW075D-101MS6IND SMD 100.0UH AUTO GRADE CHOKE |
450 |
|
Datasheet |
VCUW075D | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 µH | ±20% | 1.8 A | 2.2A | Unshielded | 348mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.283" W (7.70mm x 7.20mm) | 0.213" (5.40mm) |
|

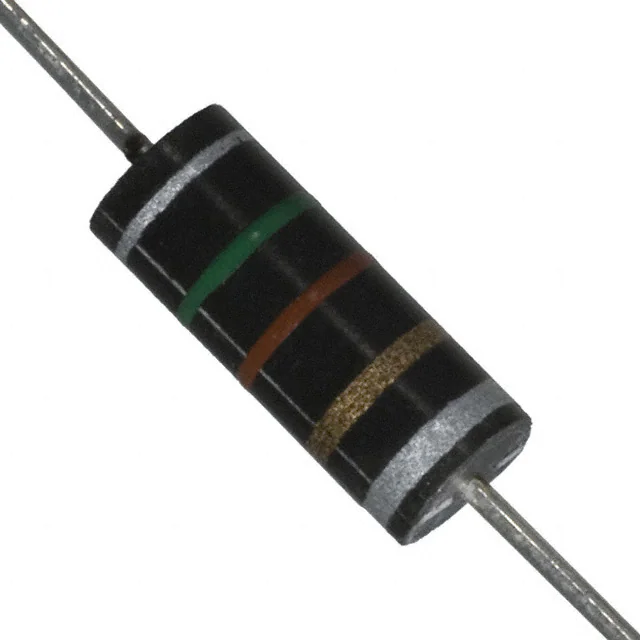

9250A-151-RCFIXED IND 150NH 1.47A 37 MOHM TH |
930 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 150 nH | ±10% | 1.47 A | 1.47A | Shielded | 37mOhm Max | 51 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
PE-53602NLTFIXED IND 29.7UH 1.4A 166MOHM SM |
600 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 29.7 µH | - | 1.4 A | - | Unshielded | 166mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
PID75-650MDIFFERENTIAL MODE INDUCTOR 2X65 |
660 |
|
Datasheet |
PID*-560M/650M | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 65 µH | ±20% | 560 mA | 750mA | Shielded | 530mOhm | - | - | - | -40°C ~ 150°C | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.189" (4.80mm) |
|
|
74458268WE-PD4 SMT POWER INDUCTOR 680 UH |
585 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 680 µH | ±20% | 720 mA | 1.3A | Shielded | 1.1Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.280" (7.10mm) |
|
|
74457006WE-PD4 SMT POWER INDUCTOR 0.47 U |
500 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±20% | 18 A | 38A | Unshielded | 2mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
74457215WE-PD4 SMT POWER INDUCTOR 150 UH |
471 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 150 µH | ±10% | 1.5 A | 2.6A | Unshielded | 268mOhm Max | - | 4.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
