Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCTA20161B-R56MS6IND SMD 0.56UH AUTO GRADE CHOKE |
1,525 |
|
Datasheet |
VCTA20161B | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 3.6 A | 3.8A | Unshielded | 35mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
VCTA20161B-R33MS6IND SMD 0.33UH AUTO GRADE CHOKE |
1,225 |
|
Datasheet |
VCTA20161B | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 4.2 A | 5.1A | Unshielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
VCTD20161B-R47MS6IND SMD 0.47UH AUTO GRADE CHOKE |
1,090 |
|
Datasheet |
VCTD20161B | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 5.1 A | 5.4A | Unshielded | 22mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|

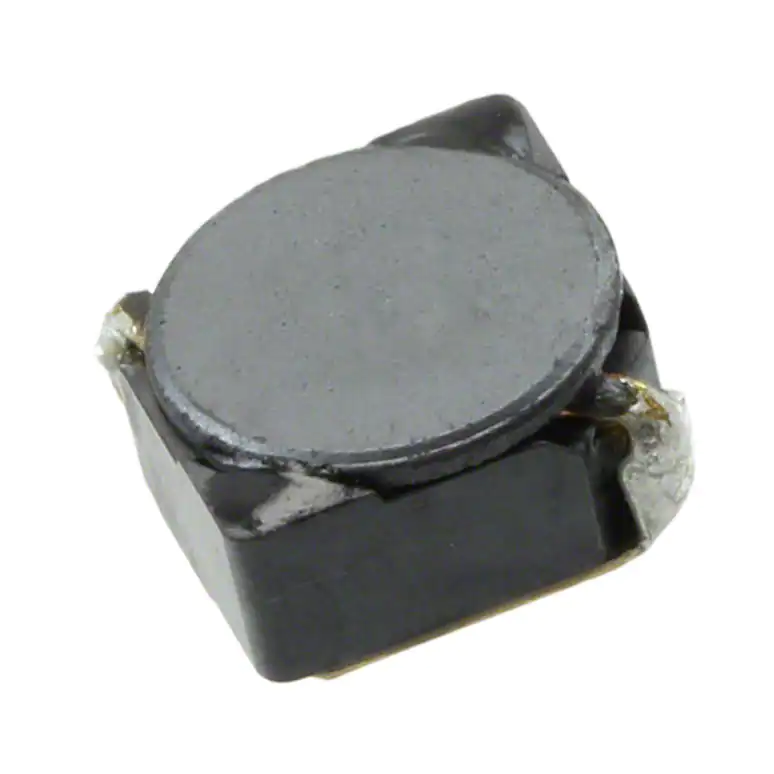

PA4300.684NLTFIXED IND 680UH 165MA 3.77OHM SM |
12,000 |
|
Datasheet |
PA4300.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 165 mA | - | Shielded | 3.77Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.118" (3.00mm) |
|
|
PM5402.331NLTFIXED IND 330NH 10A 8.6MOHM SMD |
3,000 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 10 A | 18A | Shielded | 8.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.332NLTFIXED IND 3.3UH 3.5A 76MOHM SMD |
2,650 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3.5 A | 4A | Shielded | 76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
BPSL00130952331M00INDUCTOR POWER |
2,250 |
|
Datasheet |
BPSL | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 600 mA | 600mA | Unshielded | 1.02Ohm Max | - | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
PA4341.332NLTFIXED IND 3.3UH 6A 30 MOHM SMD |
2,011 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PM5402.471NLTFIXED IND 470NH 8A 14 MOHM SMD |
1,850 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 8 A | 12A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1212ABEVR10M01FIXED IND SMD |
3,420 |
|
Datasheet |
IHLP-1212AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 100 nH | ±20% | 10.48 A | 18.92A | Shielded | 9.61mOhm Max | - | 419MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
|
PA4345.222ANLTIND MOLDED POWDER 6.0X5.4X3.0 MA |
2,996 |
|
Datasheet |
PA4345.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 6 A | 5A | Shielded | 34mOhm Max | - | 33MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
|
PM5402.681NLTFIXED IND 680NH 7A 19 MOHM SMD |
2,985 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 7 A | 10A | Shielded | 19mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
PM5402.222NLTFIXED IND 2.2UH 4A 61 MOHM SMD |
2,981 |
|
Datasheet |
PM5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 4 A | 6A | Shielded | 61mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
SDR1105-820KLFIXED IND 82UH 1.6A 300 MOHM SMD |
1,600 |
|
Datasheet |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.6 A | 3A | Unshielded | 300mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|
PCMB042T-R10MSFIXED IND 100NH 12A 4 MOHM SMD |
1,532 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±20% | 12 A | 22A | Unshielded | 4mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.163" L x 0.157" W (4.15mm x 4.00mm) | 0.071" (1.80mm) |
|
SRU1048-471YFIXED IND 470UH SMD |
1,200 |
|
Datasheet |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±30% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
PCMB042T-2R2MSFIXED IND 2.2UH 3A 58 MOHM SMD |
1,180 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 3 A | 5A | Unshielded | 58mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.163" L x 0.157" W (4.15mm x 4.00mm) | 0.071" (1.80mm) |
|
SBCP-47HY560BFIXED IND 56UH 650MA 350 MOHM TH |
6,481 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 650 mA | 660mA | Unshielded | 350mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
F1A1-303015-220MFIXED IND 22.0UH 300MA 1250 MOHM |
4,000 |
|
Datasheet |
F1A1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 22 µH | ±20% | 300 mA | 250mA | Shielded | 1.25kOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
F1A1-303015-6R8NFIXED IND 6.8UH 770MA 416 MOHM |
4,000 |
|
Datasheet |
F1A1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 6.8 µH | ±30% | 770 mA | 520mA | Shielded | 416Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
