Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2-2176641-7FIXED IND 4.7MH 90MA 61OHM SMD |
5,000 |
|
Datasheet |
3627, Sigma Inductors | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 mH | ±20% | 90 mA | - | Unshielded | 61Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 2220 | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
1-2176641-1FIXED IND 10UH 2A 0.13OHM SMD |
4,990 |
|
Datasheet |
3627, Sigma Inductors | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 2 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2220 | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
F1A2-464612-4R7NFIXED IND 4.7UH 1.35A 145 MOHM |
4,000 |
|
Datasheet |
F1A2-4646 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 1.35 A | 1.2A | Shielded | 145mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.047" (1.20mm) |
|
|
F1A2-464612-100MFIXED IND 10.0UH 1.10A 240 MOHM |
4,000 |
|
Datasheet |
F1A2-4646 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.1 A | 700mA | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.047" (1.20mm) |
|
|
F1A2-303015-3R3NFIXED IND 3.3UH 1.30A 130 MOHM |
3,995 |
|
Datasheet |
F1A2-3030 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 1.3 A | 1.2A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
F1A2-303010-180MFIXED IND 18.0UH 450MA 735 MOHM |
3,991 |
|
Datasheet |
F1A2-3030 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 450 mA | 300mA | Shielded | 735mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
F1A2-303015-470MFIXED IND 47.0UH 380MA 1475 MOHM |
3,875 |
|
Datasheet |
F1A2-3030 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 380 mA | 320mA | Shielded | 1.475Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
PCA1V3230-100-RIND 10.0UH 1.1A SMT 2PAD |
2,318 |
|
Datasheet |
PCA1V3230 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.13 A | 1.1A | Unshielded | 340mOhm Max | - | 95MHz | AEC-Q200 | -55°C ~ 140°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" (3.20mm) |
|
|
2176641-3FIXED IND 470NH 4.8A 0.0182OHM |
2,000 |
|
Datasheet |
3627, Sigma Inductors | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±20% | 4.8 A | - | Unshielded | 18.2mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2220 | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
ASPI-2510-6R8M-T2FIXED IND 6.8UH 710MA 443MOHM SM |
1,900 |
|
Datasheet |
ASPI-2510 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 710 mA | 680mA | Shielded | 443mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LPA0618-501KLFIXED IND 500UH 250MA 2 OHM TH |
1,126 |
|
Datasheet |
LPA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 250 mA | - | Unshielded | 2Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.236" Dia x 0.984" L (6.00mm x 25.00mm) | - |
|

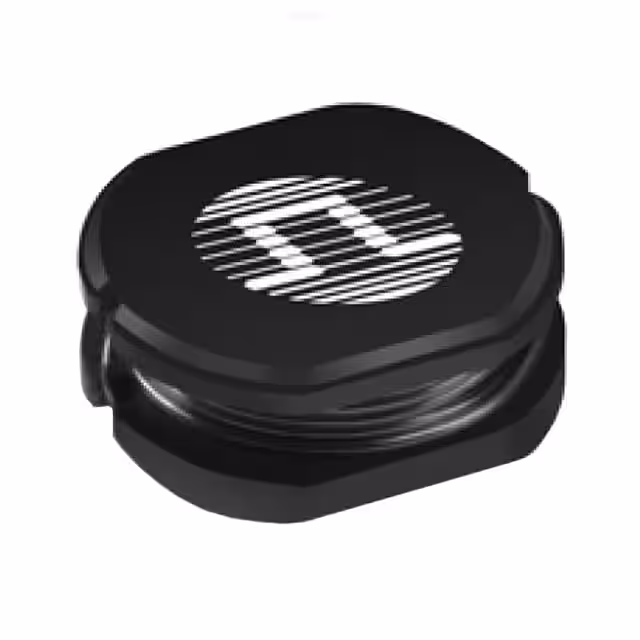

PF0581.103NLFIXED IND 10UH 2.5A 43 MOHM SMD |
2,690 |
|
Datasheet |
PF0581NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±10% | 2.5 A | 2.5A | Unshielded | 43mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
|
PF0581.223NLFIXED IND 22UH 1.7A 84 MOHM SMD |
2,690 |
|
Datasheet |
PF0581NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±10% | 1.7 A | 1.7A | Unshielded | 84mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
PA5447.332NLTFIXED IND 3.3UH 5A 46 MOHM SMD |
7,690 |
|
Datasheet |
PA5447.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 5 A | 9A | Shielded | 46mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
SDE1006A-271KFIXED IND 270UH 750MA 970MOHM SM |
3,200 |
|
Datasheet |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 750 mA | 850mA | Unshielded | 970mOhm Max | - | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-3R9MFIXED IND 3.9UH 5.2A 27 MOHM SMD |
3,197 |
|
Datasheet |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 5.2 A | 5.7A | Unshielded | 27mOhm Max | - | 40.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-2R2MFIXED IND 2.2UH 6A 21 MOHM SMD |
3,190 |
|
Datasheet |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6 A | 6.6A | Unshielded | 21mOhm Max | - | 57.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
SDE1006A-471KFIXED IND 470UH 600MA 1.48OHM SM |
3,181 |
|
Datasheet |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 600 mA | 650mA | Unshielded | 1.48Ohm Max | - | 3.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
EXL1V0505-5R6-RFIXED IND 5.6UH 7.2A 24.2MOHM SM |
2,498 |
|
Datasheet |
EXL1V0505 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 7.2 A | 7.2A | Shielded | 24.2mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
LMLP05A6M220DTASFIXED IND 22UH 1.5A 390MOHM SMD |
2,121 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 1.5 A | 1.8A | Shielded | 390mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
