Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMS322512ALM-R15MTAAFIXED IND 150NH 8A 0.009OHM SMD |
3,397 |
|
Datasheet |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 150 nH | ±20% | 8 A | 12A | Shielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TMS322512ALM-6R8MTAAFIXED IND 6.8UH 1.4A 0.26OHM SMD |
3,255 |
|
Datasheet |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 6.8 µH | ±20% | 1.4 A | 1.8A | Shielded | 260mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
TMS322512ALM-R33MTAAFIXED IND 330NH 6A 0.015OHM SMD |
3,015 |
|
Datasheet |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 330 nH | ±20% | 6 A | 8.6A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
AMPLA5030Q-1R5MTFIXED IND 1.5UH 6A 25 MOHM SMD |
2,000 |
|
Datasheet |
AMPLA5030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 6 A | 10A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
TMS322512ALM-R47MTAAFIXED IND 470NH 5.3A 0.021OHM SM |
1,718 |
|
Datasheet |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 5.3 A | 6.9A | Shielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SDR7045-102KFIXED IND 1MH 220MA 4 OHM SMD |
2,983 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 220 mA | 200mA | Unshielded | 4Ohm Max | 48 @ 252kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
ISC1210ER1R8KFIXED IND 1.8UH 350MA 850MOHM SM |
2,000 |
|
Datasheet |
ISC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±10% | 350 mA | - | Shielded | 850mOhm Max | 30 @ 7.96MHz | 85MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
ISC1210ER8R2KFIXED IND 8.2UH 195MA 1.65OHM SM |
2,000 |
|
Datasheet |
ISC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±10% | 195 mA | - | Shielded | 1.65Ohm Max | 30 @ 7.96MHz | 35MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
ASPI-4020HI-3R3M-TFIXED IND 3.3UH 2.5A 87 MOHM SMD |
29,411 |
|
Datasheet |
ASPI-4020HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 3.3 µH | ±20% | 2.5 A | 4A | Shielded | 87mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ASPI-4020HI-2R2M-TFIXED IND 2.2UH 4.5A 58 MOHM SMD |
27,853 |
|
Datasheet |
ASPI-4020HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 2.2 µH | ±20% | 4.5 A | 5A | Shielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
BPDN000404234R7Y00INDUCTOR POWER |
5,000 |
|
Datasheet |
BPDx | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 1.9 A | 1.3A | Shielded | 68.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.091" (2.30mm) |
|
B82432T1392K000FIXED IND 3.9UH 850MA 200MOHM SM |
4,550 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 850 mA | - | Unshielded | 200mOhm Max | 10 @ 7.96MHz | 45MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

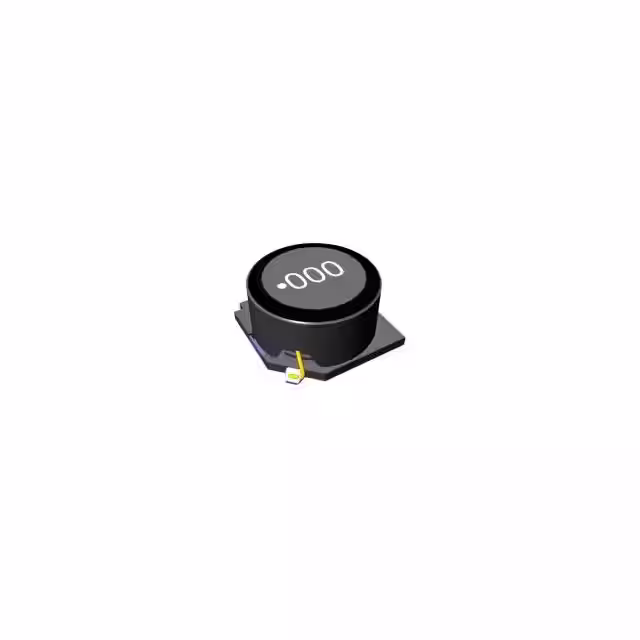

LSRNJ10145GL471MNYFIXED IND 470UH 520MA 1.236 OHM |
3,980 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 520 mA | 610mA | Shielded | 1.236Ohm Max | - | 2.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
EXL1V0503-3R3-RFIXED IND 3.3UH 8.1A 23.1MOHM SM |
3,976 |
|
Datasheet |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 8.1 A | 8.7A | Shielded | 23.1mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
|
F1C1-201208-R47MFIXED IND 0.47UH 3.3A 50 MOHM |
3,000 |
|
Datasheet |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 3.3 A | 4.6A | Shielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
F1C1-201208-R33MFIXED IND 0.33UH 4.0A 45 MOHM |
3,000 |
|
Datasheet |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 4 A | 4.8A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
F1C1-201210-R10MFIXED IND 0.10UH 7.0A 13 MOHM |
3,000 |
|
Datasheet |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 7 A | 8A | Shielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
BPSC000303162R2T00FIXED IND 2.2UH 1.6A 94 MOHM SMD |
2,988 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.6 A | 1.2A | Shielded | 94mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.061" (1.55mm) |
|
B82432T1823K000FIXED IND 82UH 220MA 3 OHM SMD |
2,381 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 220 mA | - | Unshielded | 3Ohm Max | 10 @ 2.52MHz | 7MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
EXL1V0503-R16-RFIXED IND 160NH 22.2A 2.33 MOHM |
2,000 |
|
Datasheet |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 160 nH | ±20% | 22.2 A | 32A | Shielded | 2.33mOhm Max | - | 140MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
