Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LAXHG6060YEL471MMRINDUCTOR WIRE WOUND 470UH SMD |
2,900 |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 380 mA | 450mA | Unshielded | 2.76Ohm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LAXHG6060YEL1R0NMRINDUCTOR WIRE WOUND 1UH SMD |
2,325 |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 6.2 A | 13.5A | Unshielded | 13mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LAXHG6060YEL2R2NMRINDUCTOR WIRE WOUND 2.2UH SMD |
2,262 |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 4.4 A | 8.5A | Unshielded | 23mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LSRNJ10145GL1R0NNYFIXED IND 1UH 8.9A 5.8 MOHM SMD |
2,000 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 8.9 A | 12.54A | Shielded | 5.9mOhm Max | - | 116MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL101MNYFIXED IND 100UH 1.25A 240MOHM SM |
1,999 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.25 A | 1.29A | Shielded | 240mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL152MNYFIXED IND 1.5MH 270MA 4.44OHM SM |
1,999 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 mH | ±20% | 270 mA | 360mA | Shielded | 4.44Ohm Max | - | 1.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL150MNYFIXED IND 15UH 3A 45.6 MOHM SMD |
1,990 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3 A | 3.44A | Shielded | 45.8mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL221MNYFIXED IND 220UH 780MA 582MOHM SM |
1,985 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 780 mA | 910mA | Shielded | 582mOhm Max | - | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL2R2NNYFIXED IND 2.2UH 6.64A 10MOHM SMD |
1,970 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 6.64 A | 8.91A | Shielded | 10.2mOhm Max | - | 43.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL331MNYFIXED IND 330UH 640MA 840MOHM SM |
1,950 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 640 mA | 710mA | Shielded | 840mOhm Max | - | 3.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|

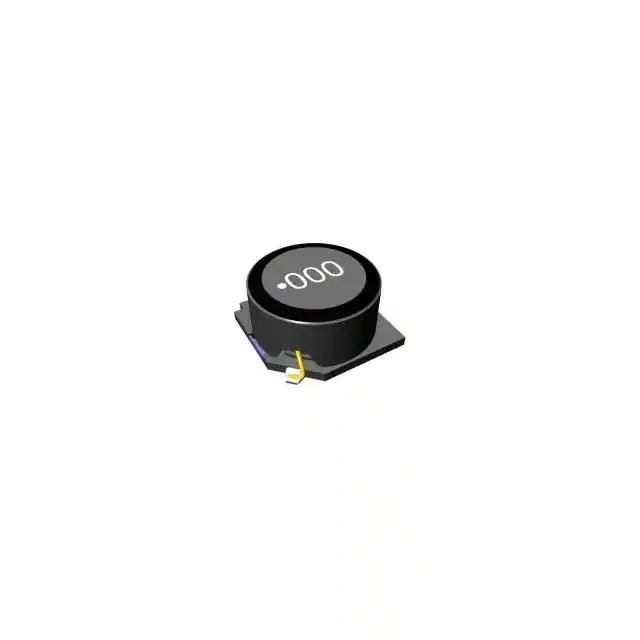

LSRNJ10145GL330MNYFIXED IND 33UH 2.01A 98.4MOHM SM |
1,945 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 2.01 A | 2.36A | Shielded | 97.8mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL470MNYFIXED IND 47UH 1.8A 120 MOHM SMD |
1,879 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.8 A | 1.85A | Shielded | 120mOhm Max | - | 9.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL4R7NNYFIXED IND 4.7UH 5.03A 17MOHM SMD |
1,740 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 5.03 A | 6.69A | Shielded | 17.3mOhm Max | - | 27.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL102MNYFIXED IND 1MH 320MA 3.096OHM SMD |
1,528 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±20% | 320 mA | 410mA | Shielded | 3.1Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
LAXHG6060YEL220MMRINDUCTOR WIRE WOUND 22UH SMD |
1,500 |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 2.5A | Unshielded | 132mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SDR1005-221MLFIXED IND 220UH 700MA 780MOHM SM |
1,200 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 800mA | Unshielded | 780mOhm Max | 50 @ 68kHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
|
SDR1005-R68MLFIXED IND 680NH 8.5A 6 MOHM SMD |
1,200 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 8.5 A | 9.5A | Unshielded | 6mOhm Max | 26 @ 7.96MHz | 160MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
|
LAXHG6060YEL151MMRINDUCTOR WIRE WOUND 150UH SMD |
1,031 |
|
Datasheet |
LAXH | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 760 mA | 830mA | Unshielded | 816mOhm Max | - | 3.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SRU3028-101YFIXED IND 100UH 190MA 2.2OHM SMD |
1,200 |
|
Datasheet |
SRU3028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 190 mA | 210mA | Shielded | 2.2Ohm | 20 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.118" (3.00mm) |
|
B82432T1562K000FIXED IND 5.6UH 750MA 260MOHM SM |
5,000 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 750 mA | - | Unshielded | 260mOhm Max | 10 @ 7.96MHz | 38MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
