FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI4451DY-T1-GE3MOSFET P-CH 12V 10A 8SO Vishay Siliconix |
0 | - |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 10A (Ta) | 1.8V, 4.5V | 8.25mOhm @ 14A, 4.5V | 800mV @ 850µA | 120 nC @ 4.5 V | ±8V | - | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IRF510LMOSFET N-CH 100V 5.6A TO262-3 Vishay Siliconix |
0 | - |
|
Datasheet |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 5.6A (Tc) | - | 540mOhm @ 3.4A, 10V | 4V @ 250µA | 8.3 nC @ 10 V | - | 180 pF @ 25 V | - | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262-3 |
|
IRFB9N30AMOSFET N-CH 300V 9.3A TO220AB Vishay Siliconix |
0 | - |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 9.3A (Tc) | 10V | 450mOhm @ 5.6A, 10V | 4V @ 250µA | 33 nC @ 10 V | ±30V | 920 pF @ 25 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
SI7390DP-T1-GE3MOSFET N-CH 30V 9A PPAK SO-8 Vishay Siliconix |
0 | - |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 9.5mOhm @ 15A, 10V | 3V @ 250µA | 15 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SQM50N04-4M0L_GE3MOSFET N-CHANNEL 40V 50A TO263 Vishay Siliconix |
0 | - |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 4mOhm @ 20A, 10V | 2.5V @ 250µA | 130 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|

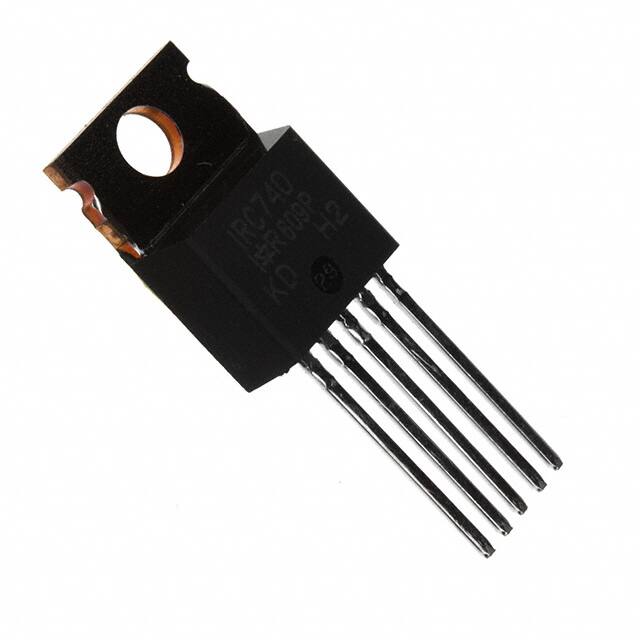

IRC740PBFMOSFET N-CH 400V 10A TO220-5 Vishay Siliconix |
0 | - |
|
Datasheet |
HEXFET® | TO-220-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 10A (Tc) | 10V | 550mOhm @ 6A, 10V | 4V @ 250µA | 66 nC @ 10 V | ±20V | 1200 pF @ 25 V | Current Sensing | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
IRF9530STRRPBFMOSFET P-CH 100V 12A D2PAK Vishay Siliconix |
0 | - |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Tc) | 10V | 300mOhm @ 7.2A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 860 pF @ 25 V | - | 3.7W (Ta), 88W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
SIA443DJ-T1-E3MOSFET P-CH 20V 9A PPAK SC70-6 Vishay Siliconix |
0 | - |
|
Datasheet |
TrenchFET® | PowerPAK® SC-70-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 9A (Tc) | 1.8V, 4.5V | 45mOhm @ 4.7A, 4.5V | 1V @ 250µA | 25 nC @ 8 V | ±8V | 750 pF @ 10 V | - | 3.3W (Ta), 15W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|
SIA810DJ-T1-E3MOSFET N-CH 20V 4.5A PPAK SC70-6 Vishay Siliconix |
0 | - |
|
Datasheet |
LITTLE FOOT® | PowerPAK® SC-70-6 Dual | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Tc) | 1.8V, 4.5V | 53mOhm @ 3.7A, 4.5V | 1V @ 250µA | 11.5 nC @ 8 V | ±8V | 400 pF @ 10 V | Schottky Diode (Isolated) | 1.9W (Ta), 6.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 Dual |
|
SI7302DN-T1-GE3MOSFET N-CH 220V 8.4A PPAK1212-8 Vishay Siliconix |
0 | - |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 220 V | 8.4A (Tc) | 4.5V, 10V | 320mOhm @ 2.3A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±20V | 645 pF @ 15 V | - | 3.8W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
