FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
STD6NK50ZT4MOSFET N-CH 500V 5.6A DPAK |
2,365 |
|
Datasheet |
SuperMESH™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 500 V | 5.6A (Tc) | 10V | 1.2Ohm @ 2.8A, 10V | 4.5V @ 50µA | 24.6 nC @ 10 V | ±30V | 690 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
R6009JNXC7GMOSFET N-CH 600V 9A TO220FM |
1,889 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 15V | 585mOhm @ 4.5A, 15V | 7V @ 1.38mA | 22 nC @ 15 V | ±30V | 645 pF @ 100 V | - | 53W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
FCD900N60ZMOSFET N-CH 600V 4.5A TO252 |
1,852 |
|
Datasheet |
SuperFET® II | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.5A (Tc) | 10V | 900mOhm @ 2.3A, 10V | 3.5V @ 250µA | 17 nC @ 10 V | ±20V | 720 pF @ 25 V | - | 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
NP60N055VUK-E1-AYMOSFET N-CH 55V 60A TO252-3 |
7,973 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 60A (Tc) | 10V | 5.5mOhm @ 30A, 10V | 4V @ 253µA | 63 nC @ 10 V | ±20V | 3750 pF @ 25 V | - | 1.2W (Ta), 105W (Tc) | 175°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
BUK7613-60E,118MOSFET N-CH 60V 58A D2PAK |
3,798 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 58A (Tc) | 10V | 13mOhm @ 15A, 10V | 4V @ 1mA | 22.9 nC @ 10 V | ±20V | 1730 pF @ 25 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
STF18N65M2MOSFET N-CH 650V 12A TO220FP |
3,664 |
|
Datasheet |
MDmesh™ M2 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 330mOhm @ 6A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±25V | 770 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
RD3G500GNTLMOSFET N-CH 40V 50A TO252 |
2,268 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 4.9mOhm @ 50A, 10V | 2.5V @ 1mA | 31 nC @ 10 V | ±20V | 22800 pF @ 20 V | - | 35W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 |
|
|
R8003KNXC7G800V 3A, TO-220FM, HIGH-SPEED SW |
457 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 3A (Ta) | 10V | 1.8Ohm @ 1.5A, 10V | 4.5V @ 2mA | 11.5 nC @ 10 V | ±20V | 300 pF @ 100 V | - | 36W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
SQJ128ELP-T1_GE3AUTOMOTIVE N-CHANNEL 30 V (D-S) |
9,000 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 437A (Tc) | 4.5V, 10V | 1.15mOhm @ 15A, 10V | 2.2V @ 250µA | 150 nC @ 10 V | ±20V | 7315 pF @ 25 V | - | 500W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
|
NP60N04VUK-E1-AYMOSFET N-CH 40V 60A TO252 |
4,199 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 60A (Tc) | 10V | 3.85mOhm @ 30A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 3680 pF @ 25 V | - | 1.2W (Ta), 105W (Tc) | 175°C (TJ) | - | - | Surface Mount | TO-252 |
|
DMTH6004LPS-13MOSFET N-CH 60V 22A PWRDI5060 |
2,494 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Ta), 100A (Tc) | 4.5V, 10V | 2.8mOhm @ 25A, 10V | 3V @ 250µA | 96.3 nC @ 10 V | ±20V | 4515 pF @ 30 V | - | 2.6W (Ta), 138W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
CSD17301Q5AMOSFET N-CH 30V 28A/100A 8VSON |
13,359 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 28A (Ta), 100A (Tc) | 3V, 8V | 2.6mOhm @ 25A, 8V | 1.55V @ 250µA | 25 nC @ 4.5 V | +10V, -8V | 3480 pF @ 15 V | - | 3.2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
IRFR420TRLPBFMOSFET N-CH 500V 2.4A DPAK |
2,746 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.4A (Tc) | 10V | 3Ohm @ 1.4A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 360 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|

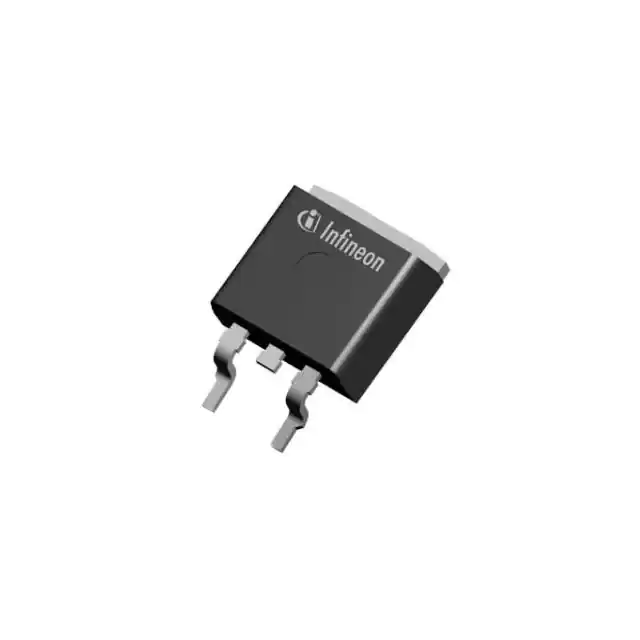

IPB19DP10NMATMA1TRENCH >=100V PG-TO263-3 |
1,815 |
|
Datasheet |
OptiMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 2.9A (Ta), 13.8A (Tc) | 10V | 185mOhm @ 12A, 10V | 4V @ 1.04mA | 45 nC @ 10 V | ±20V | 2000 pF @ 50 V | - | 3.8W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
NTMFS6H824NT1GT8 80V U8FL |
1,445 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 19A (Ta), 103A (Tc) | 6V, 10V | 4.5mOhm @ 20A, 10V | 4V @ 140µA | 38 nC @ 10 V | ±20V | 2470 pF @ 40 V | - | 3.8W (Ta), 115W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
SQD23N06-31L_GE3MOSFET N-CH 60V 23A TO252 |
3,440 |
|
Datasheet |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 23A (Tc) | 4.5V, 10V | 31mOhm @ 15A, 10V | 2.5V @ 250µA | 24 nC @ 10 V | ±20V | 845 pF @ 25 V | - | 37W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
NVMJS1D7N04CTWGMOSFET N-CH 40V 35A/185A 8LFPAK |
2,918 |
|
Datasheet |
- | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 35A (Ta), 185A (Tc) | 10V | 1.7mOhm @ 50A, 10V | 3.5V @ 130µA | 47 nC @ 10 V | ±20V | 3300 pF @ 25 V | - | 3.8W (Ta), 106W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-LFPAK |
|
SQJ848EP-T1_GE3MOSFET N-CH 40V 47A PPAK SO-8 |
2,644 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 47A (Tc) | 4.5V, 10V | 7.5mOhm @ 10.3A, 10V | 2.5V @ 250µA | 23 nC @ 10 V | ±20V | 2500 pF @ 20 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
|
RRS090P03HZGTBAUTOMOTIVE PCH -30V -9A POWER MO |
1,854 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4V, 10V | 15.4mOhm @ 9A, 10V | 2.5V @ 1mA | 30 nC @ 5 V | ±20V | 3000 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
|
SIRC04DP-T1-GE3MOSFET N-CH 30V 60A PPAK SO-8 |
4,931 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Tc) | 4.5V, 10V | 2.45mOhm @ 15A, 10V | 2.1V @ 250µA | 56 nC @ 10 V | +20V, -16V | 2850 pF @ 15 V | Schottky Diode (Body) | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
