DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P25SMT106TRDIP ROTARY SWITCH P25 7MM LOW |
0 |
|
Datasheet |
P25 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P60A502L508DIP ROTARY SWITCH P60 10MM |
0 |
|
Datasheet |
P60A | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
P60A302L508DIP ROTARY SWITCH P60 10MM |
0 |
|
Datasheet |
P60A | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
P60A501L508DIP ROTARY SWITCH P60 10MM |
0 |
|
Datasheet |
P60A | Bulk | Active | BCD | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
FR01AC16PBSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
ND3KC10BSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Datasheet |
ND3 | Bulk | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.346" (8.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
ND3KC16BSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Datasheet |
ND3 | Bulk | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.346" (8.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
ND3KR16BSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Datasheet |
ND3 | Bulk | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.346" (8.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
PT65327SW ROTARY DIP OCT COMP 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | Octal Complement | 8 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

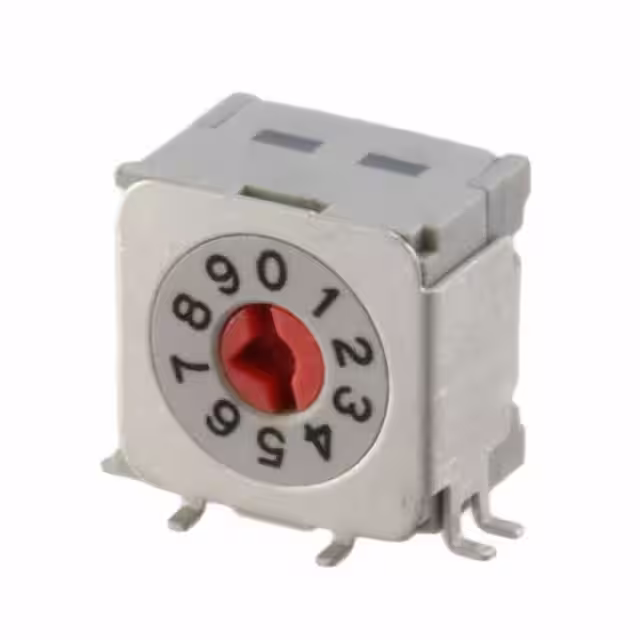

ND3FC10HSW ROTARY DIP BCD COMP 0.1A 5V |
10 |
|
Datasheet |
ND3 | Tray | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
P25SMJ801TRDIP ROTARY SWITCH P25 7MM LOW |
0 |
|
Datasheet |
P25 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Flush, Recessed | - | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P60A503L508DIP ROTARY SWITCH P60 10MM |
0 |
|
Datasheet |
P60A | Bulk | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
P60A606L508DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P60A506L508DIP ROTARY SWITCH P60 10MM |
0 |
|
Datasheet |
P60A | Bulk | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
P60A303L508DIP ROTARY SWITCH P60 10MM |
0 |
|
Datasheet |
P60A | Bulk | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
PT65331SWITCH ROTARY DIP 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | - | - | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

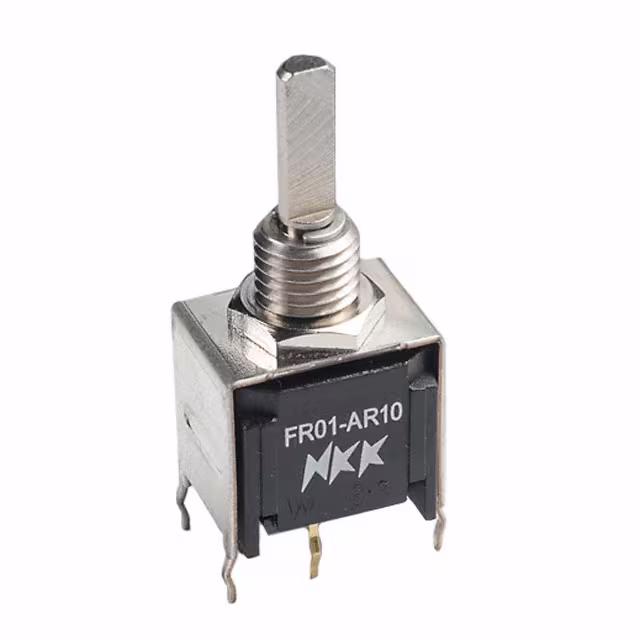

FR01AR10PB-W-SSWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
P25SMT101TRDIP ROTARY SWITCH P60 10MM |
0 |
|
Datasheet |
P25 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P25SMT303TRDIP ROTARY SWITCH P25 7MM LOW |
0 |
|
Datasheet |
P25 | Bulk | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary with Shaft | Flush, Recessed | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
78K02SRATSWITCH SLIDE DIP DPDT 0.15A 30V |
0 |
|
Datasheet |
78 | Tube | Active | DPDT | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
